Configured with FOX 2.0 Performance Series rear shocks. These shocks feature a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, a race-developed high-flow piston design, and application-specific valving. Finished in a long-lasting clear anodized finish and backed by a 1-year manufacturer's warranty.
Overview

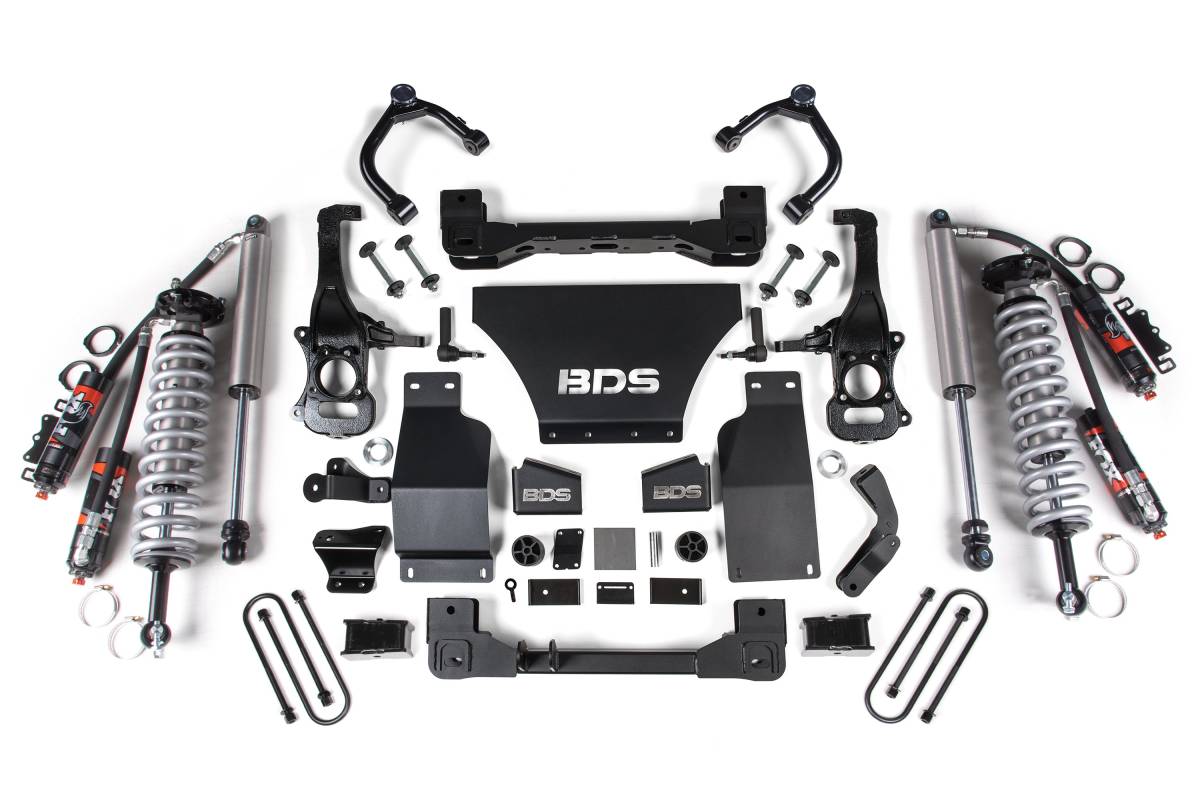

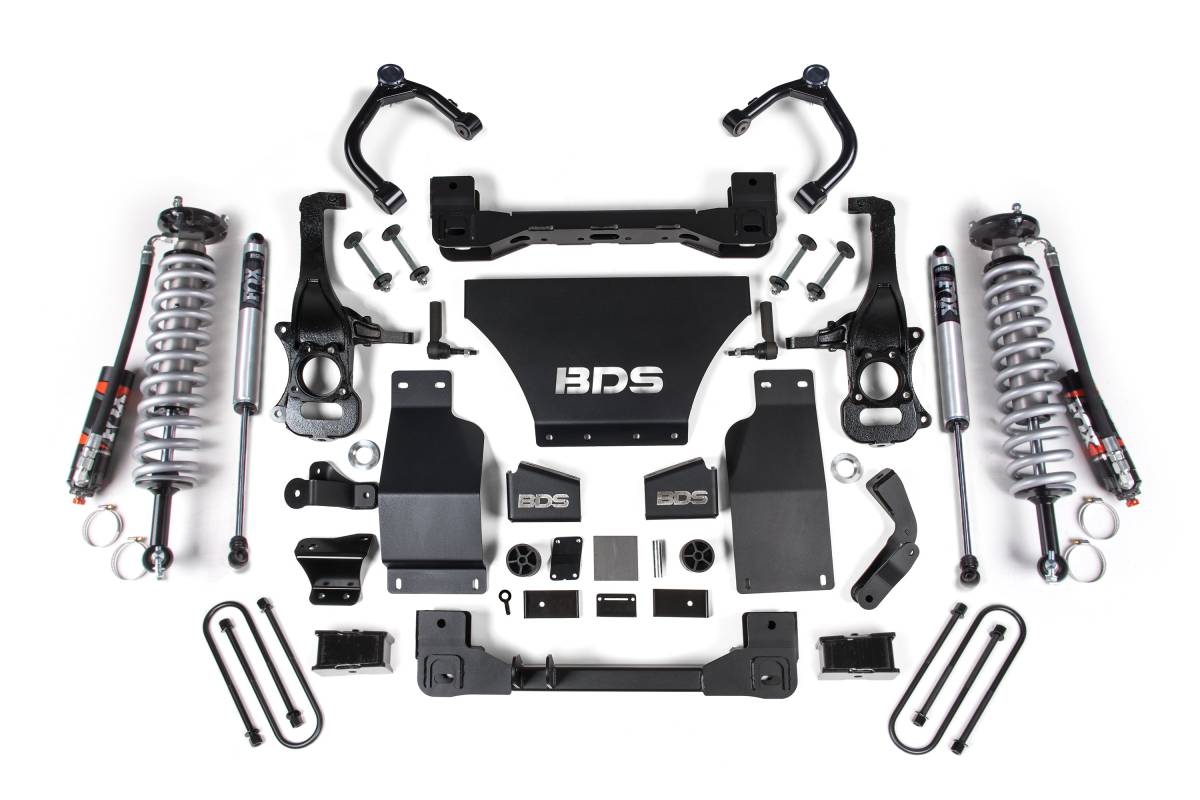

This 2.5-inch suspension lift kit for the Chevy Trail Boss and GMC AT4 1500 (2025–2026) 4WD Gas models is built around FOX 2.5 Performance Elite coil-over shocks up front, delivering increased travel and the ability to absorb rough terrain while maintaining on-road comfort. The kit provides clearance for up to 35-inch tires and includes all hardware and components necessary for a complete installation.
Up front, the kit uses top-mounted strut spacers, upper control arms, high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket, and heavy duty skid plates. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry at the new ride height while maintaining ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all required hardware are also included.
In the rear, a heavy duty lift block replaces the factory block to lift and level the stance while retaining ride quality and load capacity. New U-bolts and brake line brackets are also supplied for the rear.
Features
- FOX 2.5 Performance Elite coil-over shocks designed specifically for increased travel and improved terrain capability
- DSC (Dual Speed Compression) adjuster offers 10 low-speed and 12 high-speed compression levels via a simple twist of one or both knobs
- Black anodized aluminum remote reservoir increases cooling efficiency and adds fluid capacity
- High clearance crossmember design maximizes ground clearance using heavy duty 1/4-inch thick laser cut steel
- HD Upper Control Arms (UCAs) constructed from 1.5-inch OD x .120-wall tubing with indexed ball joint cup for additional down travel and camber adjustment
- UCA frame-end durometer-specific rubber bushings for maintenance-free operation; greaseable ball joints at the wheel end
- UCAs finished in durable black powder coat with billet aluminum dust cap
- CNC-machined ductile iron steering knuckles maintain ESC system compliance
- Replacement tie rod ends correct steering geometry at lifted ride height
- HD skid plate system provides improved off-road protection
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- Heavy duty rear lift block retains stock ride quality and load capacity
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 2.5 inches
- Tire Clearance: Up to 35 inches
- FOX 2.5 Coil-Over Body: 2.5-inch impact extruded aluminum
- FOX 2.5 Shaft: 7/8-inch hard chrome plated heat-treated alloy steel
- FOX 2.5 Reservoir: External design, separates shock oil from high-pressure nitrogen
- Crossmember Material: 1/4-inch thick laser cut steel
- UCA Tubing: 1.5-inch OD x .120-wall
- Shock Warranty: 1-year manufacturer's warranty
- Vehicle Fitment: 2025–2026 Chevy Trail Boss / GMC AT4 1500 4WD Gas
Installation
- Estimated Time: 8 hours
- Difficulty: Difficult
- Tools Required: 36mm Socket, Cut Off Wheel or Equivalent, Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment
Important Notes
- Fits 4X4 models only.
- Will not work with vehicles equipped with ARC.
- Works on Gas models only.
- 2.7L Turbo models must use the Diesel kit for proper skid plate fitment due to a clearance issue with the Intercooler pipe.
