BDS 4 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Chevy Silverado / GMC Sierra 1500 (2025-2026) 4WD | w/ FOX 2.5 Performance Elite Rear Shocks

This configuration includes FOX 2.5 Performance Elite rear shocks. Featuring a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir that separates shock oil from high-pressure nitrogen, and the DSC (Dual Speed Compression) adjuster offering 10 separate low-speed and 12 high-speed compression levels. Fully serviceable and backed by a 1-year manufacturer's warranty.

Overview

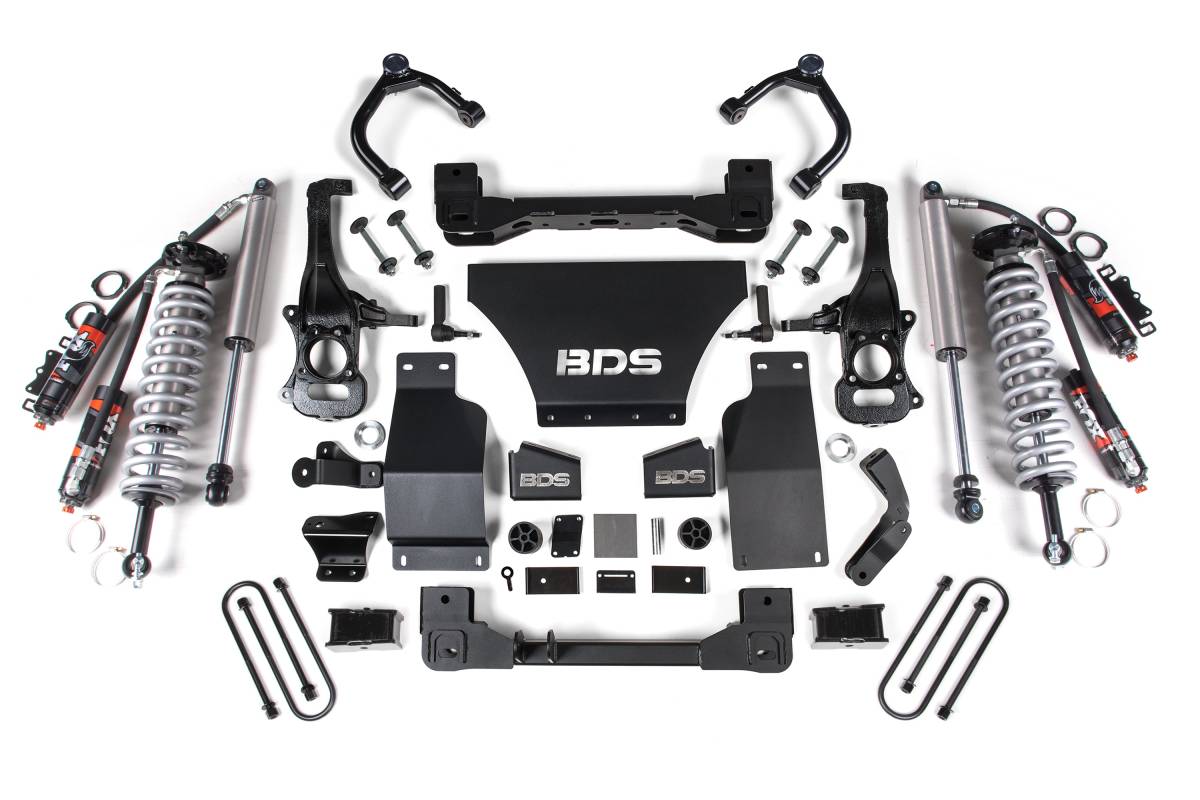

The BDS 4-inch lift kit for the 2025–2026 Chevy Silverado and GMC Sierra 1500 4WD (Gas) is built around FOX 2.5 Performance Elite coil-over shocks up front, delivering increased travel and the ability to absorb the roughest terrain while maintaining smooth on-road comfort. The kit provides clearance for up to 33-inch tires and addresses suspension and steering geometry at the new ride height for proper on-road handling. Up front, the system uses high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket, CNC-machined ductile iron steering knuckles, replacement tie rod ends, heavy duty skid plates, sway bar drops, bump stop extensions, brake line brackets, and CV spacers. In the rear, a heavy duty lift block replaces the stock block to lift and level the stance while retaining ride quality and load capacity, complemented by new U-bolts and brake line brackets.

Features

• FOX 2.5 Performance Elite coil-over shocks up front designed specifically for increased travel and off-road capability
• DSC (Dual Speed Compression) adjuster with 10 low-speed and 12 high-speed compression levels for precise tuning
• High clearance crossmember design maximizes ground clearance with 1/4-inch thick laser cut steel construction
• Paired front skid plate system bolts together to create a rigid subframe with added off-road protection
• CNC-machined ductile cast iron steering knuckles with replacement tie rod ends to maintain steering angles and ESC compatibility
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Heavy duty rear lift block retains ride quality and load capacity
• FOX rear shocks (variant-dependent) for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 33 inches
• Front Shocks: FOX 2.5 Performance Elite coil-over — 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC adjuster, black anodized aluminum reservoir
• Crossmember thickness: 1/4-inch laser cut steel, high-arched design
• Steering knuckles: CNC-machined ductile cast iron
• Skid plates: Heavy duty, bolt-together subframe design
• Rear block: Heavy duty lift block (replaces OEM block)
• Includes: U-bolts, brake line brackets, sway bar drops, bump stop extensions, CV spacers, and all required hardware
• Rear Shock Option: FOX 2.5 Performance Elite or FOX 2.0 Performance Series (see variant)

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: 36mm Socket, Cut Off Wheel or Equivalent, Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment

Important Notes

• Requires frame bracket modification.
• Will not fit MagneRide / ARC equipped models.
• Factory 17-inch and 18-inch wheels cannot be reinstalled due to tie rod end interference; stock 20-inch wheels can be reinstalled.
• 17-inch wheels with 4.5-inch backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
• Will NOT work with TrailBoss or AT4 models.
• 2.7L Turbo models must use Diesel kit for proper skid plate fitment due to clearance issue with intercooler pipe.
• This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.
• If equipped with a mono-leaf rear spring, please use part #UBT4064 (Qty. 4 required).
