Configured with NX2 Nitro Series rear shocks and a strut spacer front setup. NX2 Nitro shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish for long-lasting durability.
Overview

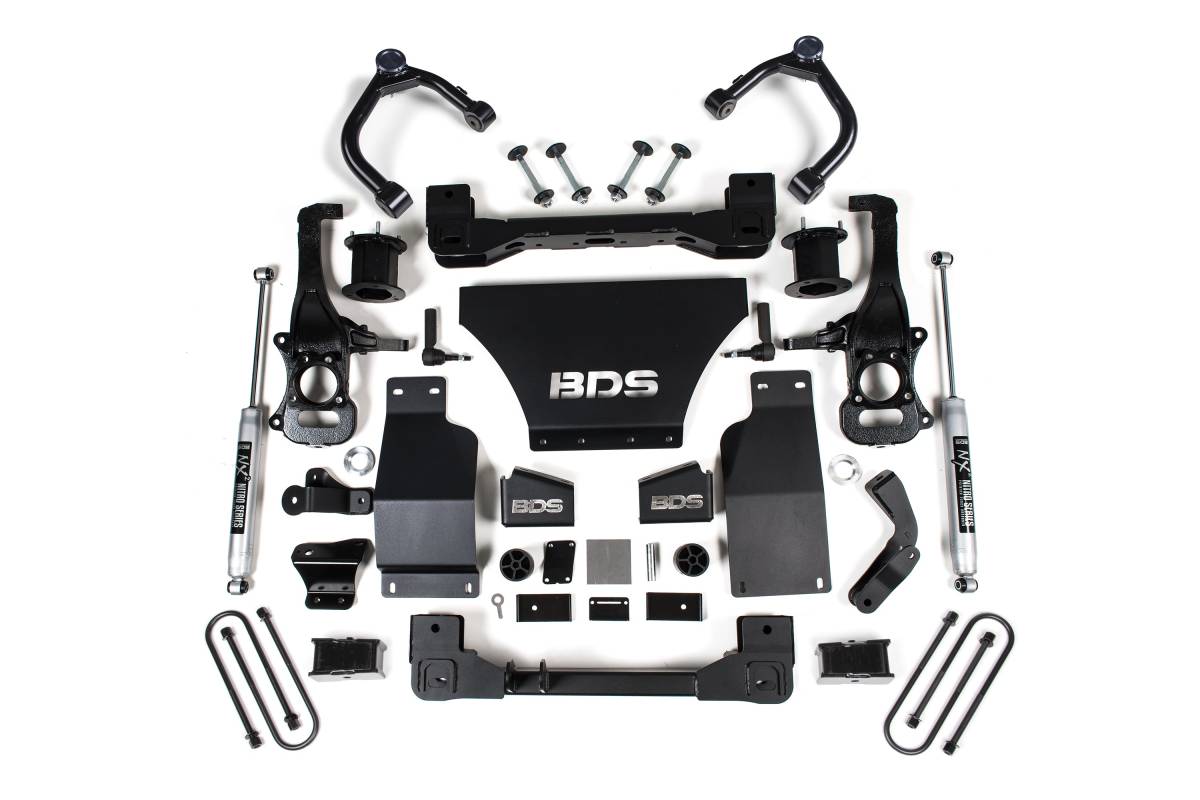

BDS Suspension's 4-inch lift kit is engineered to improve the stance, performance, and capability of the 2025–2026 Chevy Silverado 1500 and GMC Sierra 1500 4WD Gas trucks. The kit provides clearance for up to 33-inch tires and includes all components necessary for a comprehensive front and rear suspension lift. Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates for off-road protection. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry at the new ride height while maintaining ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all required hardware are also included. In the rear, a heavy-duty lift block replaces the factory block to lift and level the stance while retaining ride quality and load capacity, along with new U-bolts and brake line brackets.
Features
- High-clearance crossmember design maximizes ground clearance
- Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
- HD skid plate system provides improved off-road protection
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- Heavy-duty rear lift block retains factory ride quality and load capacity
- Factory Protection Plus drivetrain warranty included
- Includes sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all required hardware
- Provides clearance for up to 33-inch tires
Specifications
- Lift Height: 4 inches
- Front Lift Method: Top-mounted strut spacers with high-arched crossmembers
- Rear Lift Method: Heavy-duty lift block
- Crossmember material: 1/4-inch thick steel, high-arch design
- Steering knuckles: CNC-machined ductile iron
- Compatible tire size: Up to 33 inches
- Fits: 2025–2026 Chevy Silverado 1500 and GMC Sierra 1500 4WD Gas models
Installation
- Estimated Time: 8 hours
- Difficulty: Difficult
- Tools Required: 36mm Socket, Cut Off Wheel or Equivalent, Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment
Important Notes
- Fits 4X4 models only.
- Does not work with models equipped with ARC.
- Does not work with Denali, High Country, ZR2, or AT4X models.
- Works on Gas models only.
- 2.7L Turbo models must use the Diesel kit for proper skid plate fitment due to clearance issues with the Intercooler pipe.
- If equipped with a mono-leaf rear spring, please use part #UBT4064.
