This configuration includes FOX 2.0 Performance Series rear shocks. The FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a clear anodized finish. Includes a 1-year manufacturer's warranty.
Overview

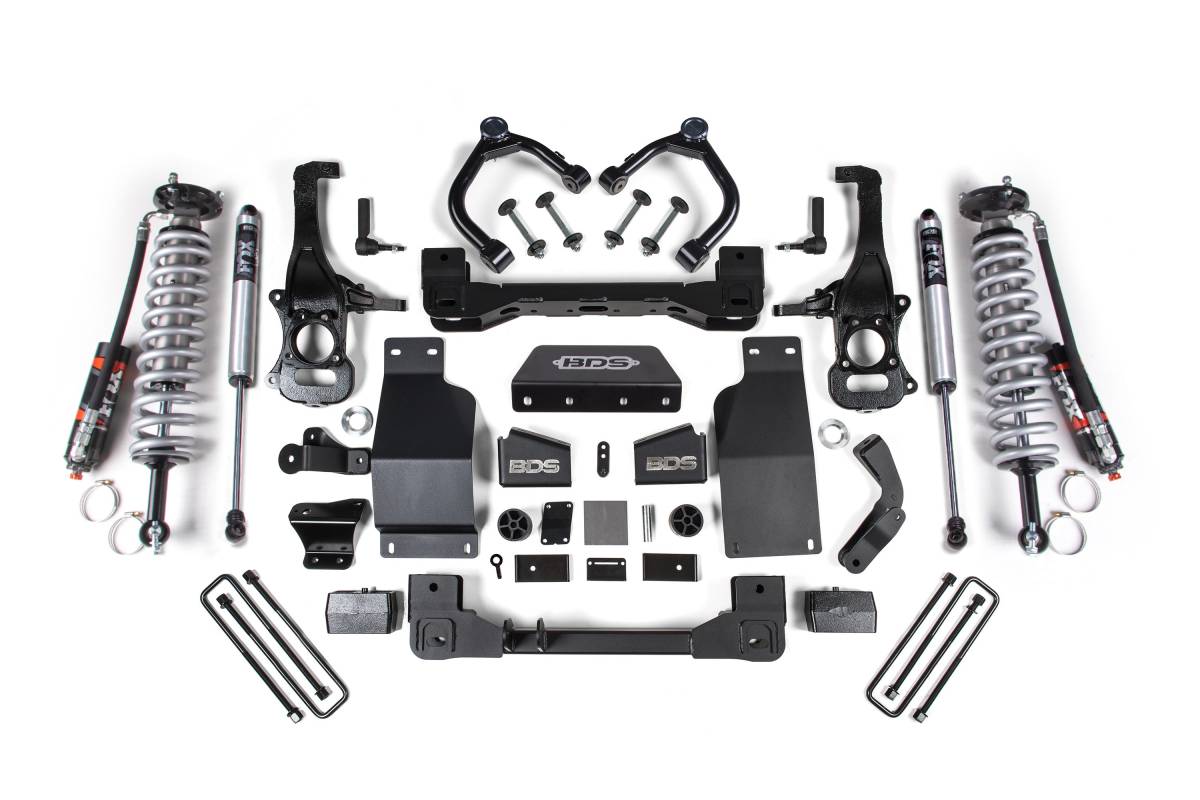

The BDS 4-inch lift kit for 2019–2024 Chevy Silverado and GMC Sierra 1500 4WD Diesel models is built around FOX 2.5 Performance Elite coil-over shocks up front, delivering improved stance, performance, and capability with clearance for up to 33-inch tires. This kit features a high-clearance front suspension design that improves ground clearance, strength, and off-road protection while correcting suspension and steering geometry for proper on-road handling. Up front, the kit uses FOX 2.5 Performance Elite coil-over shocks, high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket system, heavy duty skid plates, CNC-machined ductile iron steering knuckles, and replacement tie rod ends. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all required hardware are also included. In the rear, a heavy duty lift block replaces the stock block to lift and level the stance while retaining ride quality and load capacity, along with new U-bolts and brake line brackets. Rear shock options are available at time of purchase.
Features
- FOX 2.5 Performance Elite coil-over shocks with DSC Adjuster for improved ride quality, performance, and capability
- High clearance crossmember design maximizes ground clearance
- Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system for improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 4 inches
- Tire Clearance: Up to 33 inches
- Front Shocks: FOX 2.5 Performance Elite coil-overs with remote reservoir and DSC adjuster
- FOX 2.5 coil-over body: 2.5-inch impact extruded aluminum
- FOX 2.5 shaft: 7/8-inch hard chrome plated heat-treated alloy steel
- DSC Adjuster: 10 low-speed compression levels / 12 high-speed compression levels
- Crossmembers: 1/4-inch thick laser cut steel, high-arched design
- Steering knuckles: CNC-machined ductile cast iron
- Rear lift: Heavy duty lift block with new U-bolts
- Reservoir finish: Black anodized aluminum
Installation
- Estimated Time: 8 hours
- Difficulty: Difficult
- Tools Required: 36mm Socket, Cut Off Wheel or Equivalent, Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment
Important Notes
- Requires frame bracket modification.
- Factory 17-inch and 18-inch wheels cannot be reinstalled due to tie rod end interference; stock 20-inch wheels can be reinstalled.
- 17-inch wheels with 4.5-inch backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle and tie rod.
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
- 2.7L Turbo models use the Diesel kit for proper skid plate fitment.
- If equipped with a mono-leaf rear spring, please use part #UBT4064.
- Will not fit models equipped with ARC.
