BDS 6 Inch Lift Kit | 1999-2006 Chevy Silverado / GMC Sierra 1500 4WD | Block Kit & Add-A-Leaf | FOX 2.0 Performance Series Shocks

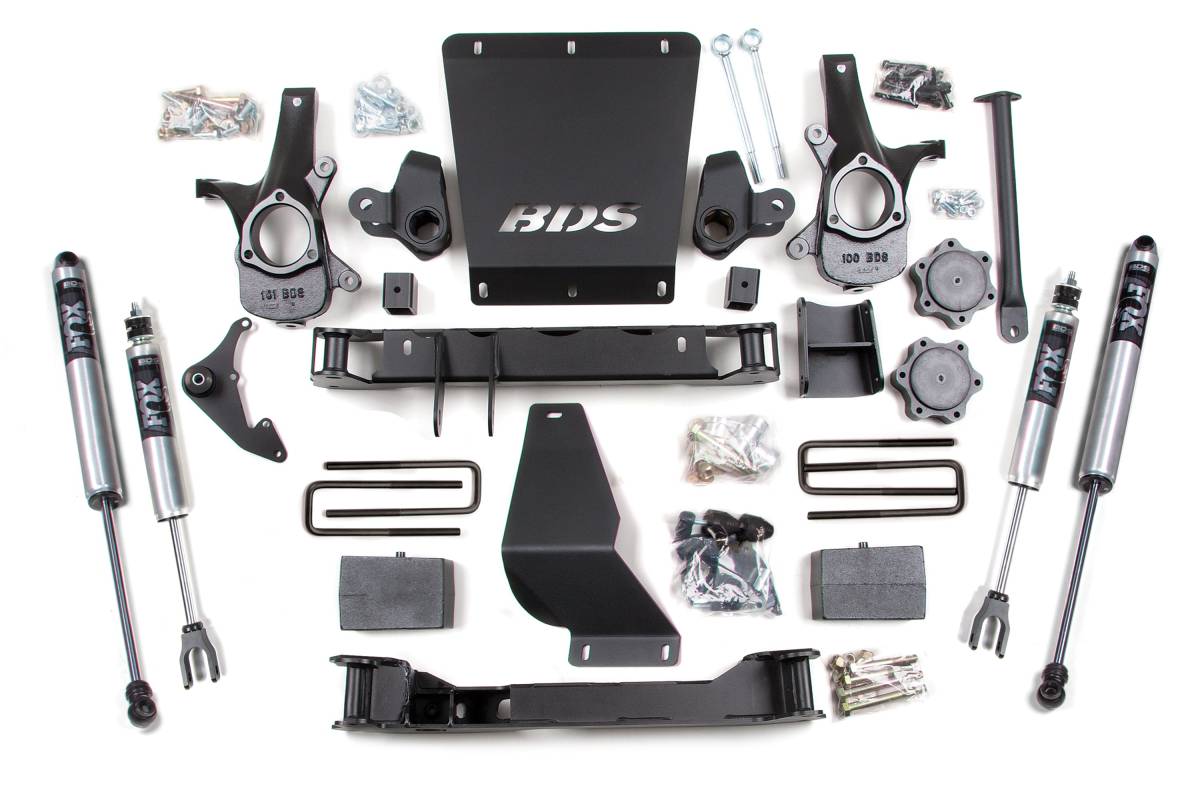

Rear lift achieved with a Block Kit and Add-A-Leaf package. The add-a-leaf helps freshen worn factory leaf springs, includes new center pins, reduces axle wrap, and maintains factory payload weight ratings. Installs in place of the stock block. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

The BDS 6-inch lift kit is designed for the 1999–2006 Chevy Silverado and GMC Sierra 1500 4WD to improve stance, performance, and off-road capability. BDS engineered a No Torsion Bar Drop System that mounts the torsion bars directly to the top of the lower a-arm, eliminating the need to drop the torsion bar cross-member and maximizing ground clearance. The kit provides clearance for up to 35-inch tires and corrects suspension and steering geometry for proper on-road handling at the new taller ride height.

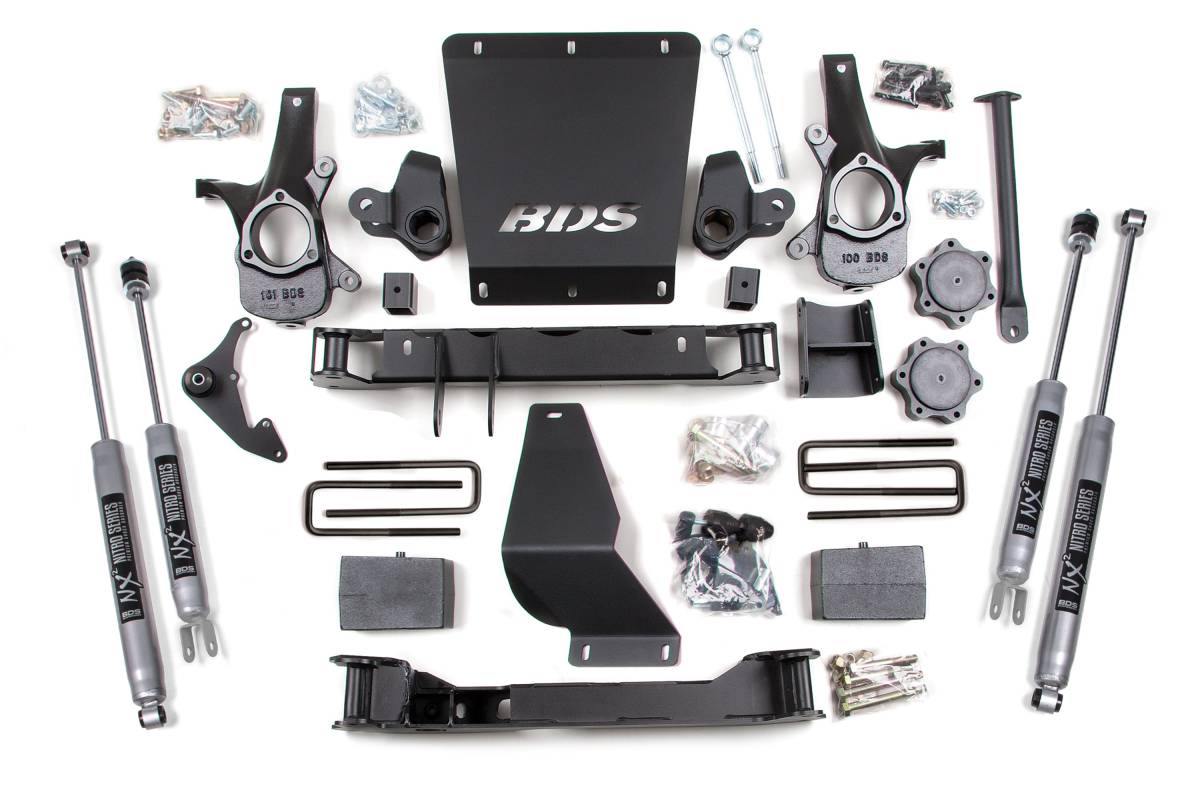

Up front, the kit includes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, CNC-machined ductile iron steering knuckles, sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware. In the rear, buyers may choose between a lift block with add-a-leaf or full replacement Glide-Ride leaf springs, along with new u-bolts, brake line brackets, and a choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks.

Features

• High Clearance design with No Torsion Bar Drop System maximizes ground clearance
• Heavy duty 1/4-inch thick laser cut steel high-arched crossmembers
• Front skid plate system bolts together to create a rigid subframe with added off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• CNC-machined ductile cast iron steering knuckles correct geometry at ride height and maintain ESC system compliance
• Works with factory tie rod ends to maintain proper steering angles
• Choice of rear lift: Block Kit with Add-A-Leaf or full Glide-Ride replacement leaf springs
• Choice of NX2 Nitro Series or FOX 2.0 Performance Series gas shocks
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 6 inches
• Tire Clearance: Up to 35 inches
• Vehicle Fitment: 1999–2006 Chevy Silverado / GMC Sierra 1500 4WD
• Crossmember material: 1/4-inch thick laser cut steel
• Steering knuckles: CNC-machined ductile cast iron

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Cut Off Wheel or equivalent, Reciprocating Saw, Torsion Bar Unloading Tool, Welding Equipment

Important Notes

• Special tool (Kent Moore Tools Part# J-42393) required to unload/load torsion bars. Not available through BDS.
• Requires frame bracket modification and differential mount modification as well as minor welding.
• If equipped with stock 17" wheels, then must replace with 17" or larger aftermarket wheels.
• AWD models will require front driveline modification.
• Will not fit Quadsteer equipped models.
