BDS 6 Inch 4-Link Lift Kit | FOX 2.5 Performance Elite Coil-Over Conversion | Ram 3500 4WD Diesel (2013-2018) | FOX 2.0 Hydro Bump Stop | 6-Bolt

Configured with FOX 2.0 Hydraulic Bump Stops and a 6-Bolt indexing ring kit. The FOX 2.0 Hydraulic Bump Stops provide an additional layer of shock absorption when utilizing the full suspension travel — ideal for avid off-roaders hitting large obstacles or traversing rough terrain at speed. The 6-bolt indexing ring kit is compatible with the standard Ram 3500 transfer case mounting bolt pattern.

Overview

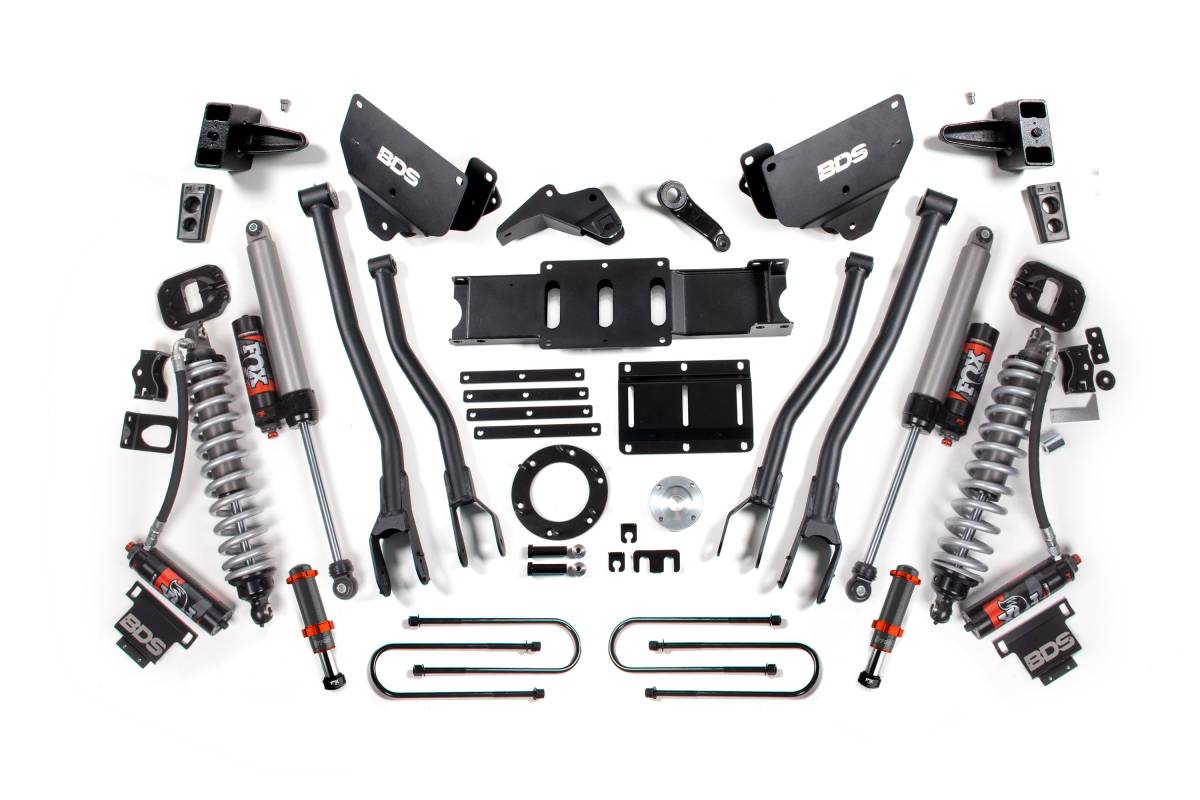

The BDS 6-inch 4-Link Lift Kit for 2013–2018 Ram 3500 4WD Diesel trucks replaces the factory suspension setup with heavy-duty components engineered for strength and performance. Heavy-duty BDS 4-Link arms improve articulation and durability, while the front coilover conversion kit — featuring FOX 2.5 Performance Elite coilovers — delivers precise damping and improved ride quality on and off the road. FOX 2.5 Performance Elite shocks are fitted at the rear to maintain control across varied terrain. An optional FOX 2.0 Hydraulic Bump Stop is available for the front to provide additional impact absorption during aggressive off-road use.

Features

• FOX 2.5 Performance Elite coil-over mounts in the factory coil spring bucket
• FOX 2.5 Performance Elite rear shocks
• Optional auxiliary front shock absorber (FOX 2.0 Hydraulic Bump Stop)
• Heavy-duty tubular steel 4-Link arms correct caster while maximizing ground clearance
• Front adjustable track bar allows the front of the truck to be re-centered after lifting
• Front sway bar correction to maintain handling performance

Installation

• Estimated Time: 7–8 hours
• Difficulty: Difficult
• Required Tools: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment

Important Notes

• Will not fit air ride equipped models
• Diesel models only
• Must be used with an aftermarket front drive shaft due to increased wheel travel
• The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft
• Some vehicles may require a rear driveshaft spacer kit BDS122007 to maintain adequate rear driveshaft engagement
