BDS 4 Inch Lift Kit | Ram 3500 (2013-2018) 4WD Gas | 2 Inch Block Kit | FOX 2.0 Performance Series

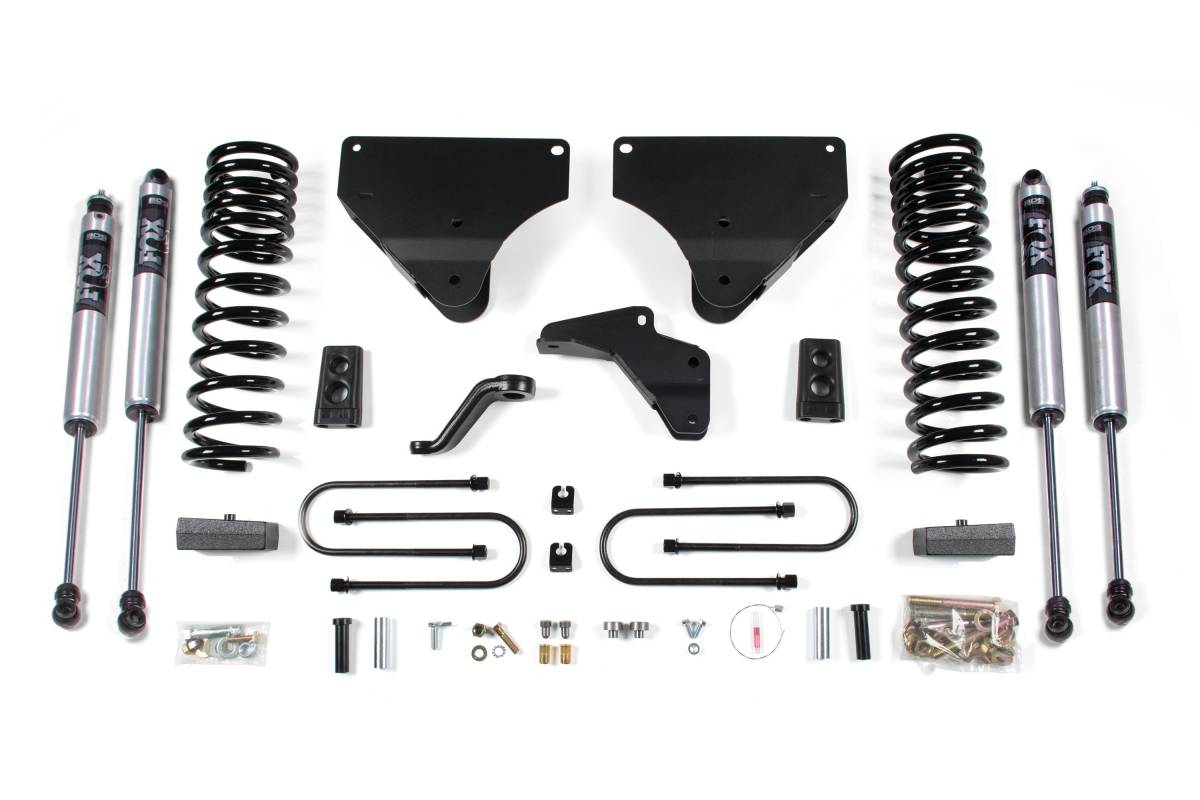

Configured with a 2 Inch Rear Block Kit for a tail-low to level stance and FOX 2.0 Performance Series shocks front and rear. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

Overview

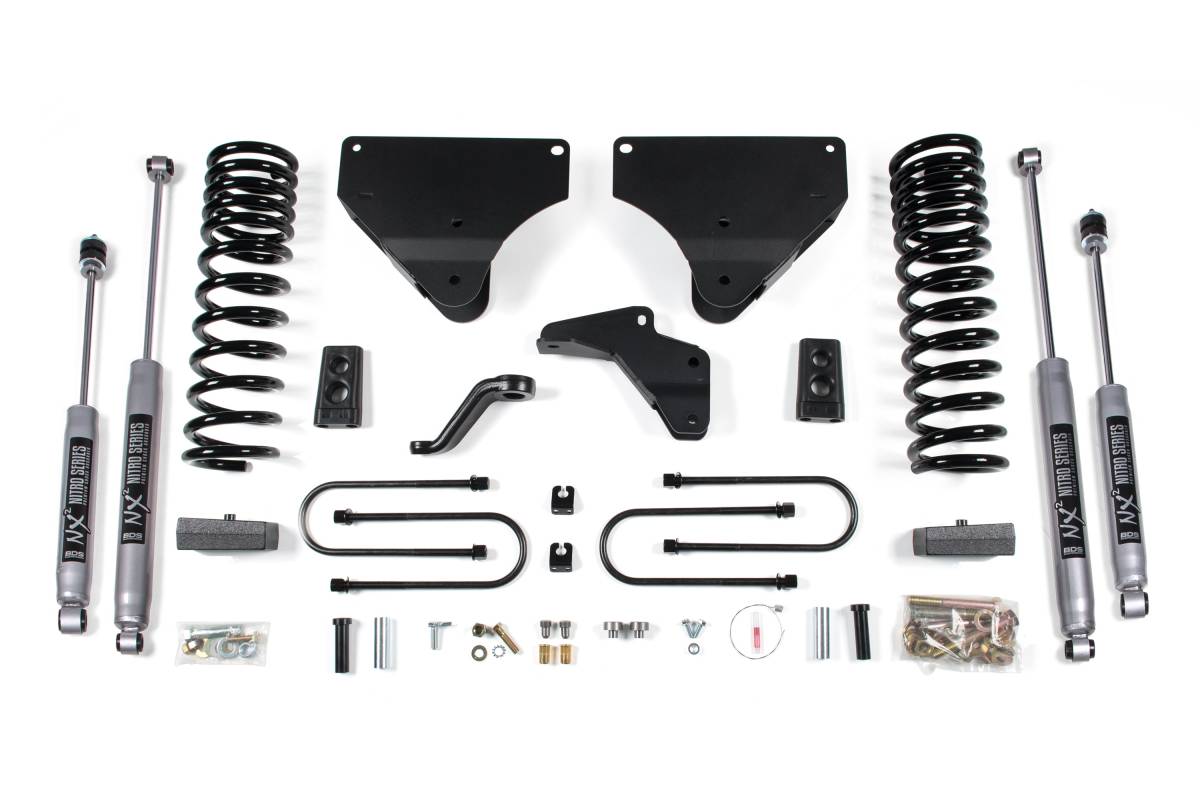

This 4-inch lift kit from BDS Suspension is designed for 2013–2018 RAM 3500 gas-powered 4WD trucks. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned nitrogen charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block, longer U-bolts, and a matching set of rear shocks.

Features

• Heavy duty radius arm drop brackets to maintain proper suspension geometry
• Front high-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Front track bar relocation bracket to re-position the front axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• High-strength fabricated rear lift block with longer U-bolts
• Choice of BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks for improved ride and off-road performance
• Provides clearance for up to 35-inch tires

Installation

• Estimated Time: 6–8 hours
• Difficulty: Difficult
• Tools Required: Basic Hand Tools, Step Drill Bit, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller, Welding Equipment

Important Notes

• The carrier-bearing drop kit is necessary for models equipped with a two-piece rear drive shaft.
• 6.4L Gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's radius arm bracket.
• 5.7L Gas models may require exhaust modification, but not in all cases.
• The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled after modification.
