Configured with Rubber Bump Stops and a 6-Bolt Indexing Ring Kit. Rubber factory-style bump stops provide a firm suspension limit, protecting shocks and components during road use and light off-road driving where bump stops are engaged at low speeds. The 6-bolt indexing ring kit is compatible with the standard Ram 3500 transfer case bolt pattern.
Overview

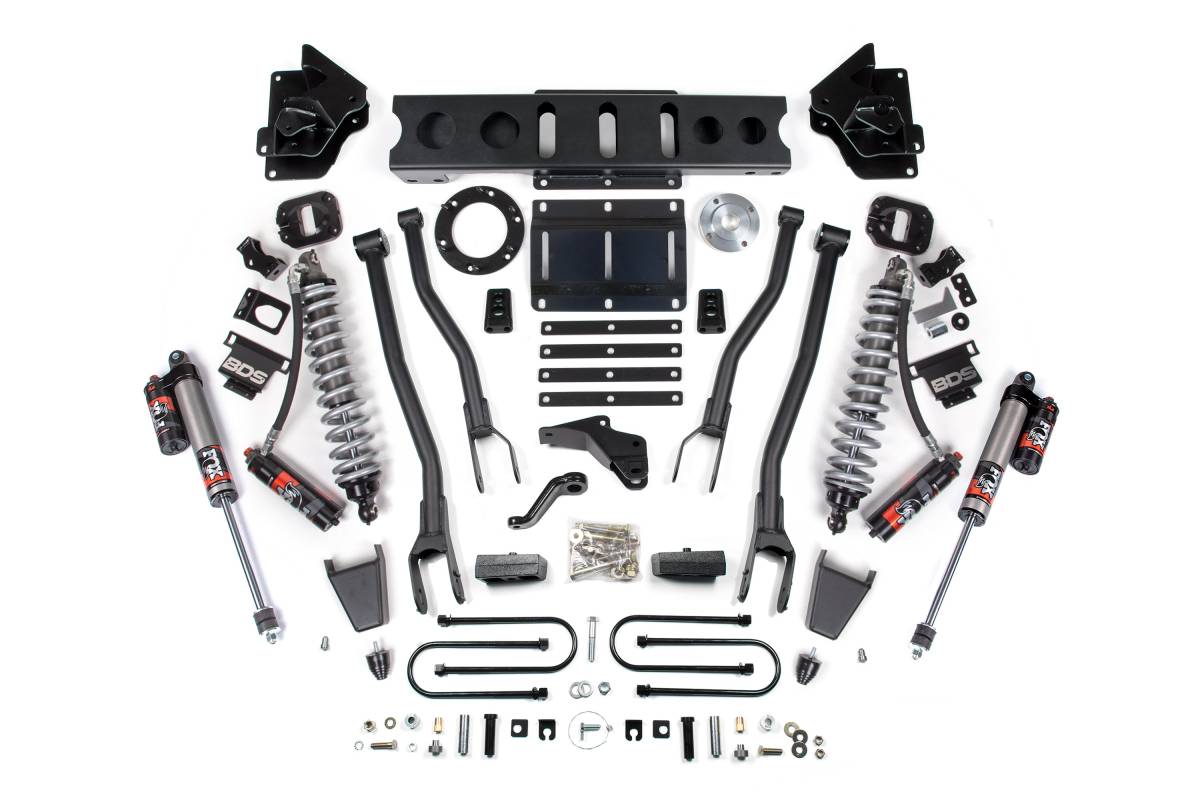

The BDS 4-inch 4-Link Lift Kit for 2013–2018 Ram 3500 4WD Diesel trucks replaces the factory suspension with a purpose-built system designed for increased articulation, strength, and off-road capability. The kit centers on heavy-duty BDS 4-Link arms paired with a front coilover conversion featuring FOX 2.5 Performance Elite coilovers, delivering improved damping control and ride quality on and off the road. FOX 2.5 Performance Elite shocks are fitted at the rear. An optional FOX 2.0 Hydraulic Bump Stop upgrade is available for the front to provide an additional layer of impact absorption at full suspension travel.
Features
- FOX 2.5 Performance Elite coilovers mount in the factory coil spring bucket
- FOX 2.5 Performance Elite rear shocks
- Optional auxiliary front shock absorber (FOX 2.0 Hydraulic Bump Stop)
- Heavy-duty tubular steel 4-Link arms correct caster while maximizing ground clearance
- Front adjustable track bar allows re-centering of the front axle after lift
- Front sway bar correction to maintain handling performance
Specifications
- Lift Height: 4 inches
- Front Shock: FOX 2.5 Performance Elite Coil-Over
- Rear Shock: FOX 2.5 Performance Elite
- 4-Link Arm Material: Heavy-duty tubular steel
- Indexing Ring Options: 6-bolt (standard transfer case) or 8-bolt (Aisin transmission)
- Compatible Vehicle: 2013–2018 Ram 3500 4WD Diesel
Installation
- Estimated Installation Time: 7–8 hours
- Difficulty: Difficult
Important Notes
- Will not fit air ride equipped models
- Diesel models only
- Must be used with an aftermarket front drive shaft due to increased wheel travel
- The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft
- Some vehicles may require a rear driveshaft spacer kit BDS122007 to maintain adequate rear driveshaft engagement
