Configured with a 2 Inch Block Kit for a level to slightly low rear stance, paired with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

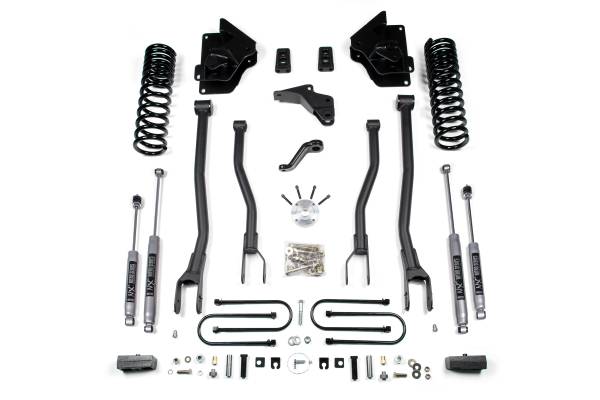

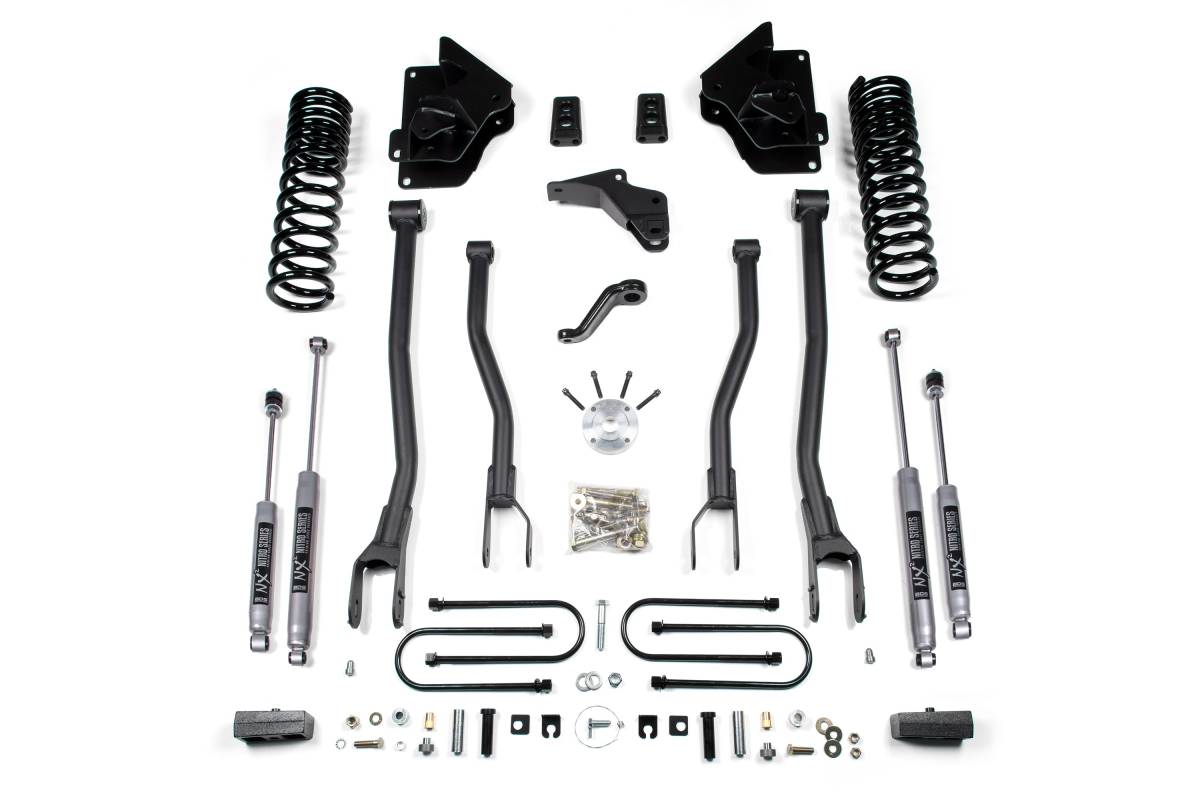

BDS Suspension engineered this 4-inch lift kit with 4-Link conversion for the 2013–2018 RAM 3500 diesel-powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set the truck up with clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, a forged drop pitman arm, track bar bracket for steering correction, bump stops, and brake line brackets. In the rear, the kit utilizes a high-strength fabricated lift block and longer U-bolts. Shocks are included front and rear in the selected configuration.
The 4-Link conversion replaces the factory stamped steel radius arms to optimize suspension geometry for improved handling characteristics, strength, and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs provide the correct lift height and smooth, predictable ride across various terrains.
A forged drop pitman arm minimizes the steering angle once lifted. Paired with a heavy duty track bar drop bracket, steering geometry is kept in phase through suspension travel while recentering the front axle.
The carrier bearing drop kit is necessary for models equipped with a two-piece rear drive shaft.
