BDS 4 Inch Lift Kit w/ Radius Arm | Ram 2500 w/ Rear Air Ride (2014-2018) 4WD Gas | NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks front and rear. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

Overview

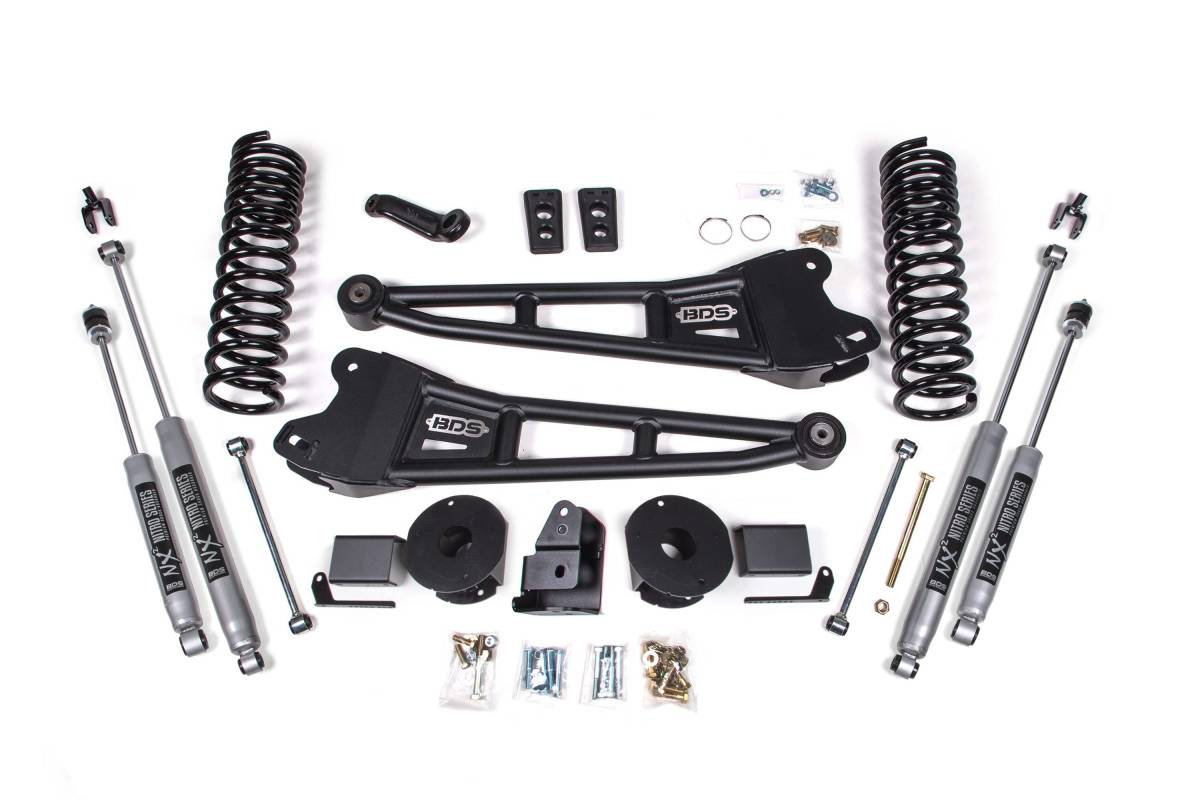

This 4-inch radius arm lift kit from BDS Suspension is designed for 2014–2018 RAM 2500 gas-powered trucks equipped with factory rear air ride. The kit is engineered to improve stance, performance, and capability, and provides clearance for up to 35-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets. In the rear, the kit uses heavy-duty air bag spacers, a track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. New air ride leveling sensor brackets are also included to re-position the ride height sensors, allowing the system to perform at factory ride height and maintain full air bag range of motion.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• High-strength progressive rate Pro-Ride coil springs for a smooth, predictable ride on any terrain
• Track bar relocation brackets to re-position the front and rear axle
• Forged drop pitman arm to correct steering angles after lift
• Front sway bar correction hardware to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Air ride leveling sensor brackets to maintain factory air bag ride height operation
• Heavy-duty rear air bag spacers, bump stop extensions, and sway bar links included
• Available with BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Fitment: 2014–2018 RAM 2500 4WD Gas, equipped with factory rear air ride
• Radius Arms: High-strength tubular steel, factory mounting location, OE-style rubber bushing at frame mount, caster adjustable
• Coil Springs: Full-length, gas-specific, progressive rate, high tensile steel, direct OE replacement dimensions

Installation

• Estimated Time: 6–8 hours
• Difficulty: Moderate
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
