BDS 4 Inch Long Arm Lift Kit | Dodge Ram 2500 Power Wagon 2009-2013 4WD Gas | Leaf Springs | 4 Inch Axle | NX2 Nitro Series

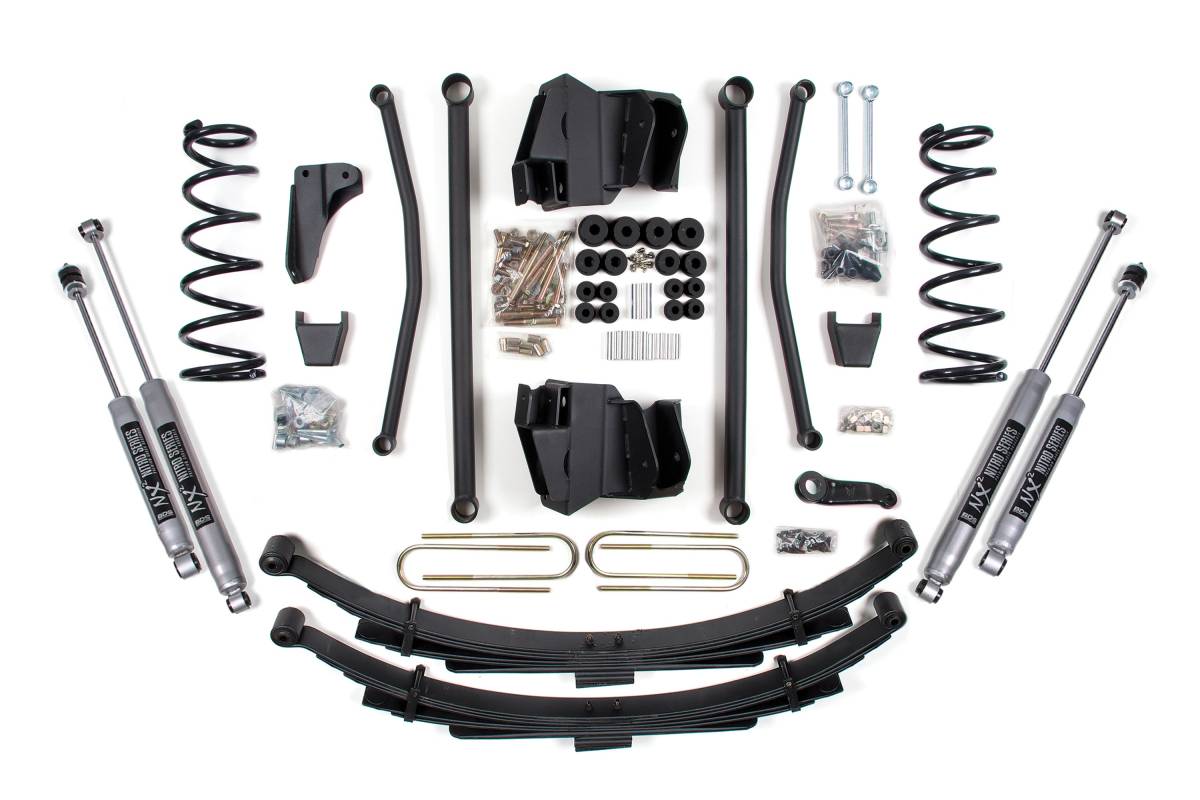

Rear lift via Leaf Springs — multi-leaf progressive design for a smooth ride, maintains factory payload weight ratings. Sized for a 4 inch diameter rear axle. Shocks: NX2 Nitro Series — nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends, self-lubricating seals, silver powder coat finish.

Overview

BDS Suspension engineered this 4-inch lift kit with long arm conversion for the 2009–2013 Dodge RAM 2500 Power Wagon (4WD, Gas) to maximize performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to lift your truck with clearance for up to 37-inch tires.

The long lower control arms reduce caster change through wheel travel, creating a more controlled feel at the steering wheel. The long arm system retains the factory triangulation of the arms, adding stability to the suspension system. Up front, the kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, a forged drop pitman arm, track bar bracket for steering correction, bump stops, sway bar links, and precision-tuned shocks. The rear utilizes heavy duty cast steel blocks or progressive leaf springs (depending on configuration), longer u-bolts, and a matched set of shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high tensile steel with a properly sized wire diameter, these direct OE replacement coil springs deliver maximum reliability without premature coil bind.

Steering Correction

A forged drop pitman arm minimizes steering angle after the lift. A heavy duty track bar drop bracket keeps the steering geometry in phase through suspension travel while recentering the front axle.

Features

• Tubular long arms reduce caster change and create more controlled feel on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high-strength progressive rate coil springs for a smooth ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks for improved ride and off-road performance

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2009–2013 Dodge RAM 2500 Power Wagon, 4WD, Gas
• Tire Clearance: Up to 37 inches

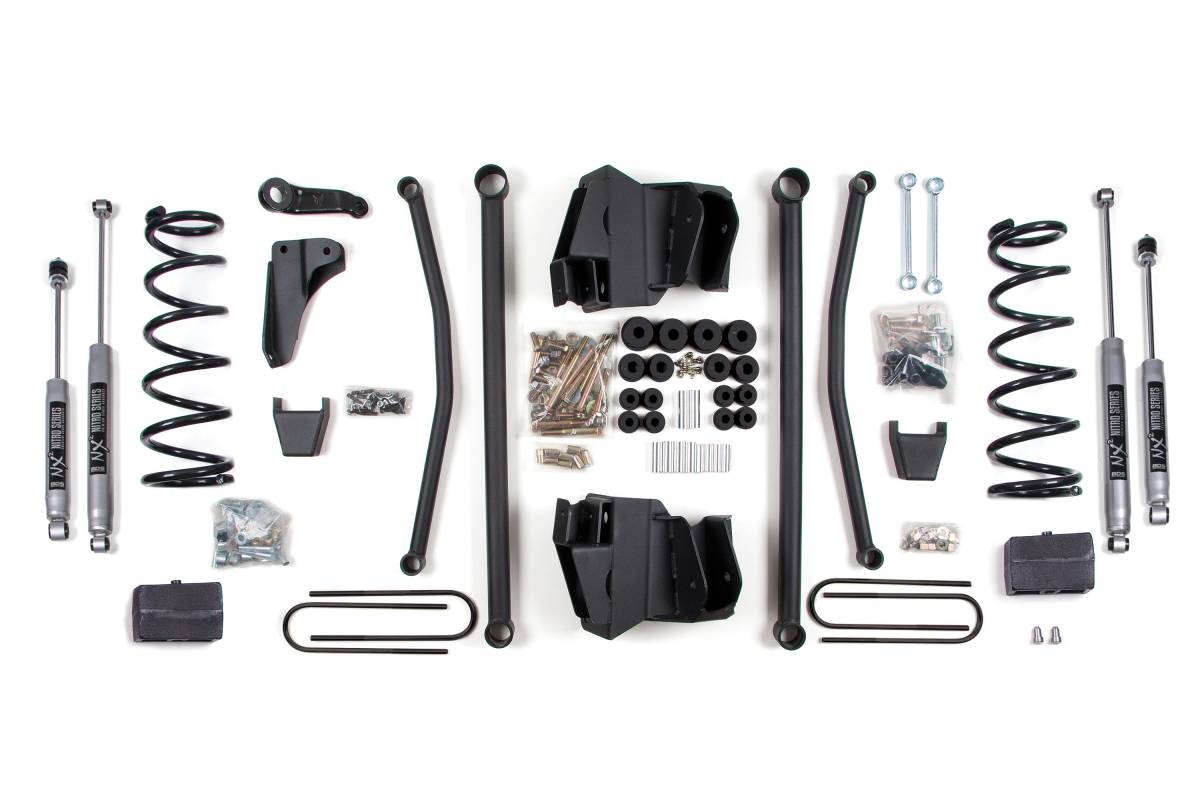

• Rear Lift Options: Block Kit or Leaf Springs (see variant selection)
• Rear Axle Compatibility: 3-1/2 inch or 4 inch diameter (measure before ordering)
• Shock Options: FOX 2.0 Performance Series or NX2 Nitro Series (see variant selection)
• Pro-Ride coil springs: high tensile steel, progressive rate, gas-specific
• Lift blocks (where applicable): cast iron, tapered for correct pinion angle, offset steel pin to restore axle position
• Leaf springs (where applicable): multi-leaf progressive design, maintains factory payload weight ratings

Installation

• Estimated Time: 6–8 hours
• Difficulty: Moderate
• Special Tools Required: Cut Off Wheel or Equivalent, Grinder/Sanding Disc, Pitman Arm Puller, Welding Equipment

Important Notes

These vehicles were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter. The 102009 rear brake line will not fit 2012 or newer models. Depending on the factory transmission mount, some 4" kits may require the transfer case indexing kit if a driveline vibration persists. See installation instructions for details.
