Configured for trucks without factory rear overload leaf springs, with a 6-bolt transfer case indexing ring kit, and NX2 Nitro Series shocks. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.
Overview

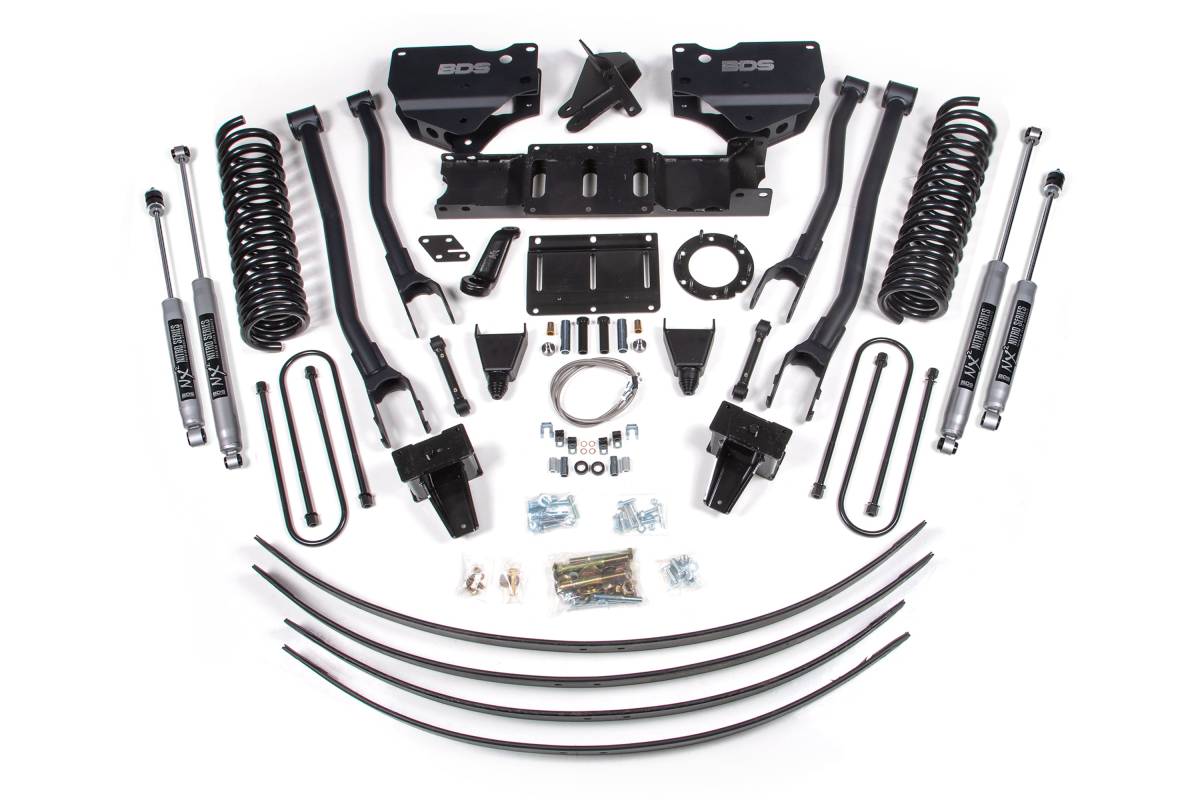

This 8-inch 4-Link lift kit from BDS Suspension is engineered for the 2019–2024 Ram 3500 4WD diesel truck, providing increased stance, performance, and off-road capability with clearance for up to 40-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, a 4-link control arm conversion, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and custom-tuned nitrogen charged shocks. A transfer case indexing ring with ARP studs and a new high-clearance transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. At the rear, the kit uses heavy duty steel lift blocks, add-a-leaf springs, u-bolts, and a matched set of shocks.
The 4-Link conversion replaces the factory stamped steel radius arms with high-strength 1/4-inch steel brackets supporting HD upper and lower control arms, correcting axle positioning and limiting caster change throughout wheel travel. Diesel-specific Pro-Ride coil springs deliver the correct lift height and a smooth, predictable ride across various terrains. The precision-built transfer case indexing ring clocks the transfer case to improve the front driveline operating angle.
Features
- Heavy duty 4-link conversion for improved strength, handling, and caster control
- Front high-strength progressive rate coil springs (diesel-specific Pro-Ride)
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction hardware to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to improve front driveline angles
- Rear heavy duty steel lift blocks, add-a-leaf springs, and u-bolts
- NX2 Nitro Series gas or FOX 2.0 Performance Series IFP shocks (variant-dependent)
- Clears up to 40-inch tires
Specifications
- Lift Height: 8 inches
- 4-Link bracket material: 1/4-inch high-strength steel
- Transfer case indexing ring: precision-built with ARP studs; available in 6-bolt (standard) or 8-bolt (Aisin transmission) configurations
- 8-bolt indexing ring kit includes internal shaft seal extension and new shaft seal
- Rear lift: heavy duty steel lift blocks with add-a-leaf springs and u-bolts
- Tire clearance: up to 40 inches
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Tools Required: Drill / Bit Set, Pitman Arm Puller, Welding Equipment
Important Notes
- Does not fit OE equipped air ride systems.
- Recoil Traction Bars Recommended.
- Dually with 8-bolt Transmission (Aisin) requires BDS122409 DEF Relocation Kit.
- Mega Cabs with 8-bolt Transmission (Aisin) require BDS122409 DEF Relocation Kit.
- Vehicles equipped with a Manual T-case require BDS122423 Manual Transfer Case Shifter Extension.
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier Bearing Drop.
- This kit requires the use of an aftermarket front driveshaft (not provided) in addition to the provided indexing ring kit BDS122624 (6-bolt) or BDS122421 (8-bolt). Both must be installed; however, due to variations between truck configurations, BDS recommends installing the kit prior to taking measurements for the aftermarket front driveshaft to ensure correct length. The vehicle can be driven without the front driveshaft during this process.
- Kit was tested with a Drive Line Plus flange and driveshaft; other high-angle driveshaft options can be used.
