BDS 6 Inch Lift Kit w/ Radius Arm | Ram 3500 Rear Air Ride (2019-2024) 4WD Diesel | 8-Bolt | FOX 2.0 Performance Series

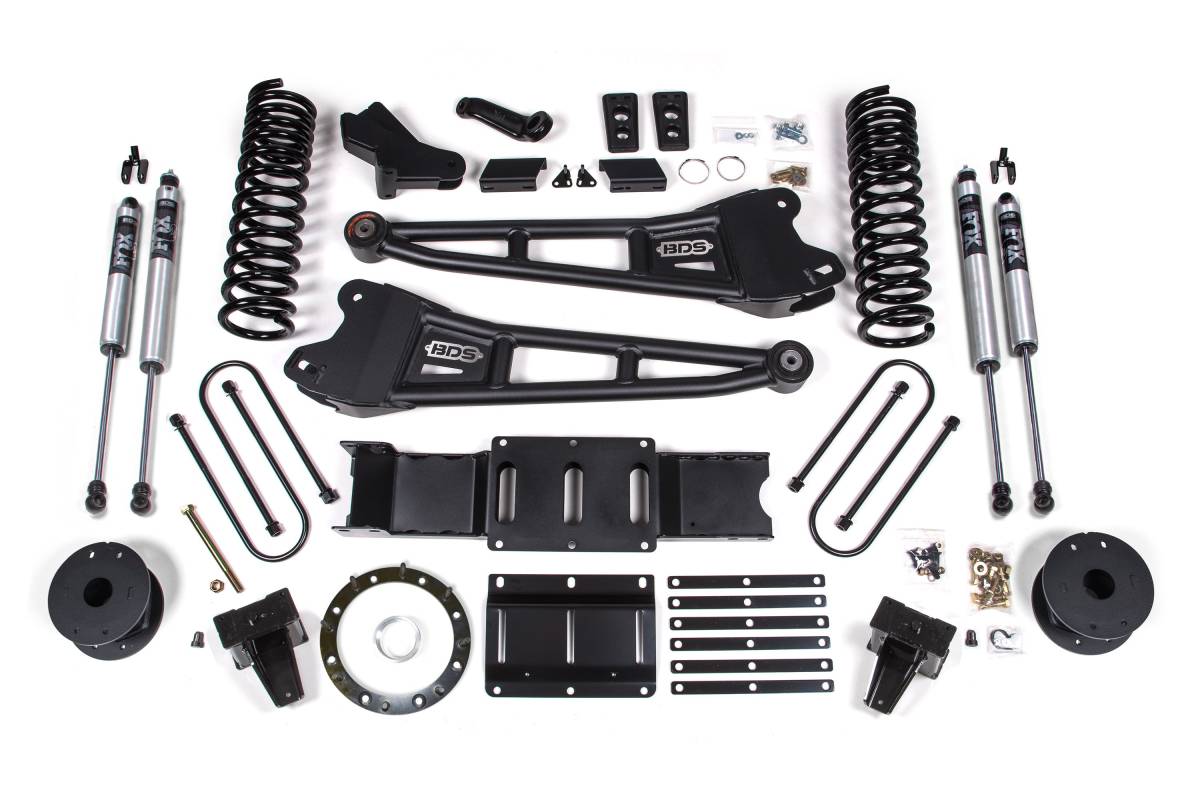

Includes an 8-Bolt indexing ring kit designed for Ram 3500 trucks equipped with the optional Aisin heavy-duty 6-speed transmission, which utilizes a different transfer case mounting bolt pattern. This kit also includes an internal shaft seal extension and new shaft seal. Configured with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

Overview

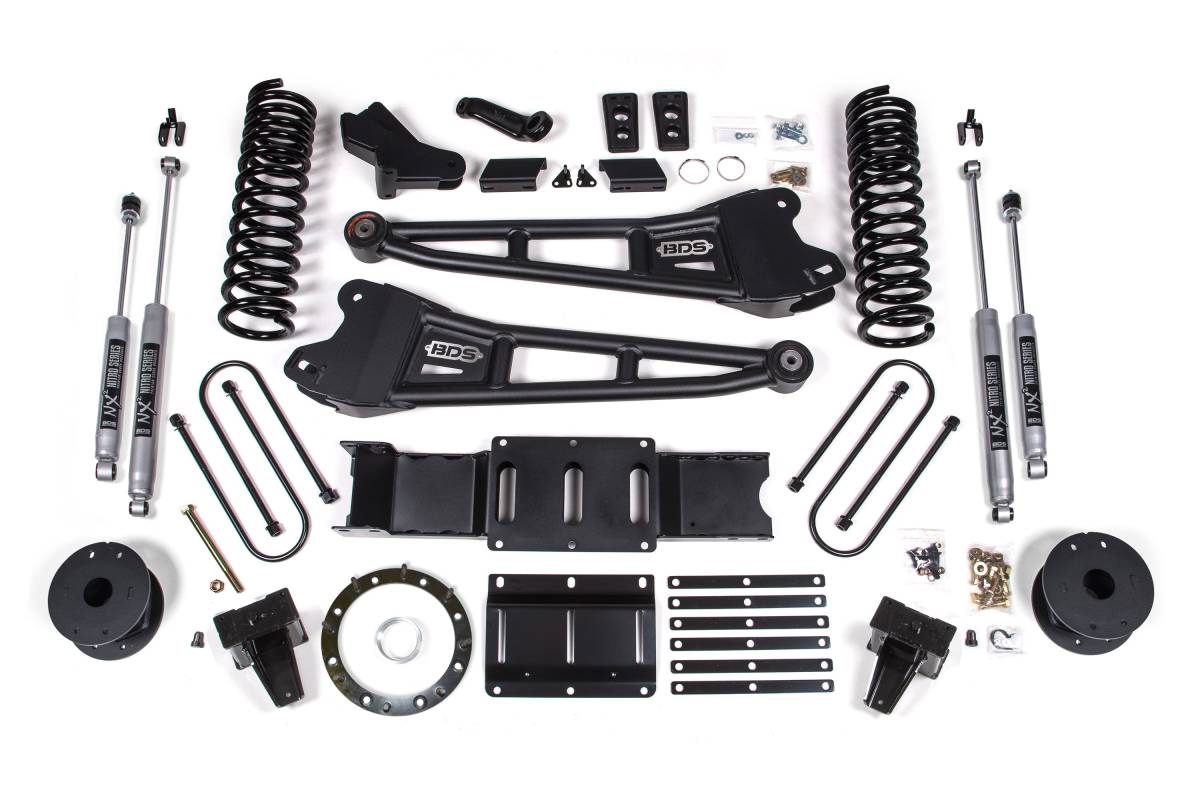

This 6-inch radius arm lift kit from BDS Suspension is engineered for diesel-powered Ram 3500 trucks equipped with factory rear air bags (2019–2024, 4WD). The kit provides clearance for up to 37-inch tires and includes all components needed to properly lift and correct the geometry of your truck. Up front, the kit features diesel-specific Pro-Ride coil springs, heavy-duty tubular radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are included to allow continued use of the factory front driveshaft at this lift height. In the rear, the kit uses a high-strength steel lift block, a heavy-duty air bag spacer, longer U-bolts, and a matched set of shocks.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• Front high-strength progressive rate Pro-Ride coil springs for smooth, predictable ride on any terrain
• Front track bar relocation bracket to re-position the front axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• NX2 Nitro Series or FOX 2.0 Performance Series shocks available
• Rear high-strength steel lift block, heavy-duty air bag spacer, and longer U-bolts included
• Clearance for up to 37-inch tires

Specifications

• Lift Height: 6 inches
• Radius Arms: High-strength tubular steel with OE-style rubber bushing at frame mount; caster adjustable
• Coil Springs: Full-length, diesel-specific, progressive rate Pro-Ride design
• Indexing Ring: Available in 6-bolt (standard) or 8-bolt (Aisin transmission) configurations
• Rear Components: High-strength steel lift block, heavy-duty air bag spacer, longer U-bolts

Installation

• Estimated Time: 7–9 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

• Fits OE-equipped air ride systems only
• Dually with 8-bolt Transmission (Aisin) requires BDS122409 DEF Relocation Kit
• Mega Cabs with 8-bolt Transmission (Aisin) require BDS122409 DEF Relocation Kit
• Vehicles equipped with a Manual T-case require BDS122423 Manual Transfer Case Shifter Extension
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier Bearing Drop
