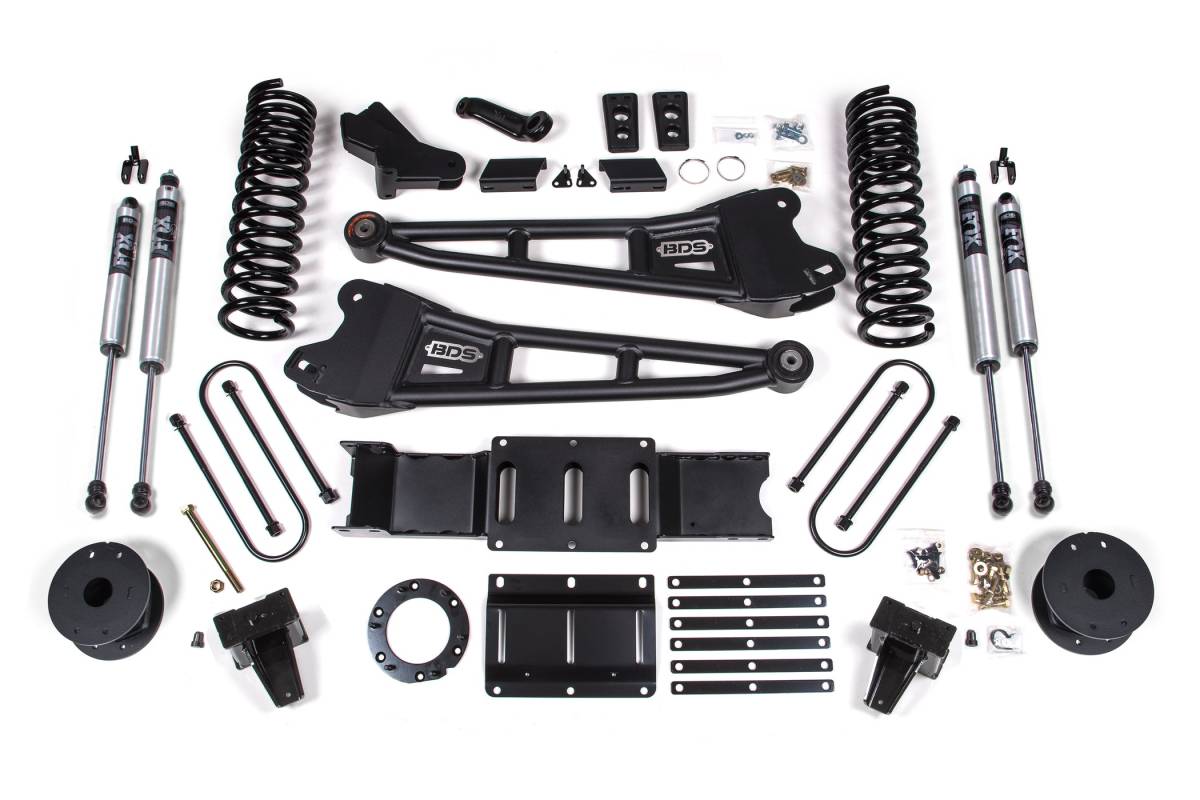

Includes a 6-Bolt indexing ring kit, compatible with the standard Ram 3500 transfer case bolt pattern. Configured with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.
Overview
This 6-inch radius arm lift kit from BDS Suspension is engineered for diesel-powered Ram 3500 trucks equipped with factory rear air bags (2019–2024, 4WD). The kit provides clearance for up to 37-inch tires and includes all components needed to properly lift and correct the geometry of your truck. Up front, the kit features diesel-specific Pro-Ride coil springs, heavy-duty tubular radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are included to allow continued use of the factory front driveshaft at this lift height. In the rear, the kit uses a high-strength steel lift block, a heavy-duty air bag spacer, longer U-bolts, and a matched set of shocks.
Features
- Heavy-duty tubular radius arms improve strength, handling, and caster control
- Front high-strength progressive rate Pro-Ride coil springs for smooth, predictable ride on any terrain
- Front track bar relocation bracket to re-position the front axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts

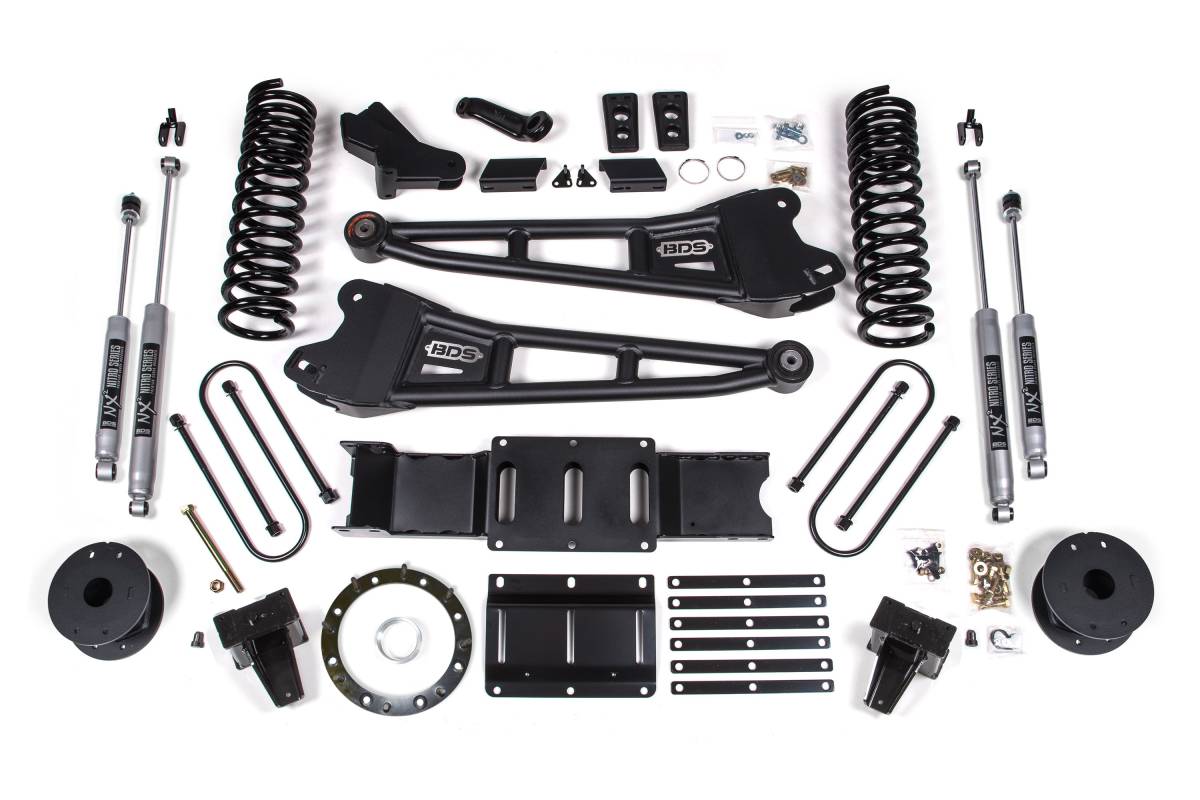

- NX2 Nitro Series or FOX 2.0 Performance Series shocks available
- Rear high-strength steel lift block, heavy-duty air bag spacer, and longer U-bolts included
- Clearance for up to 37-inch tires
Specifications
- Lift Height: 6 inches
- Radius Arms: High-strength tubular steel with OE-style rubber bushing at frame mount; caster adjustable
- Coil Springs: Full-length, diesel-specific, progressive rate Pro-Ride design
- Indexing Ring: Available in 6-bolt (standard) or 8-bolt (Aisin transmission) configurations
- Rear Components: High-strength steel lift block, heavy-duty air bag spacer, longer U-bolts
Installation
- Estimated Time: 7–9 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- Fits OE-equipped air ride systems only
- Dually with 8-bolt Transmission (Aisin) requires BDS122409 DEF Relocation Kit
- Mega Cabs with 8-bolt Transmission (Aisin) require BDS122409 DEF Relocation Kit
- Vehicles equipped with a Manual T-case require BDS122423 Manual Transfer Case Shifter Extension
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier Bearing Drop
