BDS 4 Inch Lift Kit w/ Radius Arm | Ram 2500 w/ Rear Air Ride (2019-2024) 4WD Gas | NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks front and rear. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

Overview

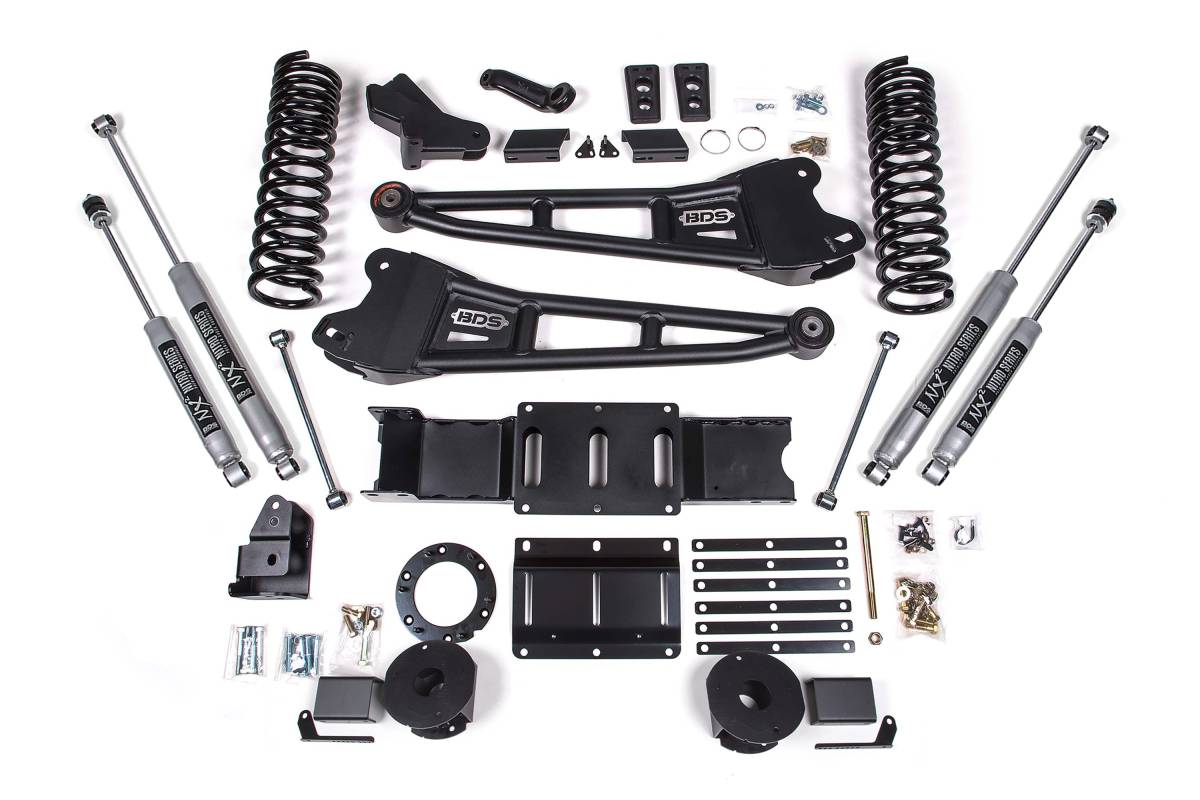

This 4-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 2500 gas-powered trucks equipped with factory rear air ride. The kit improves stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar drop bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses heavy-duty rear air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links, and a matched set of rear shocks.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• High-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Track bar relocation brackets to re-center and re-position the front axle
• Forged drop pitman arm to correct steering angles when lifted
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Choice of BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks for improved ride and off-road performance
• Heavy-duty rear air bag spacers compatible with factory rear air ride systems
• Bump stop extensions and rear sway bar links included

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Drivetrain: 4WD
• Engine: Gas
• Rear Suspension: Compatible with factory OE air ride systems only
• Coil Springs: Full-length, gas-specific, progressive rate Pro-Ride; manufactured from high tensile steel with properly sized wire diameter
• Radius Arms: High-strength tubular construction; mount into factory location; offer caster adjustment; OE-style rubber bushing at frame mount
• Includes: Radius arms, Pro-Ride coil springs, forged drop pitman arm, track bar drop bracket, sway bar relocation hardware, brake line brackets, rear air bag spacers, rear track bar relocation bracket, bump stop extensions, rear sway bar links, HD transmission crossmember, transfer case indexing ring, and shocks

Installation

• Estimated Time: 8–10 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

• Fits OE equipped air ride systems only.
• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without a front driveshaft to an exhaust shop.
• Trucks equipped with a manual shift transfer case will require Transfer Case Shifter Extension — BDS122422.
