BDS 3 Inch Lift Kit | Ram 2500 Diesel w/ Rear Air Ride (2014-2018) 4WD | FOX 2.0 Performance Series Shocks

Configured with FOX 2.0 Performance Series shocks front and rear. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving to maximize performance, and a long-lasting clear anodized finish.

Overview

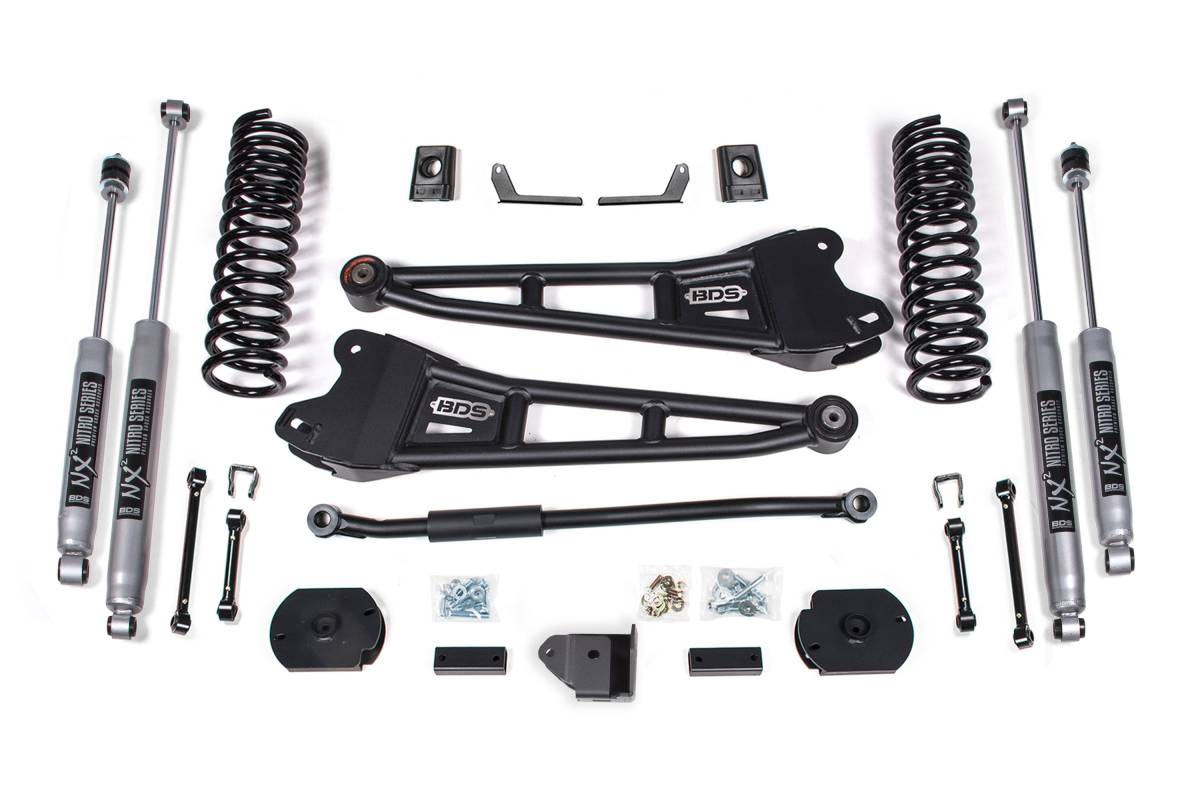

This 3-inch radius arm lift kit from BDS Suspension is designed for 2014–2018 Ram 2500 diesel-powered trucks equipped with the factory rear air ride suspension. The kit improves stance, performance, and capability, and provides clearance for tires up to 35 inches. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar, sway bar links, brake line brackets, and precision-tuned shocks. In the rear, the kit uses heavy duty air bag spacer brackets, a track bar relocation bracket, bump stop extensions, and a matching set of shocks. New air ride leveling sensor brackets are also included to reposition the ride height sensors, allowing the air ride system to function as it does at factory ride height and maintaining full air bag range of motion.

Features

• Heavy duty tubular radius arms improve strength, handling, and caster control
• Diesel-specific progressive rate Pro-Ride coil springs for improved ride on any terrain
• Front adjustable track bar allows you to re-center the front axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction links to maintain handling performance
• Air ride leveling sensor brackets reposition ride height sensors to maintain factory air bag range of motion
• Rear heavy duty air bag spacer brackets and track bar relocation bracket
• Rear bump stop extensions
• Available with BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks
• Provides clearance for up to 35-inch tires

Specifications

• Lift Height: 3 inches
• Track bar material: 1-3/8-inch solid steel stock, pre-assembled with bushings
• Radius arms: High-strength tubular steel, mount into factory locations, OE-style rubber bushing at frame mount
• Coil springs: Full-length, diesel-specific, progressive rate, high tensile steel, properly sized wire diameter to prevent premature coil bind
• Compatible with: Factory OE rear air-ride equipped 2014–2018 Ram 2500 4WD Diesel

Installation

• Estimated Installation Time: 6 hours
• Difficulty: Moderately Easy

Important Notes

Designed for OE rear air-ride equipped models only.
