BDS 2 Inch Lift Kit | Ram 2500 Power Wagon (2014-2024) 4WD | w/ FOX 2.0 Performance Series Shocks

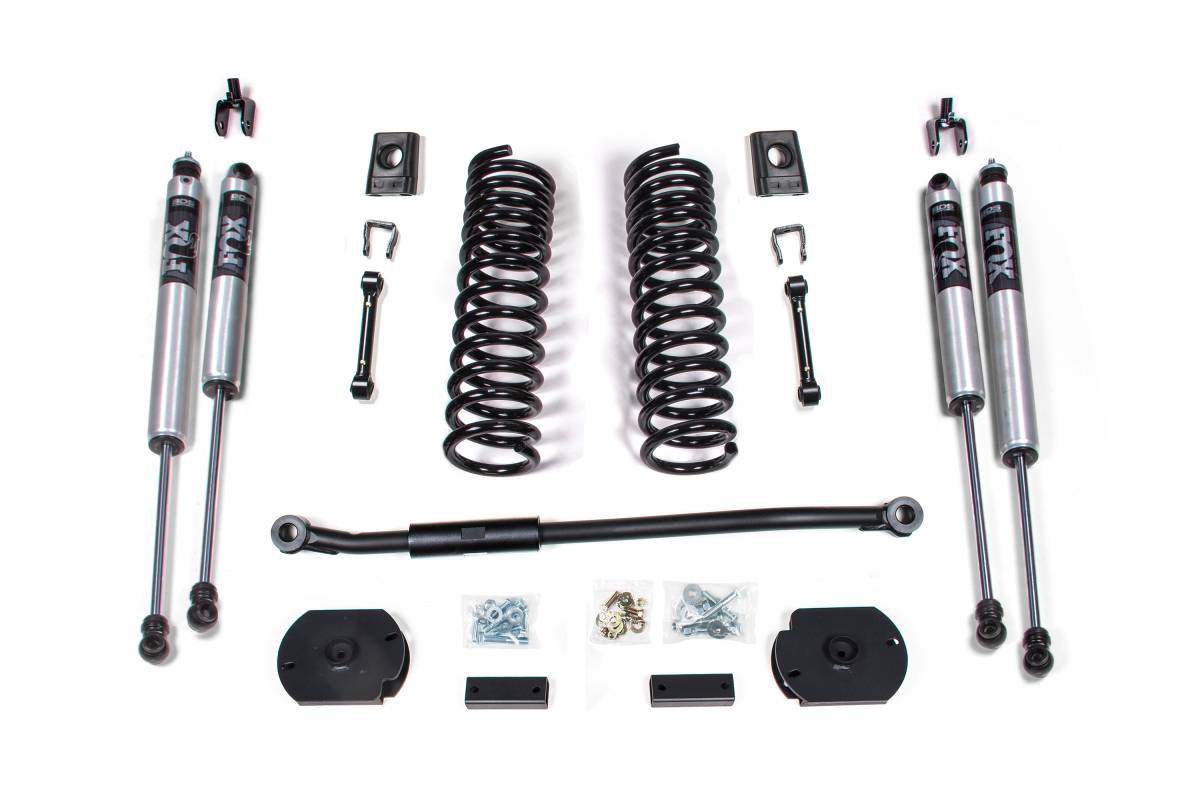

Configured with FOX 2.0 Performance Series shocks front and rear. The FOX 2.0 features a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 2-inch lift kit from BDS Suspension is designed to level out and improve the stance, performance, and capability of the RAM 2500 Power Wagon (2014–2024) 4WD. The kit includes everything necessary to set up the truck correctly, providing clearance for up to 35-inch tires. Up front, the kit features diesel-specific Pro-Ride coil springs, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, sway bar links, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength fabricated coil spacer, bump stop extensions, and a matching set of shocks.

Features

• Front high-strength progressive rate Pro-Ride coil springs for a smooth, predictable ride on any terrain
• Front adjustable track bar allows re-centering of the front axle at a variety of lift heights
• Front sway bar correction links to maintain handling performance
• High-strength fabricated rear coil spacer
• Rear bump stop extensions

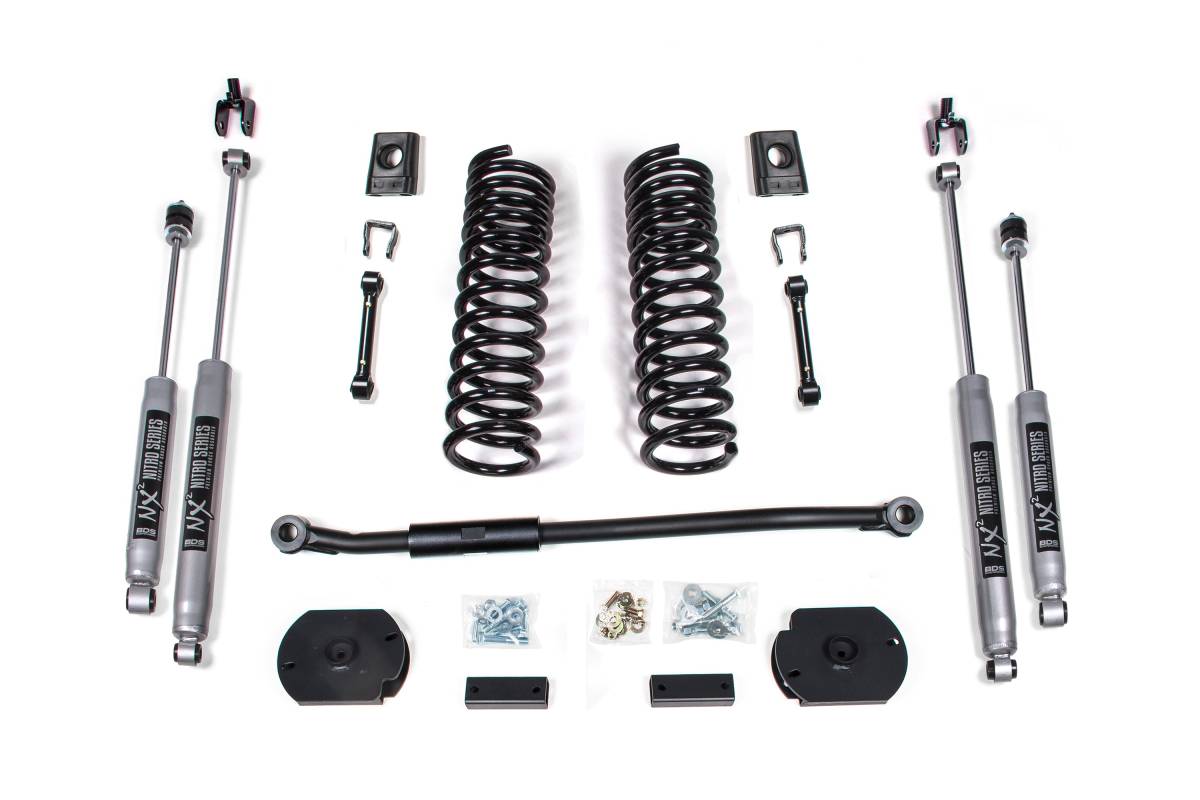

• Available with BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks front and rear
• Provides clearance for up to 35-inch tires

Specifications

• Lift Height: 2 inches
• Pro-Ride Coil Springs: Full-length, progressive rate, manufactured from high tensile steel with properly sized wire diameter for maximum reliability without premature coil bind — direct OE replacement design
• Track Bar: Built from 1-3/8-inch solid steel stock; pre-assembled with bushings; bolts into factory mounting points
• Application: RAM 2500 Power Wagon (2014–2024) 4WD

Installation

• Estimated Time: 4–5 hours
• Difficulty: Moderately Easy
