Equipped with NX2 Nitro Series nitrogen-charged twin-tube shocks featuring a 1-3/8-inch high-flow piston, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish. 1-year Manufacturer's Warranty included.
Overview

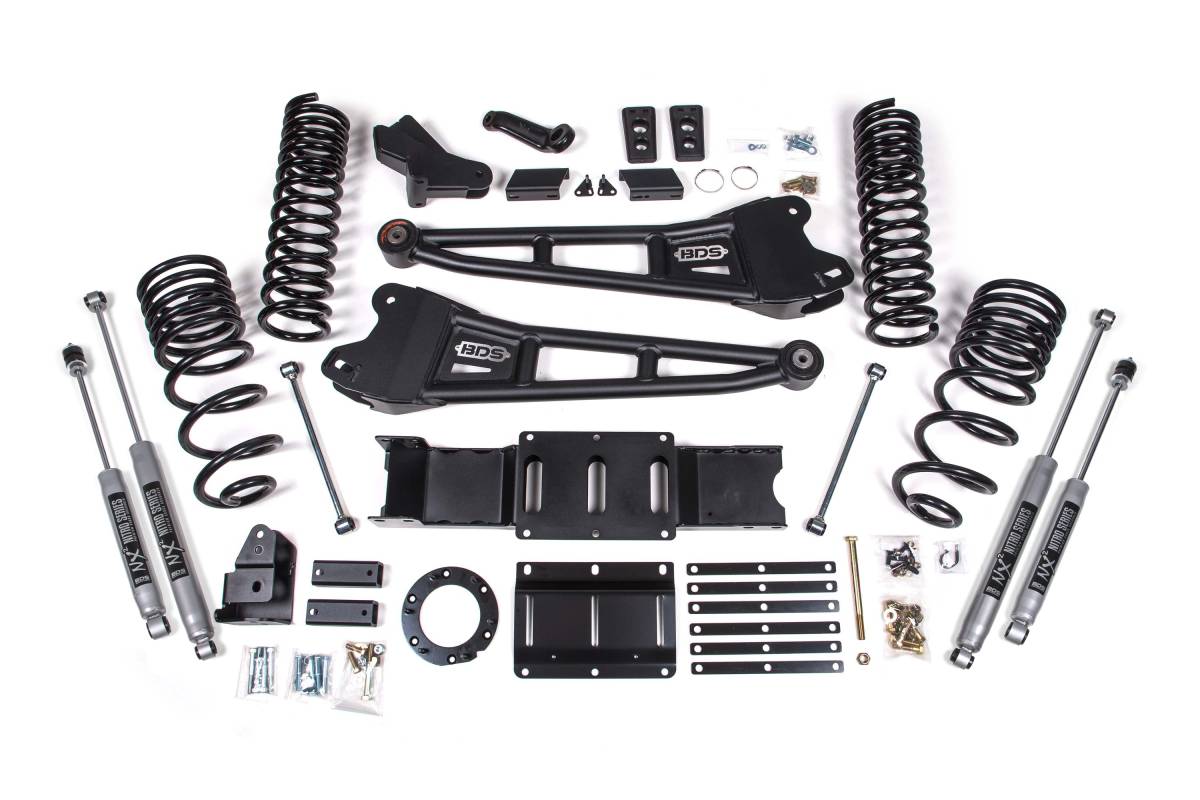

This 4-inch radius arm lift kit from BDS Suspension is designed for 2019–2026 Ram 2500 4WD gas-powered trucks. The kit provides improved stance, performance, and capability with clearance for up to 35-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar drop bracket for steering correction, sway bar relocation hardware, and brake line brackets. A transfer case indexing ring and new HD transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matched set of shocks are supplied.
Features
- Heavy-duty tubular radius arms improve strength, handling, and caster control
- High-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
- Track bar relocation brackets to re-position the front and rear axle
- Forged drop pitman arm to correct steering angles once lifted
- Front sway bar correction hardware to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
- Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks
Specifications
- Lift Height: 4 inches
- Tire Clearance: Up to 35 inches
- Radius Arms: High-strength tubular steel, factory mounting location, OE-style rubber bushing at frame mount
- Coil Springs: Full-length, gas-specific, progressive rate Pro-Ride; manufactured from high tensile steel with properly sized wire diameter
- Includes: Radius arms, front and rear coil springs, forged drop pitman arm, track bar drop bracket, sway bar relocation hardware, brake line brackets, bump stop extensions, rear sway bar links, HD transmission crossmember, transfer case indexing ring, and shocks
- Application: 2019–2026 Ram 2500 4WD Gas
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- Will NOT fit air-ride equipped models
- Gas models only
- Will NOT fit Power Wagon models
- Exhaust modification is required to clear the front driveshaft. Vehicle can be driven without the front driveshaft to an exhaust shop
