Configured with a 5 Inch Block Kit With Rear Overload, Rubber Bump Stop, and 6-Bolt Indexing Ring Kit. Select this option if your RAM 3500 is equipped with factory rear overload leaf springs. Rubber factory-style bump stops provide a hard stop for the suspension, protecting shocks and components — suited for road use and light off-roading where bump stops are engaged at low speeds.
Overview

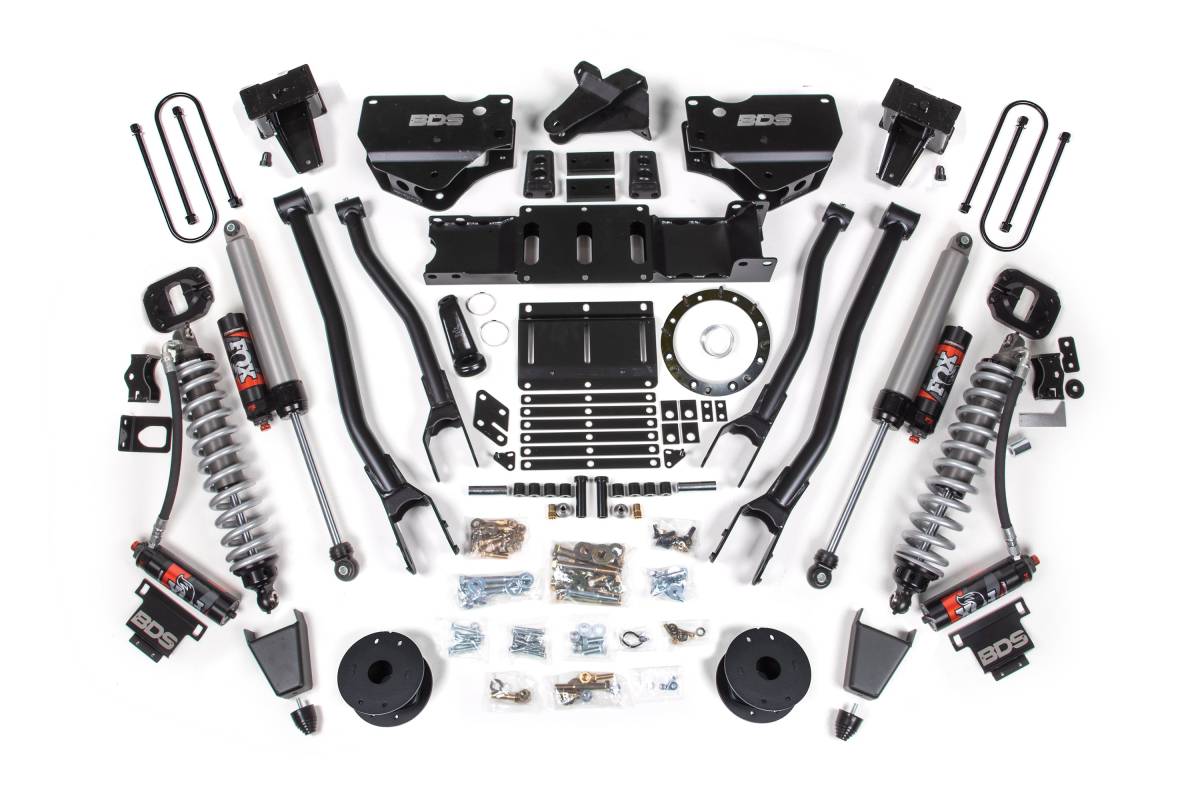

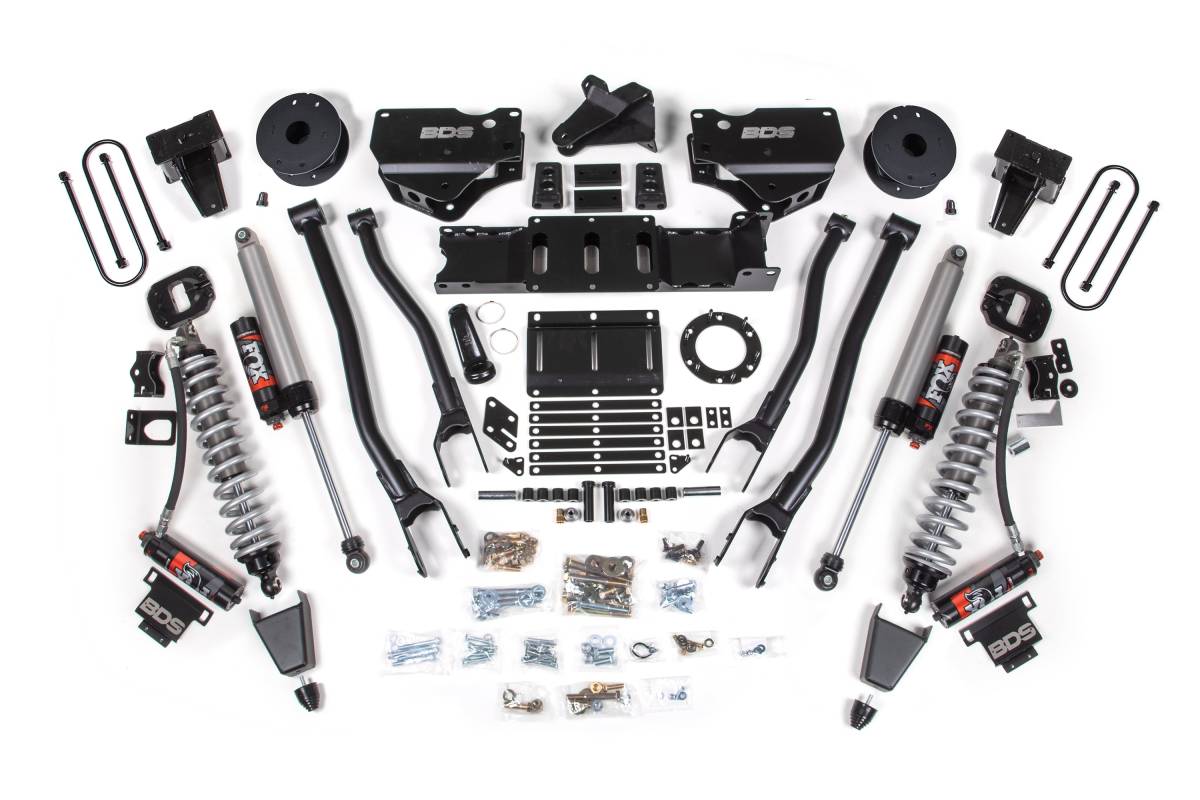

The BDS 6-Inch 4-Link Lift Kit for 2019–2024 RAM 3500 4WD Diesel trucks replaces the stock suspension with heavy-duty hardware built for serious off-road and on-road performance. The kit features heavy-duty BDS 4-Link arms for improved articulation and ground clearance, paired with a BDS Coilover Conversion Kit running FOX 2.5 Performance Elite coilovers up front for precise damping and control. FOX 2.5 Performance Elite shocks are included for the rear. An optional FOX 2.0 Hydraulic Bump Stop upgrade is available for the front to manage big impacts at full suspension travel.
Features
- FOX 2.5 Performance Elite coil-over mounts in the factory coil spring bucket
- FOX 2.5 Performance Elite rear shocks
- Optional auxiliary front shock absorber (FOX 2.0 Hydraulic Bump Stop)
- Heavy-duty tubular steel 4-Link arms correct caster while maximizing ground clearance
- Front adjustable track bar allows the front of the truck to be re-centered after lifting
- Front sway bar correction to maintain handling performance
Specifications
- Lift Height: 6 Inches
- Rear Lift: 5-Inch or 2-Inch block kit (select based on factory rear overload leaf spring configuration)
- Front Shock: FOX 2.5 Performance Elite Coil-Over
- Rear Shock: FOX 2.5 Performance Elite
- 4-Link Arms: Heavy-duty tubular steel construction
- Indexing Ring Kit: Available in 6-Bolt (standard) or 8-Bolt (Aisin transmission)
- Vehicle Fitment: 2019–2024 RAM 3500 4WD Diesel
Installation
- Estimated Time: 7–8 hours
- Difficulty: Difficult
- Required Tools: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, welding equipment
Important Notes
- Will not fit air ride equipped models
- Diesel models only
- Requires aftermarket front driveshaft due to increased wheel travel
- Dually with 8-bolt Transmission (Aisin) requires BDS122409 DEF Relocation Kit
- Mega Cabs with 8-bolt Transmission (Aisin) require BDS122409 DEF Relocation Kit
- Vehicles equipped with a Manual T-case require BDS122423 Manual Transfer Case Shifter Extension
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier Bearing Drop
