BDS 2 Inch Lift Kit | 2002-2009 Chevy Trailblazer / GMC Envoy | w/ FOX 2.0 Performance Series Shocks

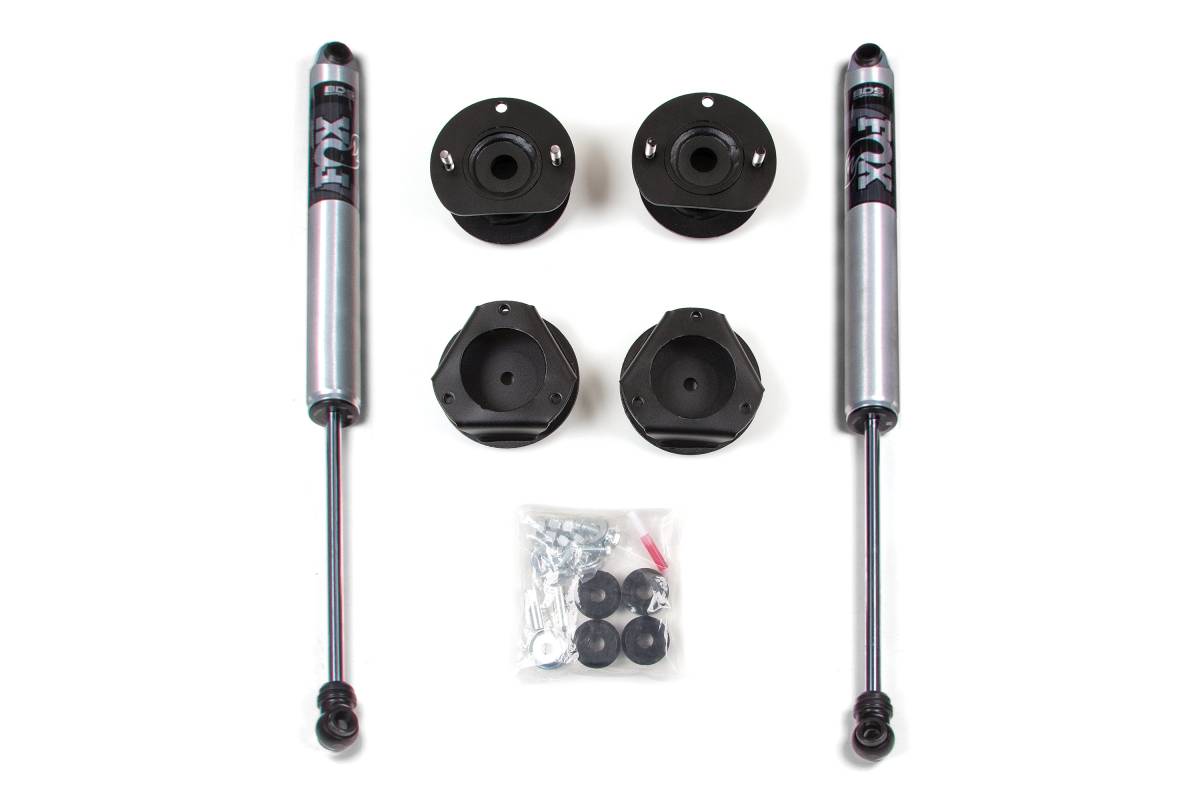

Configured with FOX 2.0 Performance Series shocks, this kit delivers maximum on- and off-road performance. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 2-inch lift kit from BDS Suspension is designed to level the 2002–2009 Chevy Trailblazer and GMC Envoy, providing additional tire clearance and improved performance. Engineered specifically for these GM SUVs, the kit avoids overextending the suspension or driveline angles at full suspension droop. A one-piece mount increases the pre-load of the strut as well as the overall length of the strut assembly, preventing ball joint or CV damage. The kit includes steel top mount strut spacers, rear coil spring mounts, and custom-tuned shocks available in NX2 Nitro or FOX 2.0 Performance Series configurations.

Features

• Easy, 100% bolt-on installation
• Maintains factory-like ride quality
• Includes steel top mount strut spacers and rear coil spring mounts
• One-piece mount design increases strut pre-load and overall strut assembly length

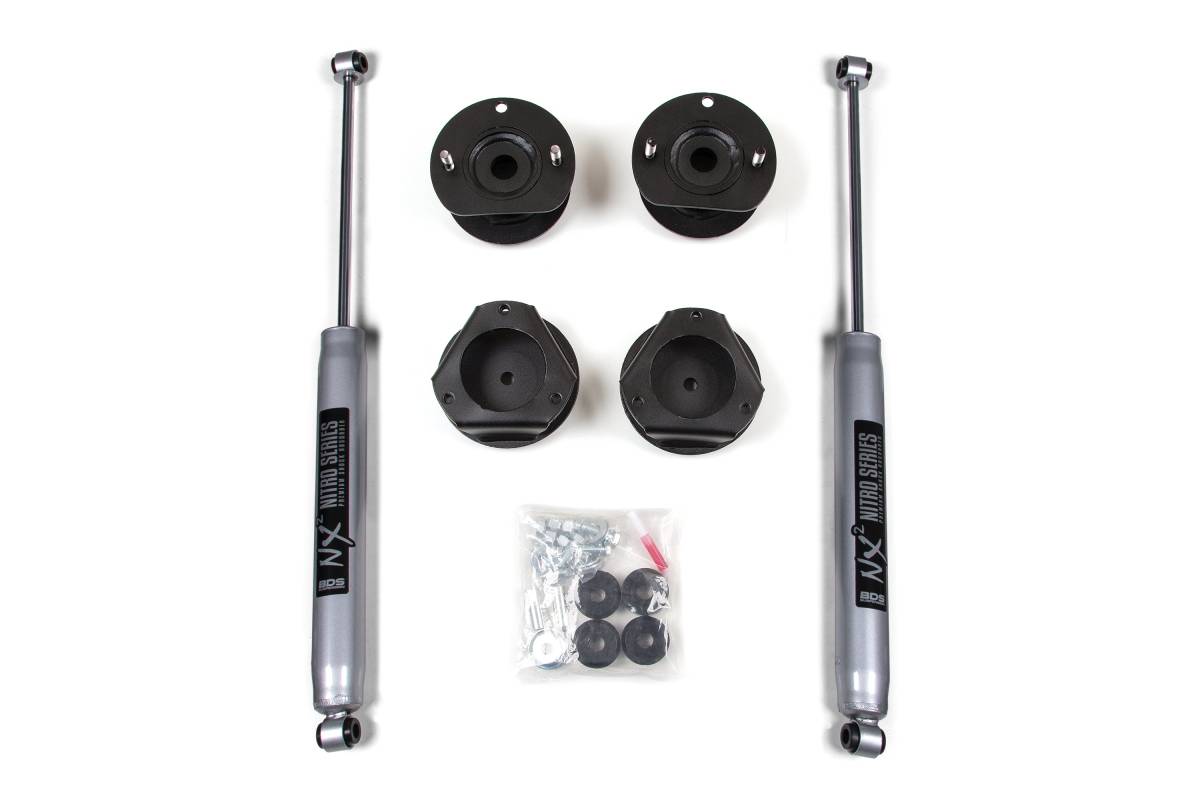

• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance

Installation

• Estimated Time: 3–4 hours
• Difficulty: Moderately Easy
• Tools Required: Pitman Arm Puller, Strut Compressor

Important Notes

• Strut compressor required for installation
• Will not fit vehicles equipped with a rear air-ride system
• Will fit Ext and XL models
• Front only kit available as part #121201
