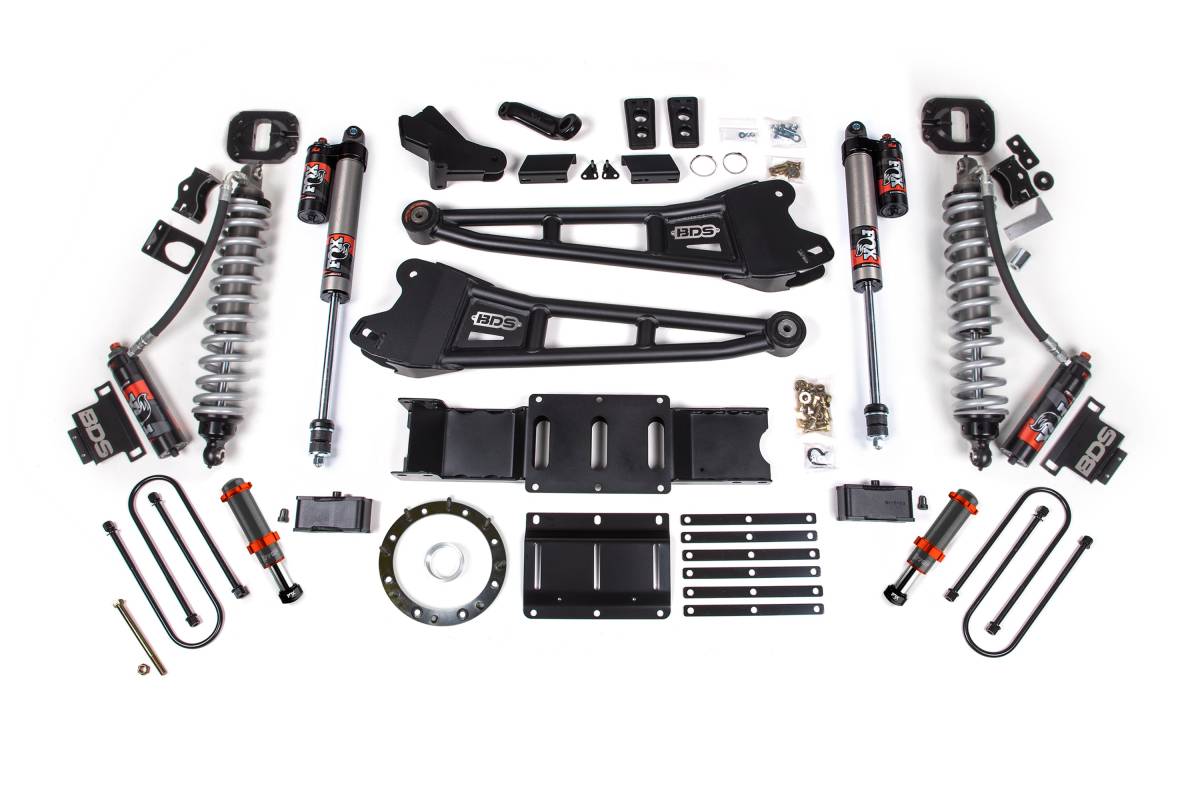

Rear lift configured with a 5 Inch Block Kit With Rear Overload Leafs. Front bump stop upgraded to a FOX 2.0 Factory Race Series Hydraulic Bump Stop, providing an additional layer of shock absorption at full suspension travel — ideal for aggressive off-road use at speed. Includes 8-Bolt indexing ring kit with internal shaft seal extension and new shaft seal, for Ram 3500 trucks equipped with the optional Aisin heavy-duty 6-speed transmission.
Overview

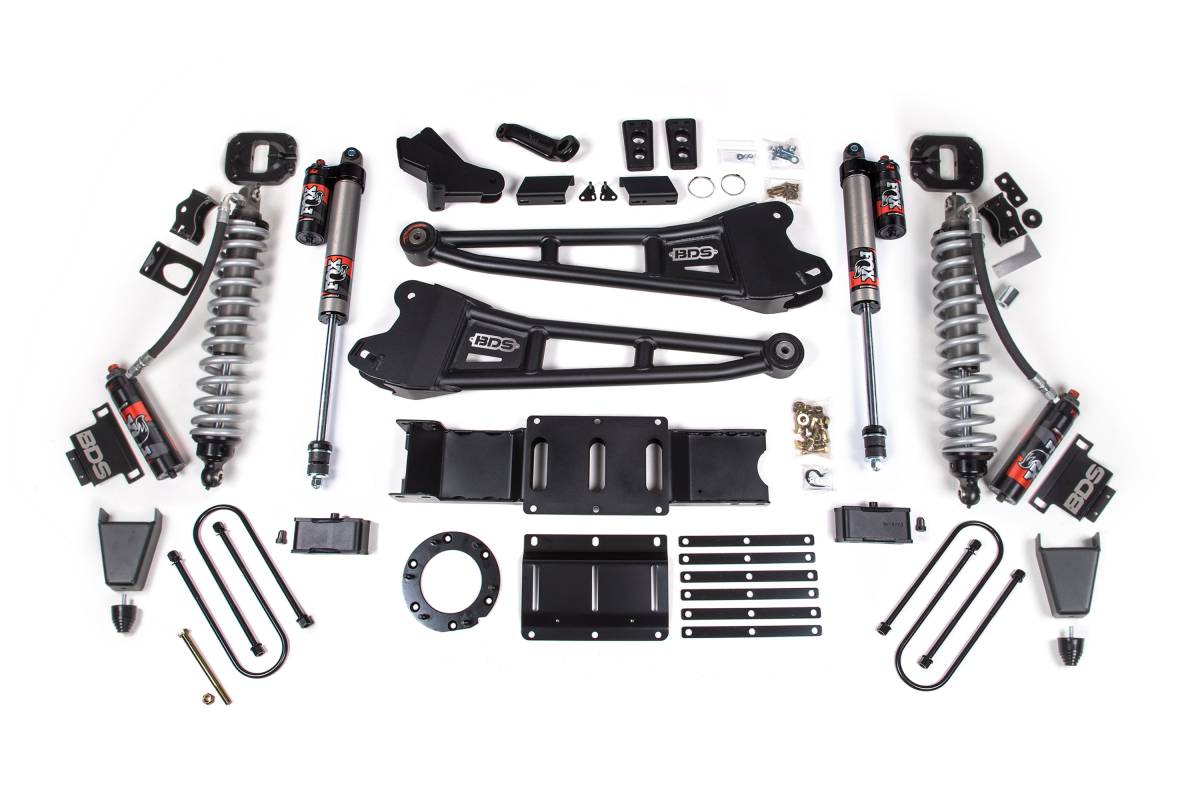

The BDS 6-Inch Radius Arm Lift Kit for 2019–2024 Ram 3500 4WD Diesel trucks replaces the factory suspension with heavy-duty components engineered for strength and articulation. Heavy-duty BDS radius arms replace the stock setup up front, while the BDS Coilover Conversion Kit mounts FOX 2.5 Performance Elite coilovers in the factory coil spring bucket for improved damping and ride quality on and off the road. FOX Performance Elite shocks are fitted in the rear. An optional FOX 2.0 Hydraulic Bump Stop is available for additional front-end impact absorption at full suspension travel.
Features
- FOX 2.5 Performance Elite coil-overs mount in the factory coil spring bucket
- FOX 2.5 Performance Elite rear shocks
- Optional auxiliary front shock absorber (FOX 2.0 Hydraulic Bump Stop)
- Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance
- Front adjustable track bar allows the front axle to be re-centered after lifting
- Front sway bar correction to maintain handling performance
Specifications
- Lift Height: 6 inches (front coilover conversion) / 5 inches (rear block kit)
- Front shock: FOX 2.5 Performance Elite coil-over
- Rear shock: FOX 2.5 Performance Elite
- Radius arms: Heavy-duty tubular steel
- Indexing ring options: 6-Bolt (standard) or 8-Bolt (Aisin transmission)
- Rear block kit options: With or without factory rear overload leafs
- Front bump stop options: Rubber factory-style or FOX 2.0 Factory Race Series Hydraulic Bump Stop
Installation
- Estimated Time: 7–8 hours
- Difficulty: Difficult
- Tools Required: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, welding equipment
Important Notes
- Will not fit air ride equipped models
- Diesel models only
- Requires aftermarket front driveshaft due to increased wheel travel
- Dually with 8-bolt Transmission (Aisin) requires BDS122409 DEF Relocation Kit
- Mega Cabs with 8-bolt Transmission (Aisin) require BDS122409 DEF Relocation Kit
- Vehicles equipped with a Manual T-case require BDS122423 Manual transfer case shifter extension
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier bearing drop
