Configured for trucks without factory rear overload leaf springs, with an 8-bolt indexing ring for the optional Aisin heavy-duty 6-speed transmission (which uses a different transfer case mounting bolt pattern). This kit also includes an internal shaft seal extension and new shaft seal. Shocks: FOX 2.5 Performance Elite — 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated alloy steel shaft, external reservoir, DSC Dual Speed Compression Adjuster, fully serviceable.
Overview

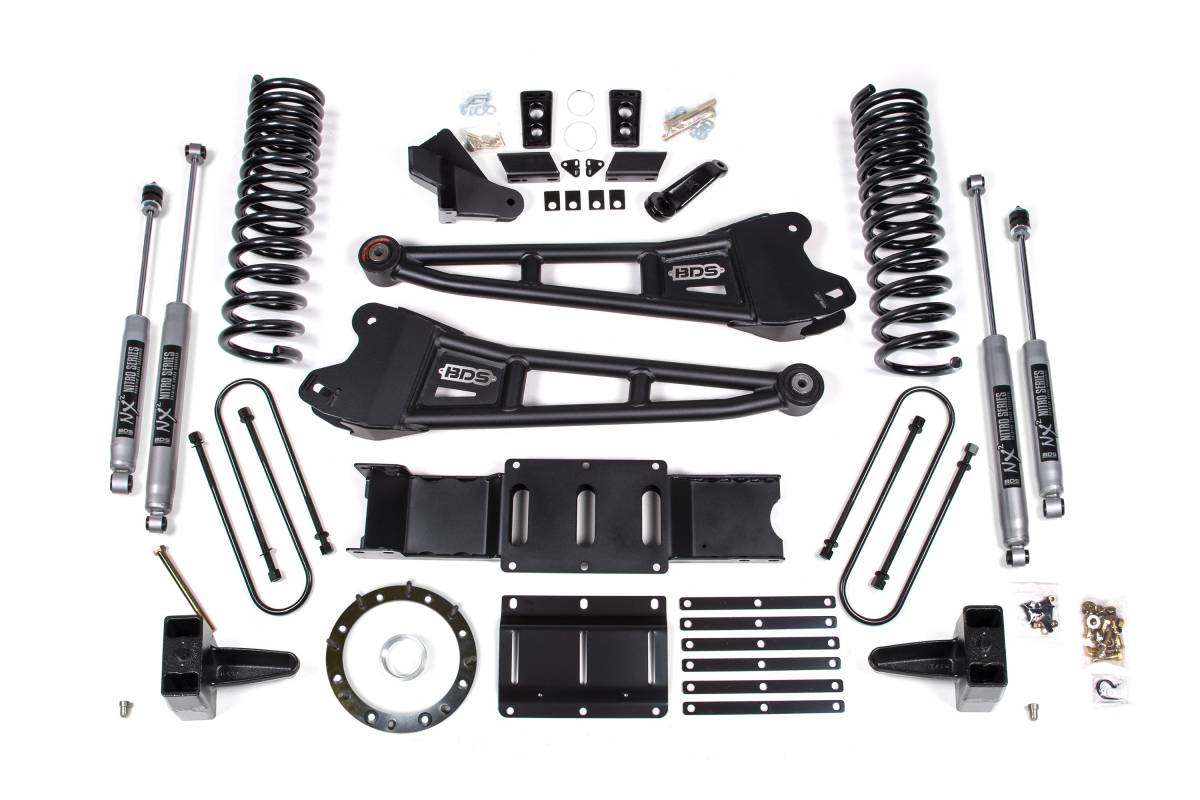

This 6-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 3500 diesel-powered 4WD trucks. The kit improves stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, it includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, and brake line brackets. A transfer case indexing ring and new HD transmission crossmember are included to correct front driveline angles and allow use of the factory front driveshaft. In the rear, the kit uses a high-strength steel lift block, longer U-bolts, and a matched set of shocks.
Features
- Heavy-duty tubular radius arms improve strength, handling, and caster control
- Diesel-specific, full-length progressive rate Pro-Ride coil springs for correct lift height and smooth ride on any terrain
- Front track bar relocation bracket to re-center and reposition the front axle
- Forged drop pitman arm to correct steering angles after lift
- Front sway bar relocation to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
- Rear high-strength steel lift block and longer U-bolts
- Brake line brackets included
- NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks available (selected at time of purchase)
- Rear lift box kit selection based on whether the vehicle has factory rear overload leaf springs
- Indexing ring available in 6-bolt (standard) or 8-bolt (Aisin transmission)
Installation
- Estimated Installation Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- Dually with 8-bolt Transmission (Aisin): requires BDS122409 DEF Relocation Kit
- Mega Cabs with 8-bolt Transmission (Aisin): requires BDS122409 DEF Relocation Kit
- Vehicles equipped with a Manual T-case: requires BDS122423 Manual Transfer Case Shifter Extension
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing): requires BDS122406 Carrier Bearing Drop
