BDS 6 Inch Lift Kit w/ Radius Arm | FOX 2.5 Coil-Over Conversion Performance Elite | Ram 2500 (2019-2024) 4WD Diesel | Rubber Bump Stop

Configured with Rubber Bump Stop — factory-style rubber bump stops provide a firm, reliable hard stop for the suspension, protecting shocks and other components. Best suited for road use and light off-roading where bump stops are engaged at low speeds.

Overview

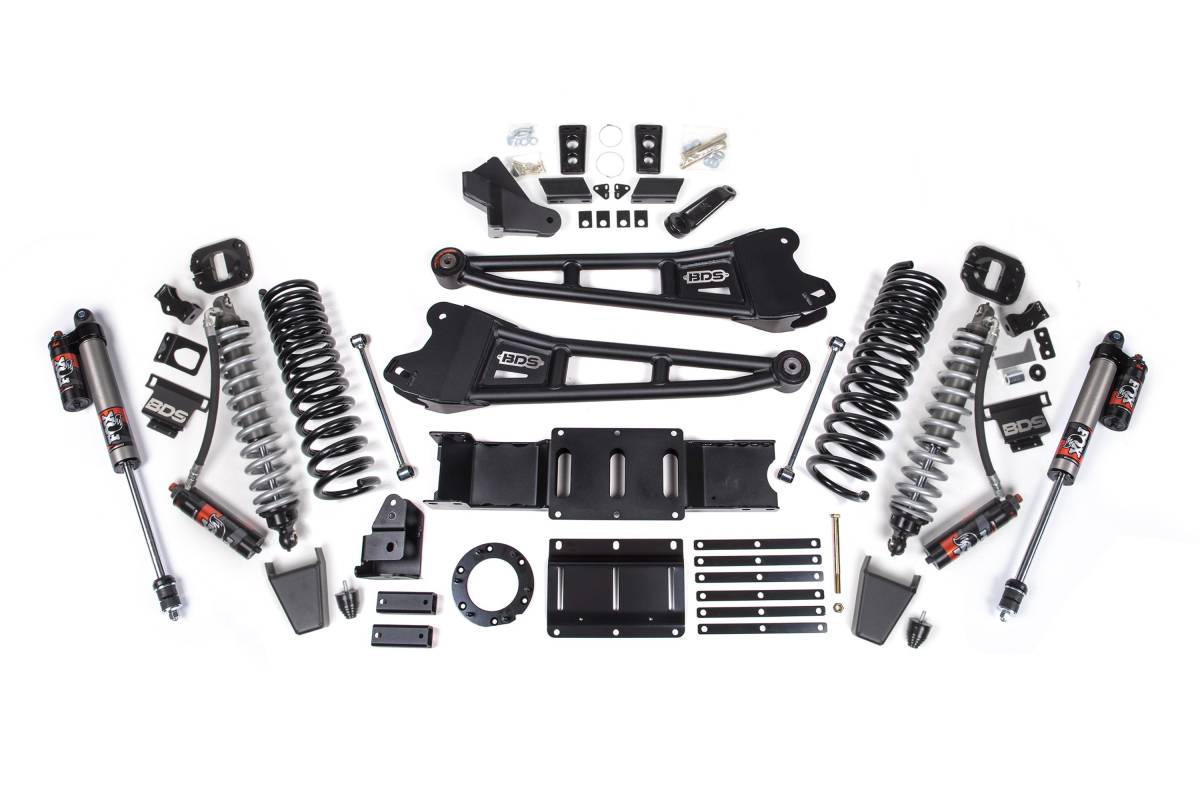

The BDS 6" Radius Arm Lift Kit for the Ram 2500 (2019–2024) 4WD Diesel replaces the stock suspension setup with heavy-duty components engineered for demanding trail and overland use. Heavy-duty BDS radius arms improve articulation and strength up front, while the BDS Coilover Conversion Kit — fitted with FOX 2.5 Performance Elite coilovers — delivers precise damping and improved ride quality on and off road. FOX 2.5 Performance Elite shocks are fitted at the rear for consistent, controlled performance across varied terrain. An optional FOX 2.0 hydraulic bump stop upgrade is available for the front to provide additional impact absorption at full suspension travel.

Features

• FOX 2.5 Performance Elite coil-over mounts in the factory coil spring bucket
• FOX 2.5 Performance Elite rear shocks
• Optional auxiliary front shock absorber (FOX 2.0 Hydro Bump Stop)
• Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance
• Front adjustable track bar allows re-centering of the front axle after lift
• Front sway bar correction to maintain handling performance

Installation

• Estimated Time: 7–8 hours
• Difficulty: Difficult
• Required Tools: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment

Important Notes

• Will not fit air ride equipped models
• Diesel models only
• Not designed for Power Wagon models
• Requires aftermarket driveshaft due to increased wheel travel
