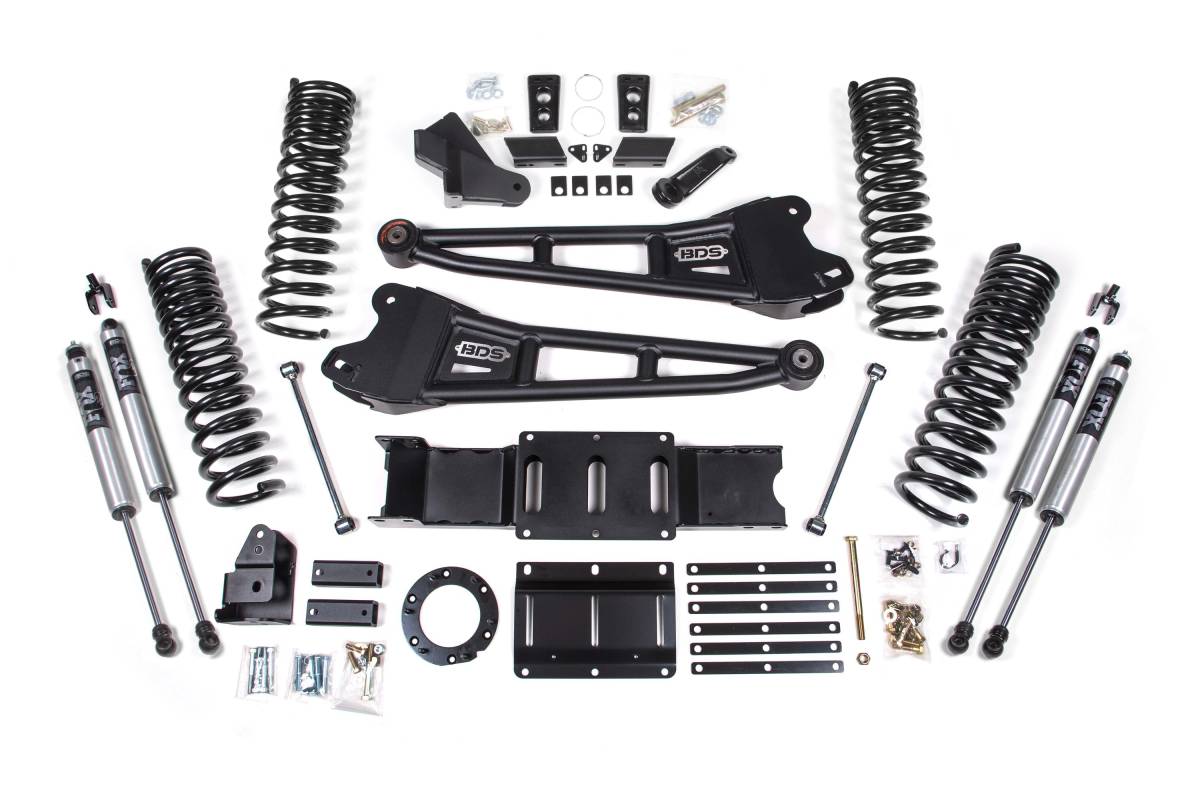

Configured with FOX 2.0 Performance Series shocks front and rear. Features a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving. Long-lasting clear anodized finish.
Overview

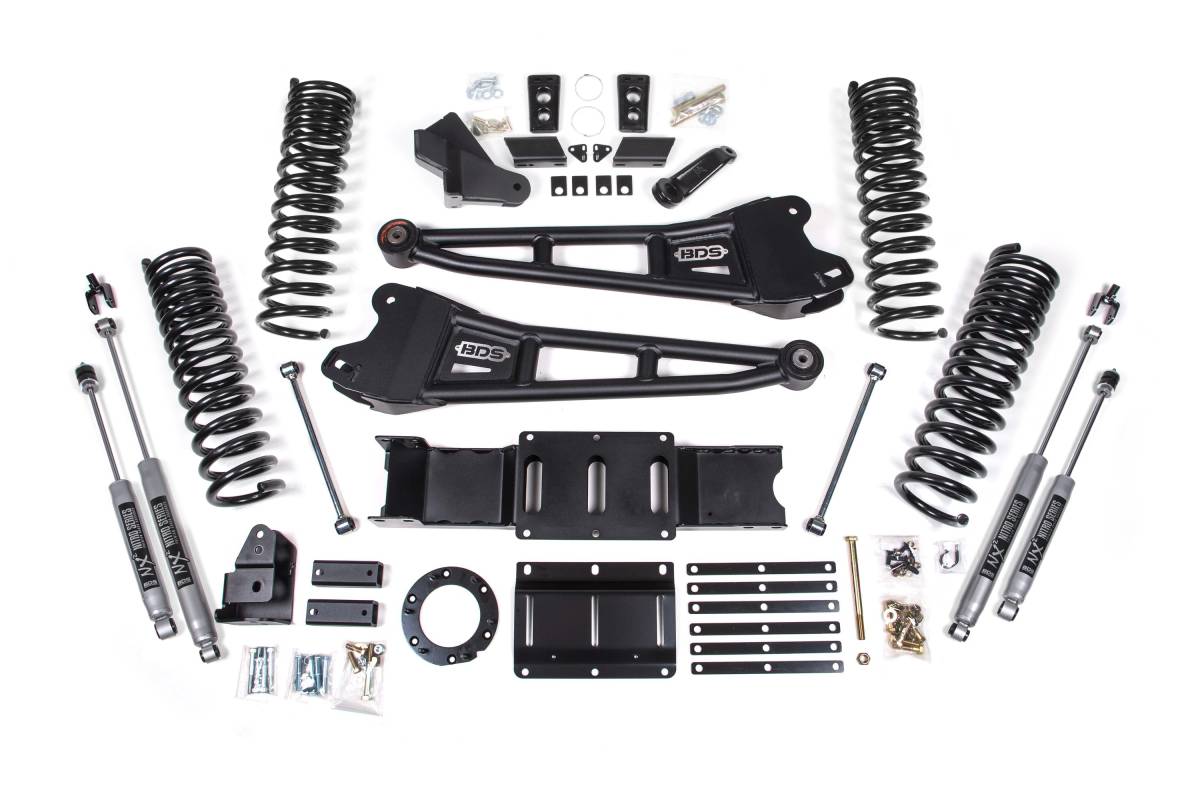

This 6-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 2500 4WD diesel trucks. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new HD transmission crossmember are included to allow use of the factory front driveshaft at this lift height. The rear of the kit utilizes progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of rear shocks.
Features
- Heavy-duty 4-link radius arms improve strength, handling, and caster control
- High-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
- Diesel-specific front coil springs for correct lift height and load rating
- Track bar relocation brackets front and rear to re-center axle positioning
- Forged drop pitman arm to correct steering angles when lifted
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
- Brake line brackets included
- Bump stop extensions included for rear suspension
- Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks
Specifications
- Lift Height: 6 inches
- Tire Clearance: Up to 37 inches
- Application: 2019–2024 Ram 2500 4WD Diesel
- Radius arms: High-strength tubular construction, factory mount location, caster adjustable, OE-style rubber bushing at frame mount
- Coil springs: Full-length, progressive rate, manufactured from high tensile steel with properly sized wire diameter
- Shock options: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite
Installation
- Estimated Time: 8–10 hours
- Difficulty: Difficult
Important Notes
- Will NOT fit air-ride equipped models
- Diesel models only
