BDS 4 Inch Lift Kit w/ 4-Link Conversion | Ram 2500 (2019-2024) 4WD Diesel | NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks front and rear. These nitrogen-charged, twin-tube shocks feature a 1-3/8-inch high-flow piston, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish. 1-year Manufacturer's Warranty.

Overview

BDS Suspension engineered this 4-inch lift kit with 4-Link conversion for the 2019–2024 RAM 2500 diesel-powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to lift your truck and provide clearance for up to 35-inch tires.

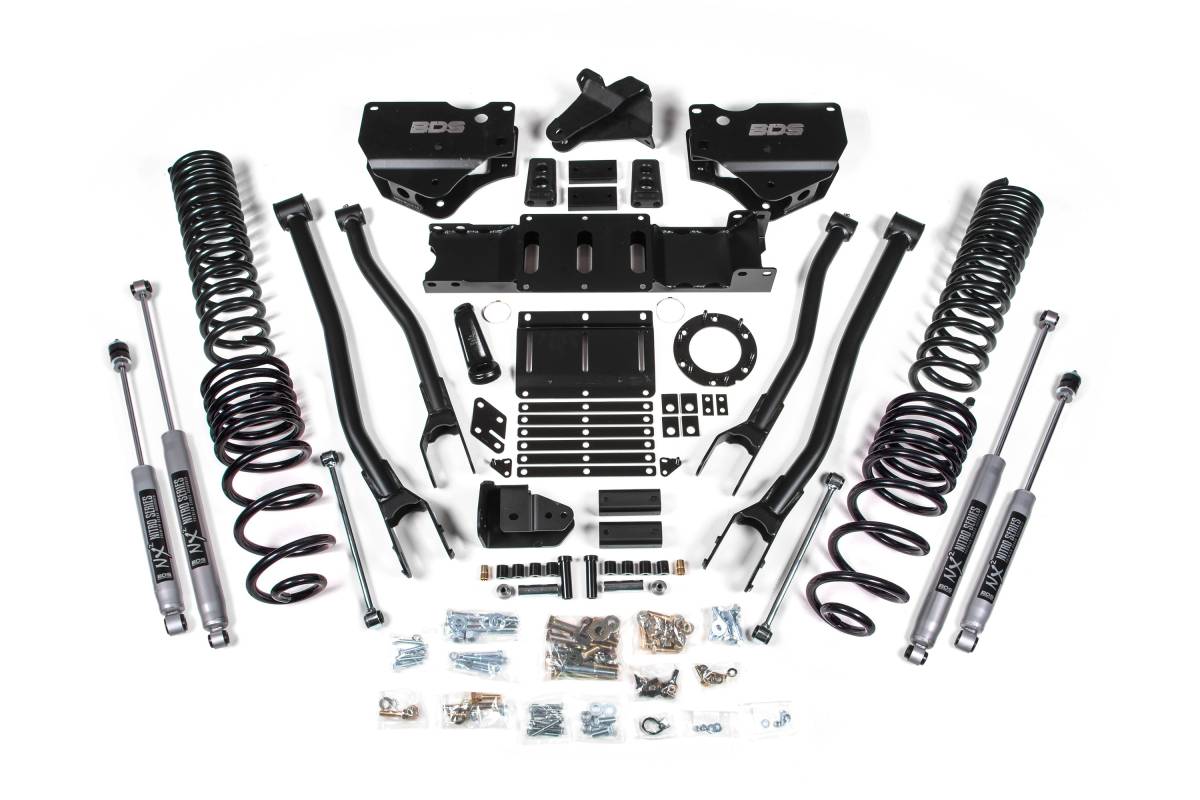

Up front, the kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit utilizes progressive rate Pro-Ride coil springs, a track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links, and a matching set of shocks.

4-Link Conversion

The factory stamped steel radius arms are converted to a BDS 4-Link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets that mount HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

Full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied front and rear to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high tensile steel as direct OE replacements, these springs are engineered with properly sized wire diameter for maximum reliability without premature coil bind.

Steering Correction

A forged drop pitman arm minimizes the steering angle once lifted, paired with a heavy duty track bar drop bracket to keep steering and axle positioning in phase through suspension travel while recentering the front axle.

Features

• Heavy duty 4-Link arms improve strength, handling, and caster control
• High-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Track bar relocation brackets to re-position the axle front and rear
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Choice of BDS NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks
• Provides clearance for up to 35-inch tires

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult

Important Notes

• Will NOT fit air-ride equipped models
• Diesel models only
