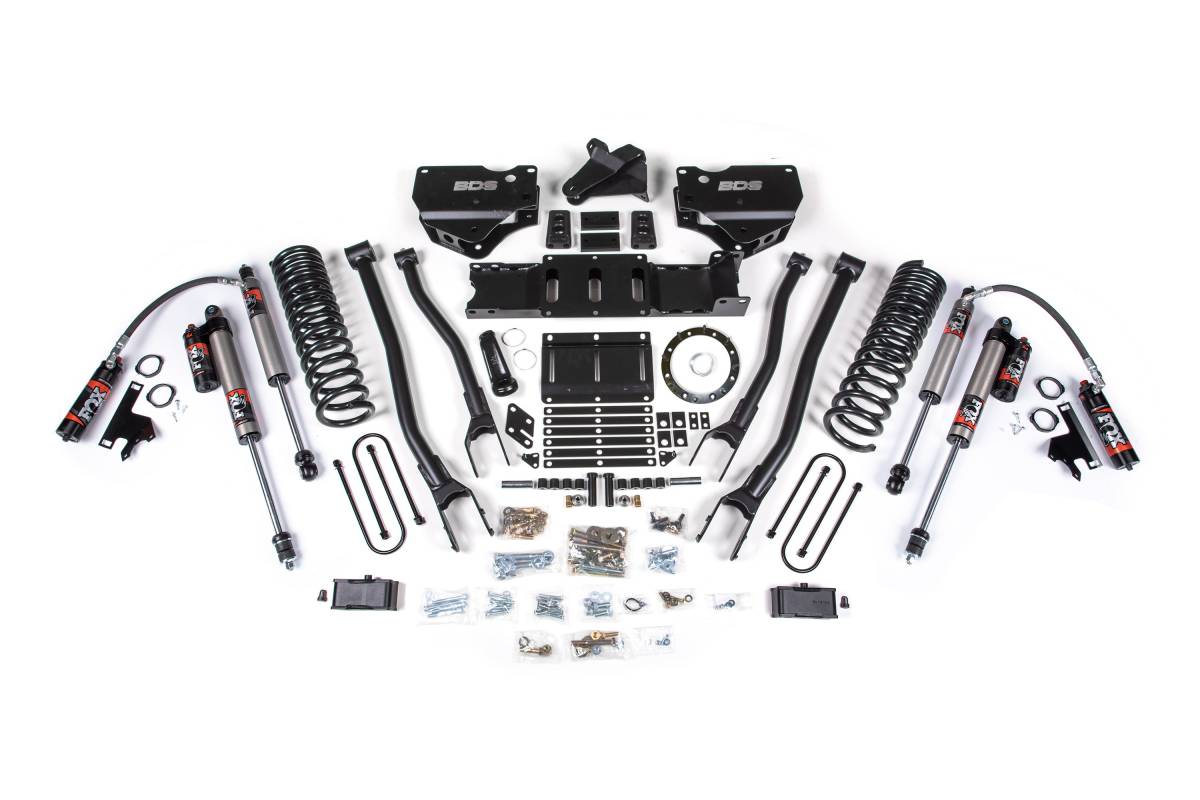

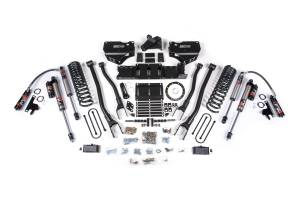

BDS 4 Inch Lift Kit w/ 4-Link | Ram 3500 Diesel (2019-2024) 4WD | 8-Bolt | FOX 2.5 Performance Elite

Includes the 8-Bolt indexing ring kit designed for Ram 3500 trucks equipped with the optional Aisin heavy-duty 6-speed transmission, which utilizes a different transfer case mounting bolt pattern. Also includes an internal shaft seal extension and new shaft seal. Paired with FOX 2.5 Performance Elite shocks featuring a 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design, DSC Dual Speed Compression Adjuster, CNC machined 6061-T6 aluminum mounting ends, and application-specific valving. Fully serviceable.

Overview

BDS Suspension engineered this 4-inch lift kit with 4-Link conversion for the 2019–2024 Ram 3500 diesel-powered 4WD truck to improve stance, performance, and capability. The kit includes everything necessary to achieve proper lift height with clearance for up to 37-inch tires.

Up front, the kit features diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. At lift height, the transfer case is indexed to allow use of the factory front driveshaft; an indexing ring and new transmission crossmember are included for this purpose. In the rear, the kit utilizes a high-strength fabricated lift block, longer U-bolts, and a matched set of shocks.

4-Link Conversion

The BDS 4-Link conversion replaces the factory stamped steel radius arms to optimize suspension geometry for improved handling, strength, and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets to mount HD upper and lower control arms, correcting axle positioning and limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, dual-rate Pro-Ride coil springs provide the correct lift height and a smooth, predictable ride across various terrains.

Steering Correction

A forged drop pitman arm minimizes steering angle after the lift. A heavy-duty track bar drop bracket keeps the steering components in phase through suspension travel while recentering the front axle.

Features

• Heavy-duty 4-Link for improved strength, handling, and caster control
• Diesel-specific dual-rate Pro-Ride coil springs for a smooth ride on any terrain
• Front track bar relocation bracket to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Clearance for up to 37-inch tires

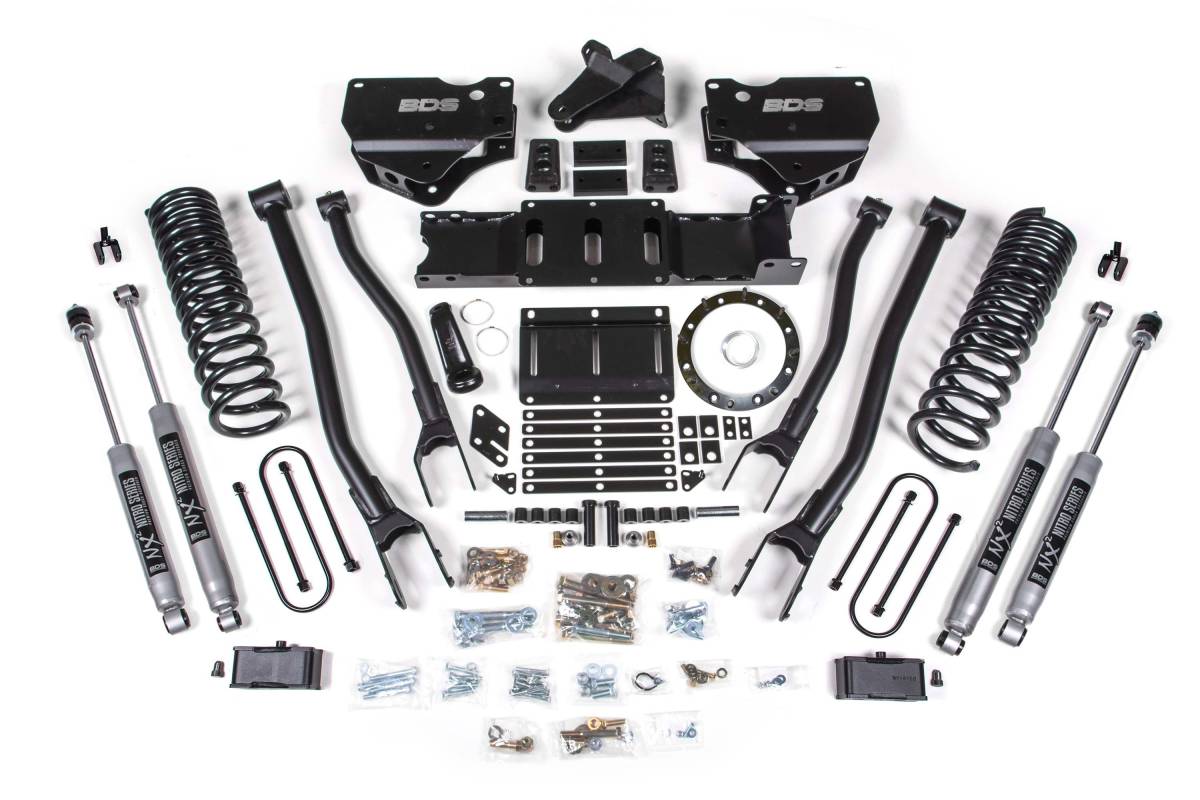

• Choice of NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 37 inches
• 4-Link bracket material: High-strength 1/4-inch steel
• Coil springs: Full-length, dual-rate Pro-Ride design, diesel-specific
• Rear lift: High-strength fabricated lift block with longer U-bolts
• Indexing ring: Available in 6-bolt (standard) or 8-bolt (Aisin transmission)

Installation

• Estimated Time: 7–9 hours
• Difficulty: Moderate
• Tools Required: Cut-Off Wheel or equivalent, Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

Dually with 8-bolt Transmission (Aisin), require BDS122409 DEF Relocation Kit. Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 DEF Relocation Kit. Vehicles equipped with a Manual T-case require BDS122423 Manual transfer case shifter extension. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier bearing drop.
