BDS 2 Inch Leveling Kit | FOX 2.0 Coilover & HD Upper Control Arms | Ram 1500 (2019-2026) 4WD

Overview

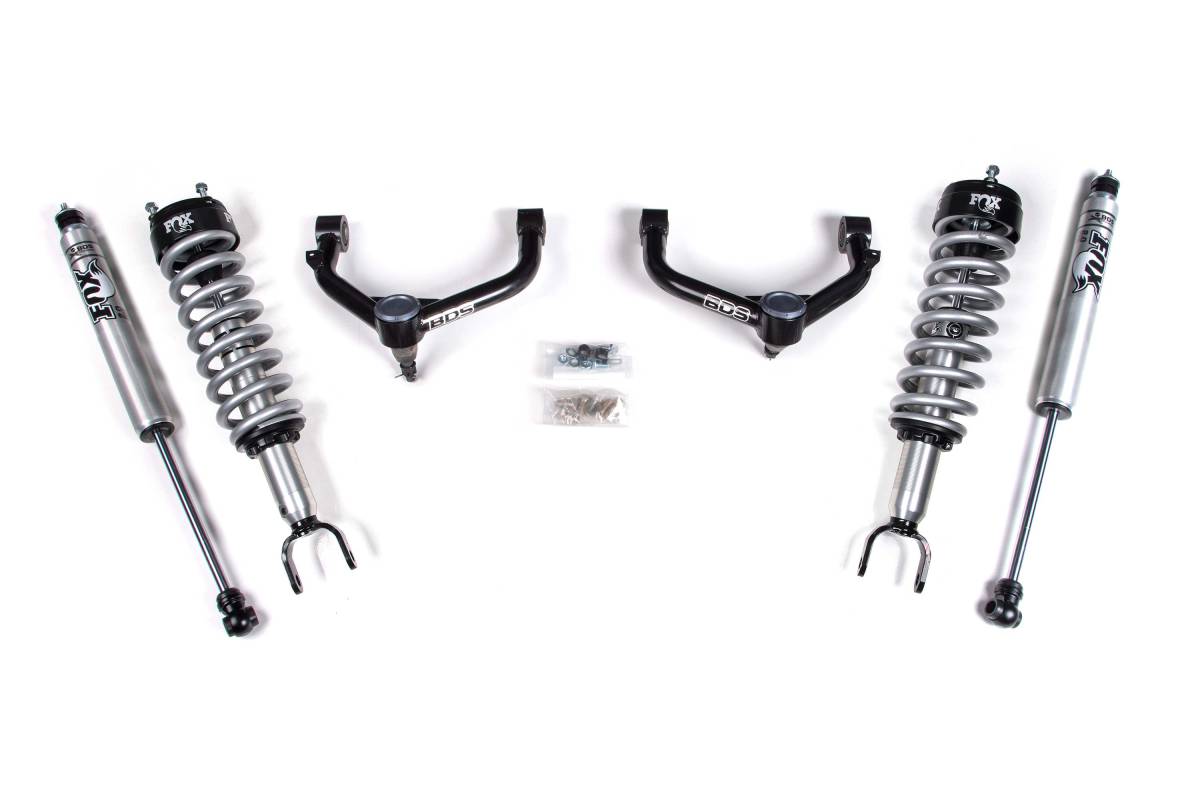

This 2-inch leveling kit for the 2019–2026 RAM 1500 4WD combines FOX 2.0 Performance Series coil-over shocks with heavy duty tubular upper control arms to improve stance, ride quality, and off-road capability. The kit includes everything needed for installation and provides clearance for up to 33-inch tires. Up front, FOX 2.0 coil-overs replace the factory struts while the heavy duty upper control arms correct ball joint positioning and increase suspension travel. In the rear, a matching set of FOX 2.0 Performance shocks completes the setup for a consistent, smooth ride.

Features

• FOX 2.0 Performance Series coil-over struts — direct bolt-in replacement for the factory strut with improved damper performance on and off road
• FOX 2.0 Performance Series IFP rear shocks included for a smooth, balanced ride
• Heavy duty tubular upper control arms increase strength and allow for more suspension travel
• UCAs use 1.5" OD x .120-wall tubular construction with indexed ball joint cup for corrected ball joint positioning, additional down travel, and camber adjustment
• Frame mounting ends feature durometer-specific rubber bushings for maintenance-free operation
• Greaseable ball joints at the outer end for smooth, quiet operation and superior durability
• UCAs finished in durable black powder coat with billet aluminum dust cap
• Factory Protection Plus drivetrain warranty included
• 100% bolt-on installation — no cutting or welding required

Specifications

• Front Lift Method: Coil-Over
• Front Lift Height: 2"
• Rear Lift Method: Stock
• Rear Lift Height: 0"
• Total Lift Height Range: 2"–3.5"
• Shocks Included: Yes
• FOX 2.0 coil-over body: 2.0" extruded and machined 6061-T6 aluminum
• FOX 2.0 shaft: 5/8" hard chrome plated, heat treated alloy
• FOX 2.0 features internal floating piston (IFP) to eliminate oil aeration
• Coil-overs come preloaded with springs and top-plate for easy installation

Installation

• Estimated Installation Time: 3–4 hours
• Installation Difficulty: Easy

Important Notes

• Fits 4WD models only.
• Vehicles equipped with the "Offroad or Rebel Package" will not achieve the full 2" of lift; net ride height change will be approximately 1" above stock.
• Will not fit vehicles equipped with factory Air Ride suspension.
• Will NOT fit 2019–2022 RAM 1500 Classic models — refer to the 2018 kit listings.
