This configuration pairs the front FOX 2.5 Performance Elite coil-overs with FOX 2.0 Performance Series rear shocks. The 2.0-inch impact extruded aluminum body shocks feature an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving. Finished in a long-lasting clear anodized finish.
Overview

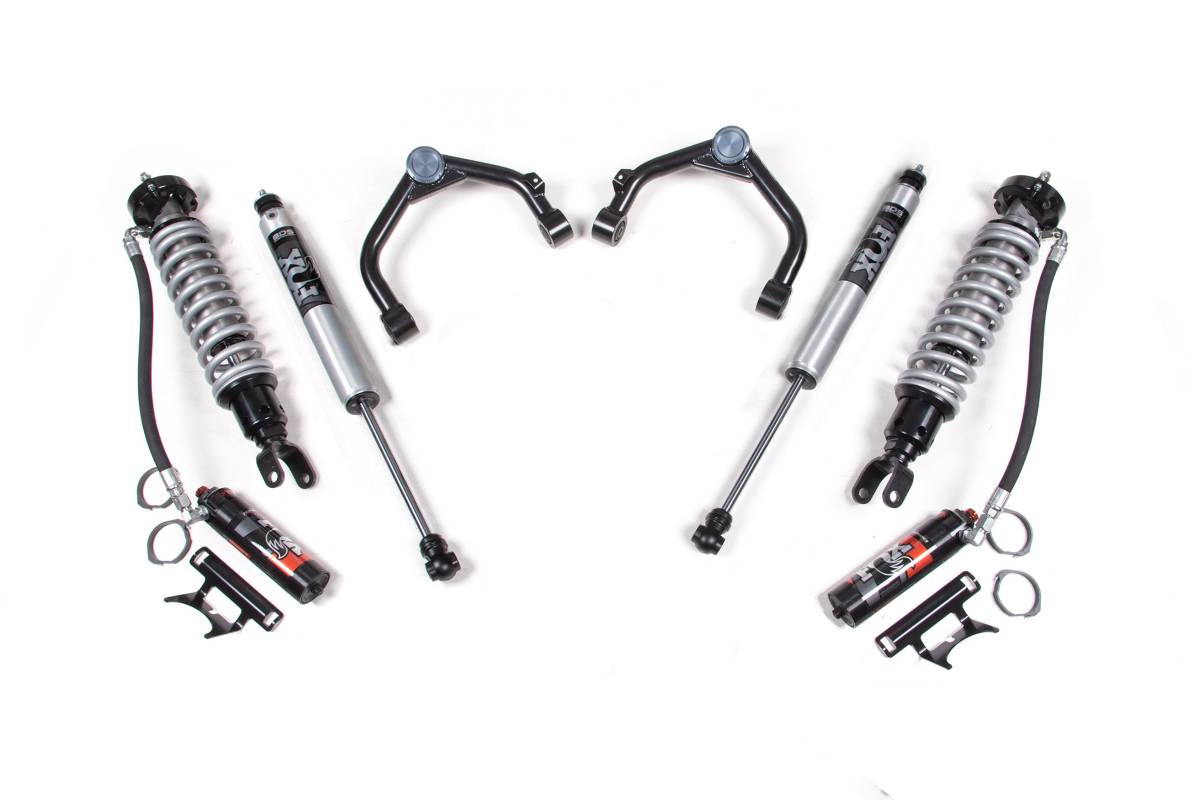

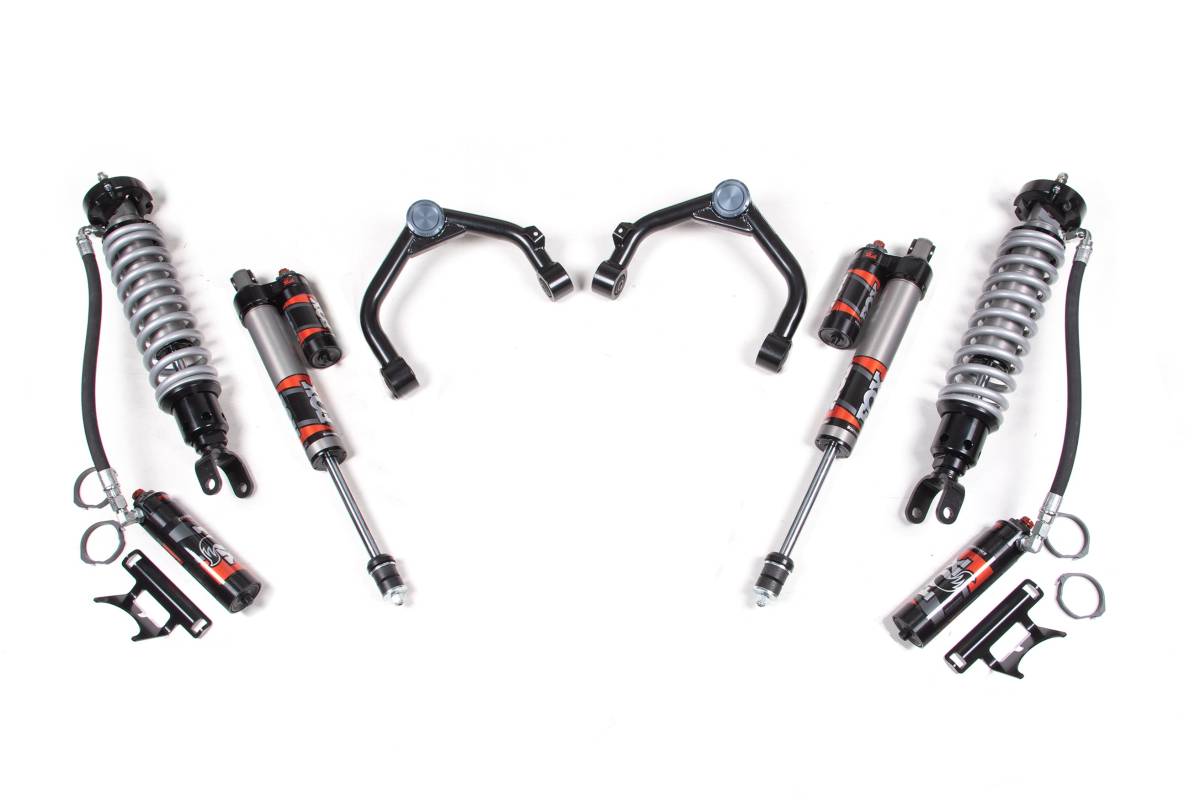

This 2-inch leveling kit for the 2019–2026 RAM 1500 4WD is designed to improve stance, performance, and capability while providing clearance for up to 33-inch tires. Up front, the kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength and suspension travel. The rear is equipped with a complementary set of FOX shocks (selected by variant) for a smooth, controlled ride. All components are engineered for bolt-on installation straight out of the box.
Features
- FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
- DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and allow for more suspension travel
- Factory Protection Plus drivetrain warranty included
- Easy, 100% bolt-on installation
Specifications
- Lift height: 2 inches
- Front shocks: FOX 2.5 Performance Elite remote reservoir coil-overs
- 2.5-inch impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir separates shock oil from high-pressure nitrogen
- DSC — Dual Speed Compression Adjuster standard (10 low-speed, 12 high-speed compression levels)
- Black anodized aluminum reservoir for increased cooling efficiency
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
- Upper Control Arms (UCAs):
- 1.5-inch OD x .120-wall tubular construction
- Indexed ball joint cup corrects ball joint positioning for additional down travel and camber adjustment
- Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
- Greaseable ball joint at outer end for smooth, quiet operation and superior durability
- Durable black powder coat finish with billet aluminum dust cap
- Tire clearance: up to 33 inches
Installation
- Estimated Installation Time: 3–4 hours
- Difficulty: Easy
- Installation Type: 100% bolt-on
Important Notes
- Fits 4WD models only.
- Vehicles equipped with an "Offroad or Rebel Package" will not achieve the full 2 inches of lift; net ride height change will be approximately 1 inch above stock.
- Will not fit vehicles equipped with factory Air Ride.
- Will NOT fit 2019–2022 RAM 1500 Classic models — refer to the 2018 kit listings.
- 2025 Ram 1500 Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
