Configured with FOX 2.0 Performance Series rear shocks and Standard OE knuckles. Select this option for Ram 1500 4WD models without factory 22" wheels (build codes WPM or WPZ).
Overview

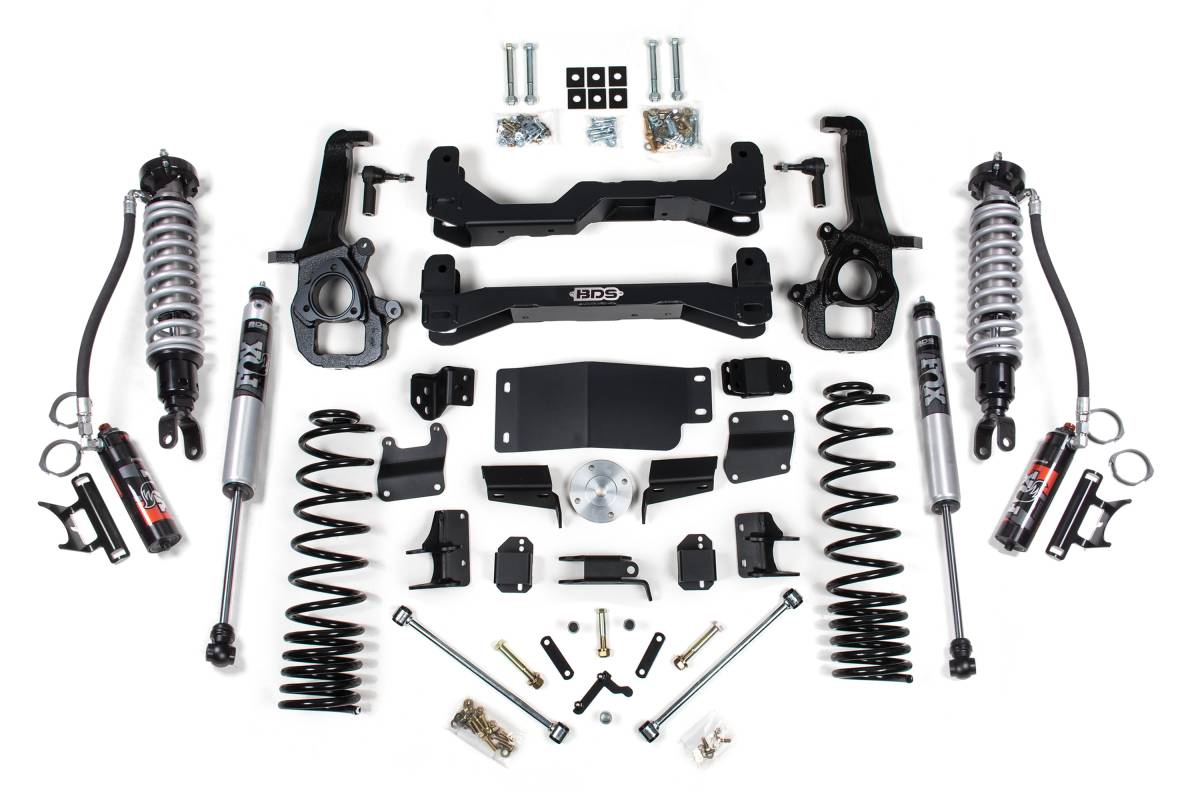

This 6-inch coil-over suspension lift kit for the 2019–2024 Ram 1500 4WD is engineered by BDS Suspension and features FOX 2.5 Performance Elite coilover shocks up front. Designed to improve stance, performance, and capability, the kit includes everything needed to run up to 37-inch tires while maintaining proper suspension and steering geometry for smooth on-road handling.
Up front, the kit utilizes FOX 2.5 coilover shocks, high-arched 1/4-inch-thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates. Steering geometry is corrected at the new ride height using CNC-machined ductile iron steering knuckles and replacement tie rod ends, ensuring ESC system compatibility. Sway bar drops, bump stop extensions, stainless steel braided brake lines, and CV spacers are also included for a comprehensive front suspension upgrade.
In the rear, the kit uses progressive-rate Pro-Ride coil springs, upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Rear shock options are available at configuration.
Features
- FOX 2.5 Performance Elite coilover shocks designed for increased travel and absorption of rough terrain
- DSC adjuster provides precise tuning with 10 separate low-speed and 12 high-speed compression levels via two adjuster knobs
- High clearance crossmember design with 1/4-inch-thick laser-cut steel maximizes ground clearance
- CNC-machined ductile iron steering knuckles maintain ESC system compliance
- Heavy-duty skid plate system for improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX performance series IFP gas rear shocks to improve ride and off-road performance (variant dependent)
- Progressive-rate Pro-Ride rear coil springs
- Rear upper control arm relocation brackets to correct pinion angle
- Track bar relocation bracket to correct axle positioning
- Stainless steel braided brake lines included
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 6 inches
- Tire Clearance: Up to 37 inches
- Front Shocks: FOX 2.5 Performance Elite Coilover with remote reservoir and DSC adjuster
- Front Crossmembers: 1/4-inch-thick laser-cut high-clearance steel
- Steering Knuckles: CNC-machined ductile iron
- Rear Springs: Progressive-rate Pro-Ride coil springs
- Vehicle Fitment: 2019–2024 Ram 1500 4WD
Installation
- Estimated Time: 12 hours
- Difficulty: Moderate
- Special Tools Required: Reciprocating Saw
Important Notes
- Fits 4WD models only.
- RAMs with factory 22" wheels require larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
- Will NOT fit models equipped with adjustable "air ride" suspension.
- Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20" wheels can be reinstalled with factory tire size.
- Will NOT work on diesel models.
- Will NOT fit 2019–2022 RAM 1500 Classic models — refer to the 2018 kit listings.
- Vehicles equipped with the Offroad or Rebel Package will not achieve the full 6" of lift; net ride height change will be approximately 5" above stock.
- Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the differential cover for cooling lines.
