Configured with FOX 2.0 Factory Race Series Hydraulic Bump Stops — engineered to provide an additional layer of shock absorption when utilizing the full range of suspension travel. Ideal for avid off-roaders who encounter large obstacles and rough terrain at speed, maintaining comfort and control under heavy impacts.
Overview

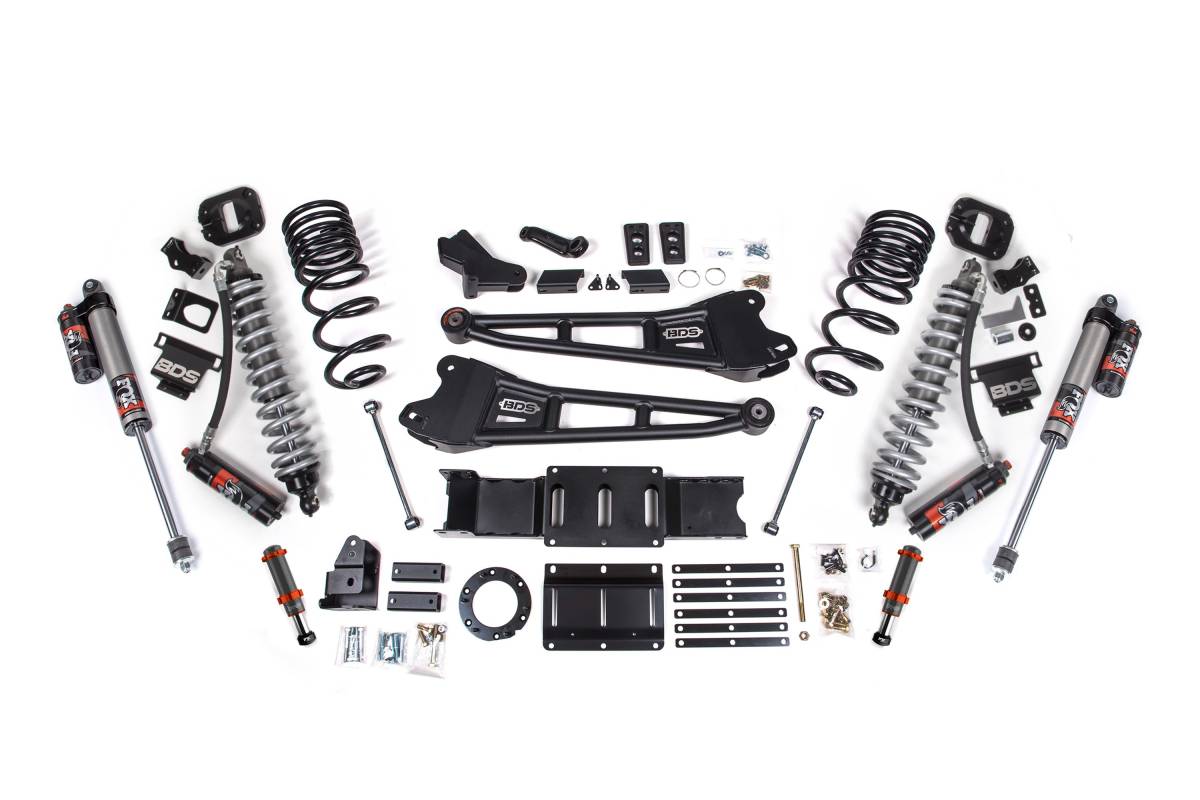

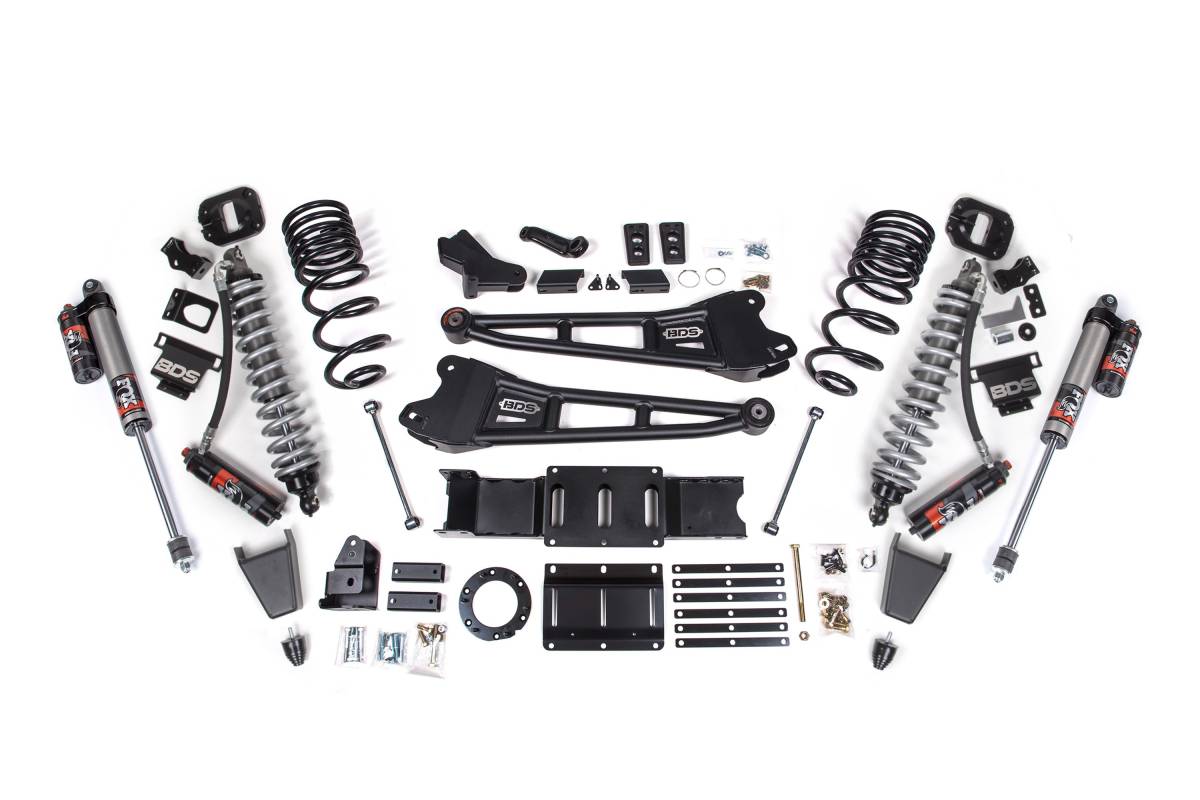

The BDS 4" Radius Arm Lift Kit for RAM 2500 trucks replaces the stock suspension setup with heavy-duty components designed for improved articulation, strength, and on- and off-road capability. The kit centers on a BDS Coilover Conversion with FOX 2.5 Performance Elite coilovers up front and FOX 2.5 Performance Elite shocks out back. Heavy-duty radius arms correct caster geometry and maximize ground clearance, while a front adjustable track bar and sway bar correction hardware maintain proper alignment and handling after the lift is installed.
Features
- FOX 2.5 Performance Elite coil-over conversion mounts in the factory coil spring bucket
- FOX 2.5 Performance Elite rear shocks
- Optional auxiliary front shock absorber (FOX 2.0 Hydraulic Bump Stop)
- Heavy-duty tubular steel radius arms — correct caster while maximizing ground clearance
- Front adjustable track bar — allows the front axle to be re-centered after lifting
- Front sway bar correction to maintain handling performance
Specifications
- Lift Height: 4 inches
- Coil-over: FOX 2.5 Performance Elite (front)
- Rear shocks: FOX 2.5 Performance Elite
- Radius arm material: Heavy-duty tubular steel
- Bump stop options: Rubber Bump Stop or FOX 2.0 Factory Race Series Hydraulic Bump Stop (see variant selection)
Installation
- Estimated Time: 7–8 hours
- Difficulty: Difficult
- Tools Required: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment
Important Notes
- Will not fit air ride equipped models
- Diesel models only
- Not designed for Power Wagon models
- Requires aftermarket driveshaft due to increased wheel travel
