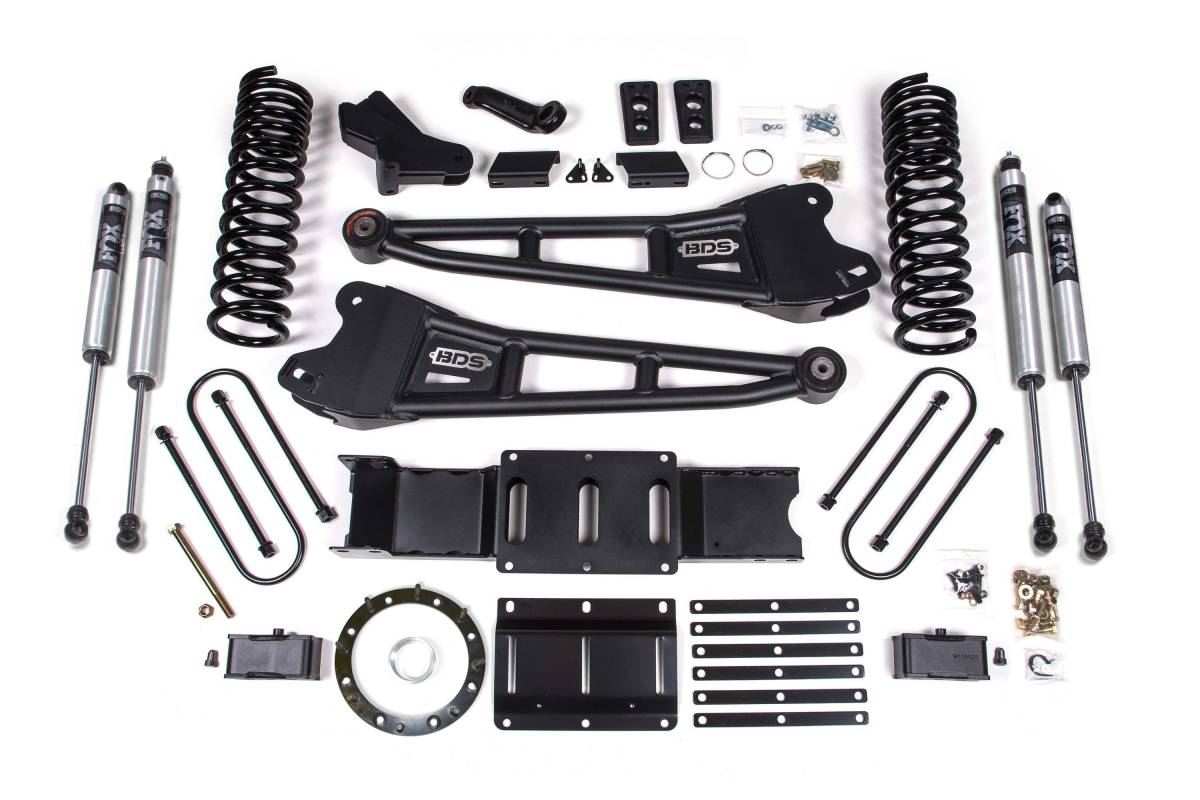

Configured for trucks without factory rear overload leaf springs, with a 6-bolt standard indexing ring, and paired with FOX 2.0 Performance Series shocks. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, and application-specific valving.
Overview

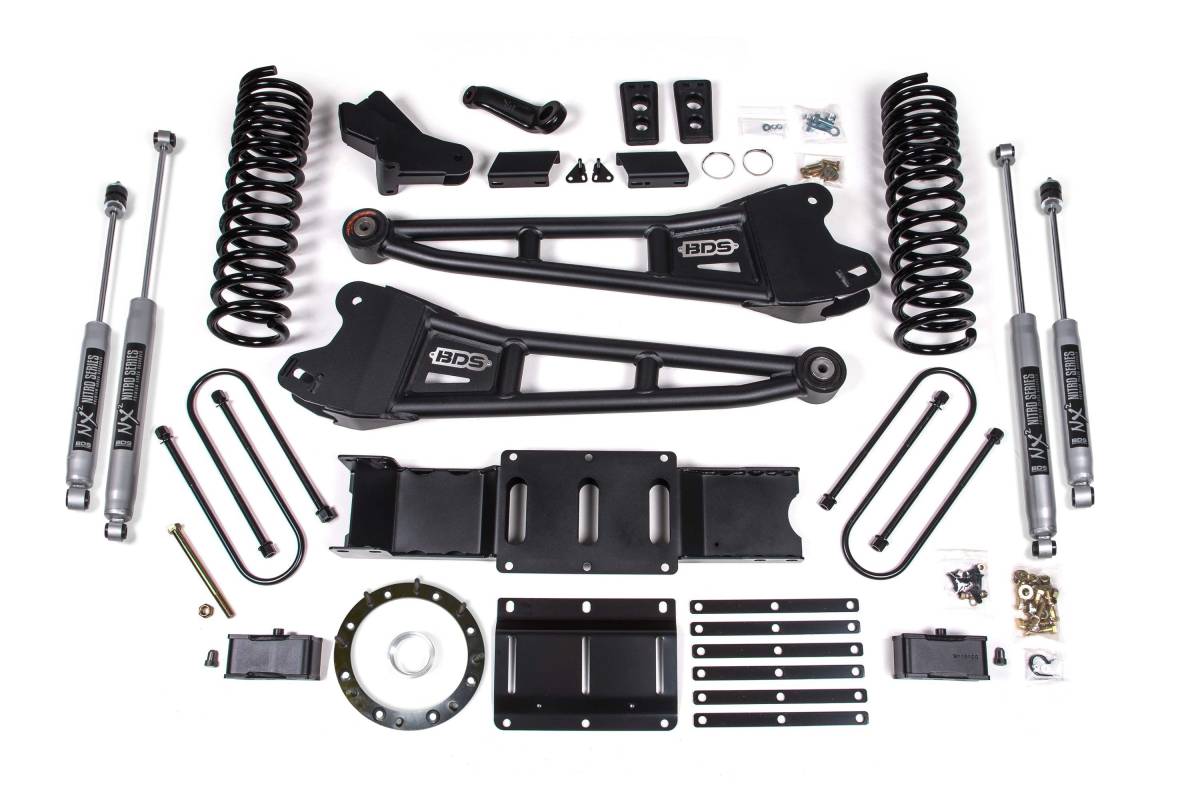

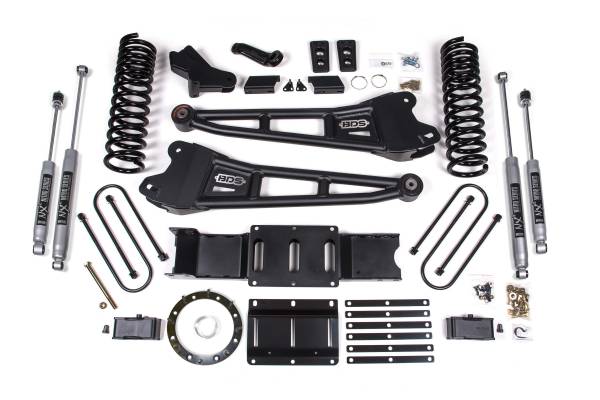

This 4-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 3500 4WD diesel-powered trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets. To maintain use of the factory front driveshaft at this lift height, a transfer case indexing ring and new transmission crossmember are supplied. The rear of the kit utilizes a high-strength fabricated lift block, longer U-bolts, and a matched set of shocks. Select the configuration that matches your truck's rear suspension (with or without factory overload leaf springs), transfer case bolt pattern (6-bolt standard or 8-bolt Aisin), and preferred shock series.
Features
- Heavy-duty tubular radius arms improve strength, handling, and caster control
- Diesel-specific progressive rate Pro-Ride coil springs for front lift and ride quality across various terrains
- Front track bar relocation bracket to re-center the front axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction hardware to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory front driveshaft
- BDS NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks for improved ride and off-road performance
- 3-inch rear lift block (without overload)
- Longer rear U-bolts included
Specifications
- Front lift: 4 inches
- Rear lift: 3 inches (via fabricated lift block)
- Tire clearance: up to 35 inches
- Radius arms: high-strength tubular steel, OE-style rubber bushing at frame mount, adjustable caster
- Coil springs: full-length, diesel-specific, progressive rate Pro-Ride
- Indexing ring: 6-bolt (standard) or 8-bolt (Aisin transmission) — 8-bolt kit includes internal shaft seal extension and new shaft seal
- Rear block: high-strength fabricated steel
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- Dually with 8-bolt Transmission (Aisin) require BDS122409 DEF Relocation Kit.
- Mega Cabs with 8-bolt Transmission (Aisin) require BDS122409 DEF Relocation Kit.
- Vehicles equipped with a Manual T-case require BDS122423 Manual transfer case shifter extension.
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier bearing drop.
