BDS 3 Inch Lift Kit w/ Radius Arms | Ram 3500 (2019-2024) 4WD Diesel | w/ Factory Rear Overload Leaf | FOX 2.0 Performance Series

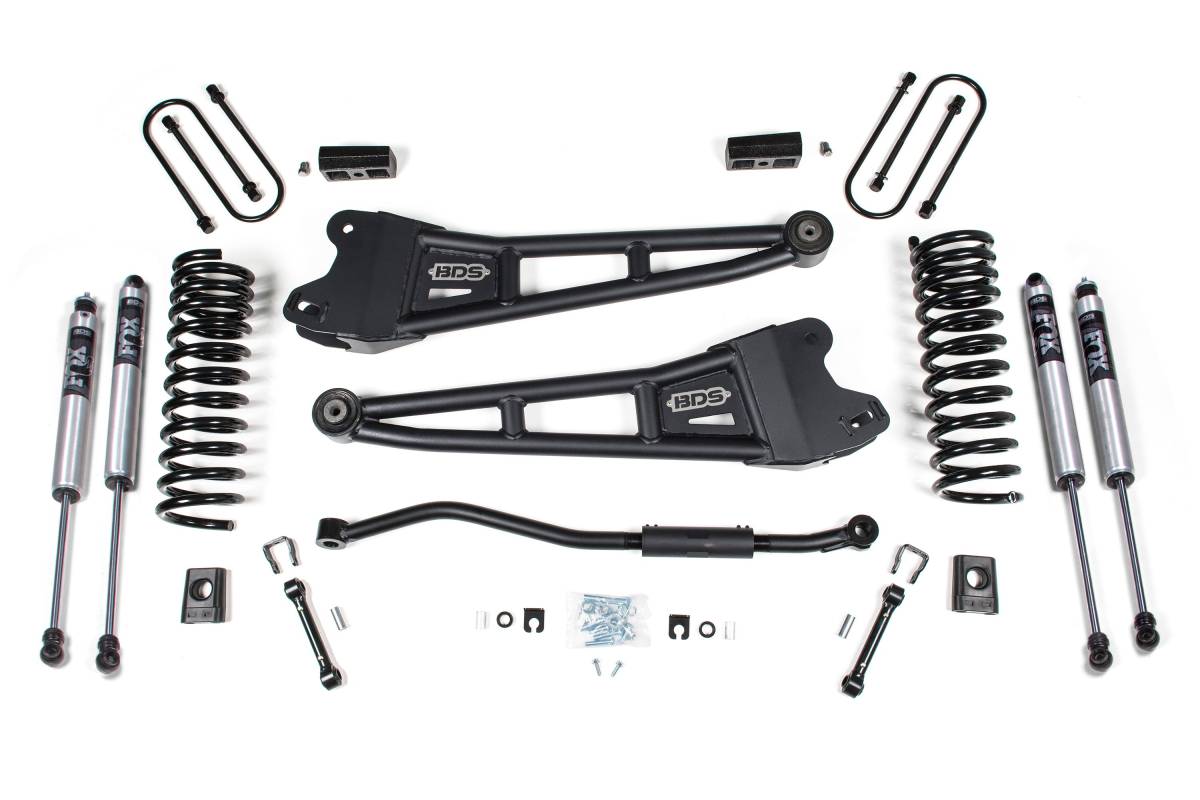

This configuration includes the rear box kit for trucks equipped with the factory rear overload leaf spring and is paired with FOX 2.0 Performance Series shocks front and rear. The FOX 2.0 Performance Series features a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving to maximize performance.

Overview

This 3-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 3500 diesel-powered 4WD trucks. The kit improves stance, performance, and capability while providing clearance for tires up to 35 inches. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, sway bar links, brake line brackets, and precision-tuned nitrogen charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block, longer u-bolts, and a matched set of rear shocks. Select the rear box kit based on whether your Ram 3500 is equipped with the factory rear overload leaf spring, and choose your preferred shock option at the time of purchase.

Features

• Heavy duty tubular radius arms improve strength, handling, and caster control — replace factory stamped steel arms and mount into factory locations with caster adjustment for a wide range of lift heights
• OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation
• Front high-strength dual rate Pro-Ride coil springs for correct lift height and predictable ride across various terrains
• Front adjustable track bar built from 1-3/8-inch solid steel stock allows you to re-center the front axle at a variety of lift heights
• Front sway bar correction links to maintain handling performance
• Brake line brackets included
• High-strength fabricated rear lift block with longer u-bolts

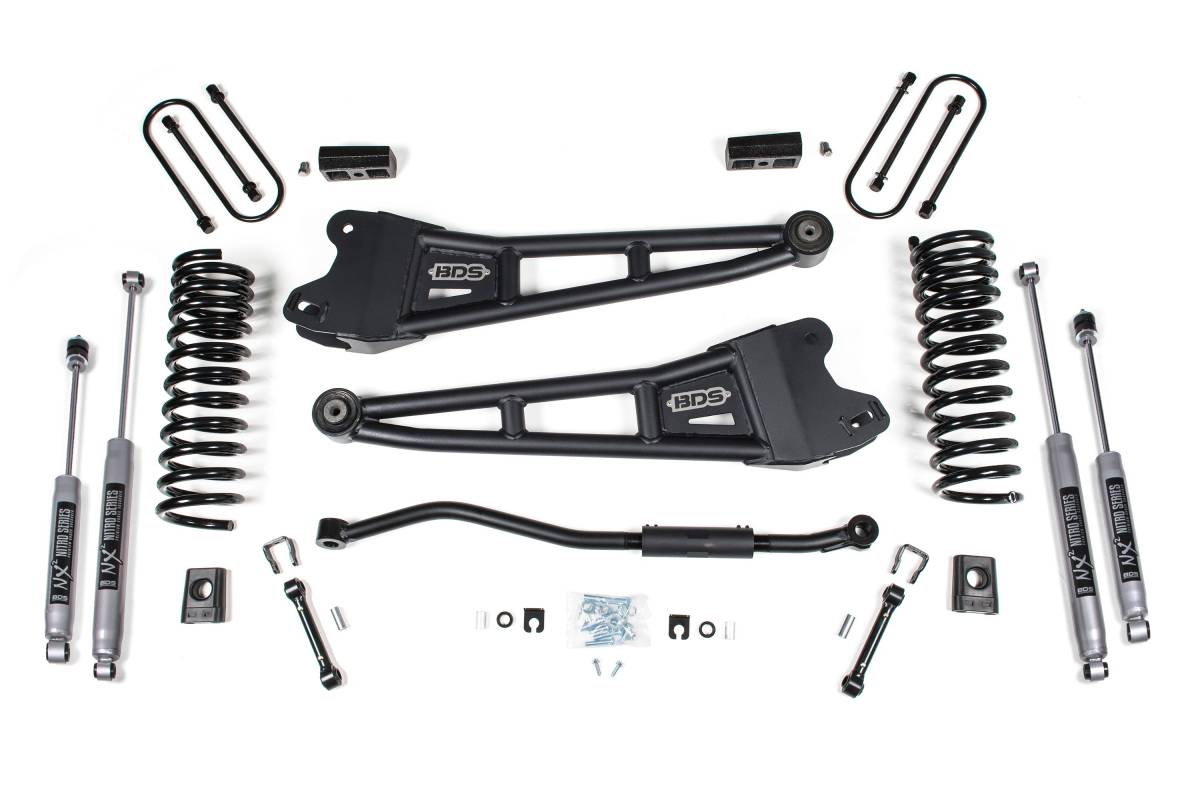

• Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks front and rear
• Provides up to 35-inch tire clearance

Installation

• Estimated Installation Time: 4–5 hours
• Installation Difficulty: Moderately Easy

Important Notes

1. Will NOT fit rear air-ride equipped models.
2. Diesel models only.
3. If you experience front driveline vibration, a T-case indexing ring is available for 6-bolt and 8-bolt equipped models. Be sure to select the correct one for your application.
