BDS 3 Inch Lift Kit w/ Radius Arm | FOX 2.5 Coil-Over Conversion Performance Elite | Ram 2500 (2019-2024) 4WD Diesel | FOX 2.0 Hydro Bump Stop

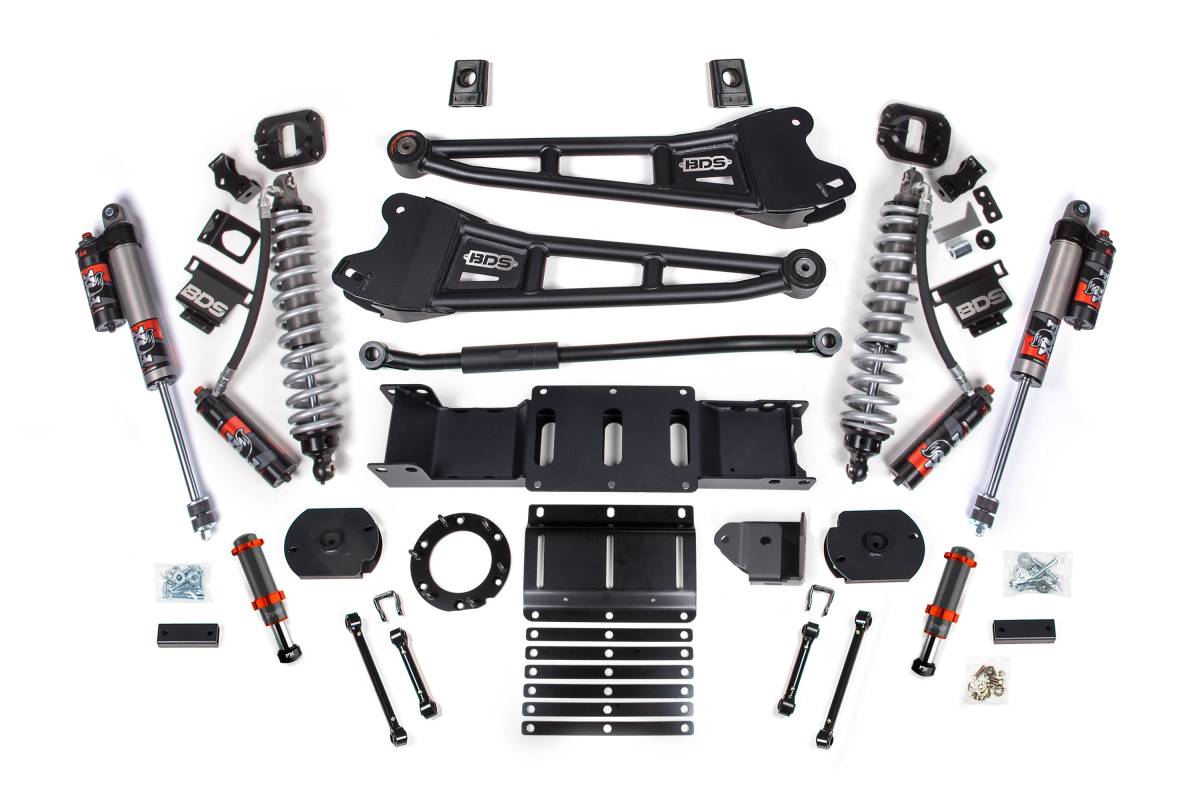

Configured with FOX 2.0 Hydraulic Bump Stops — engineered for rough terrain, these hydraulic bump stops provide an additional layer of shock absorption when utilizing the full travel of your suspension. Ideal for avid off-roaders who encounter large obstacles and rough terrain at speed, maintaining comfort and control.

Overview

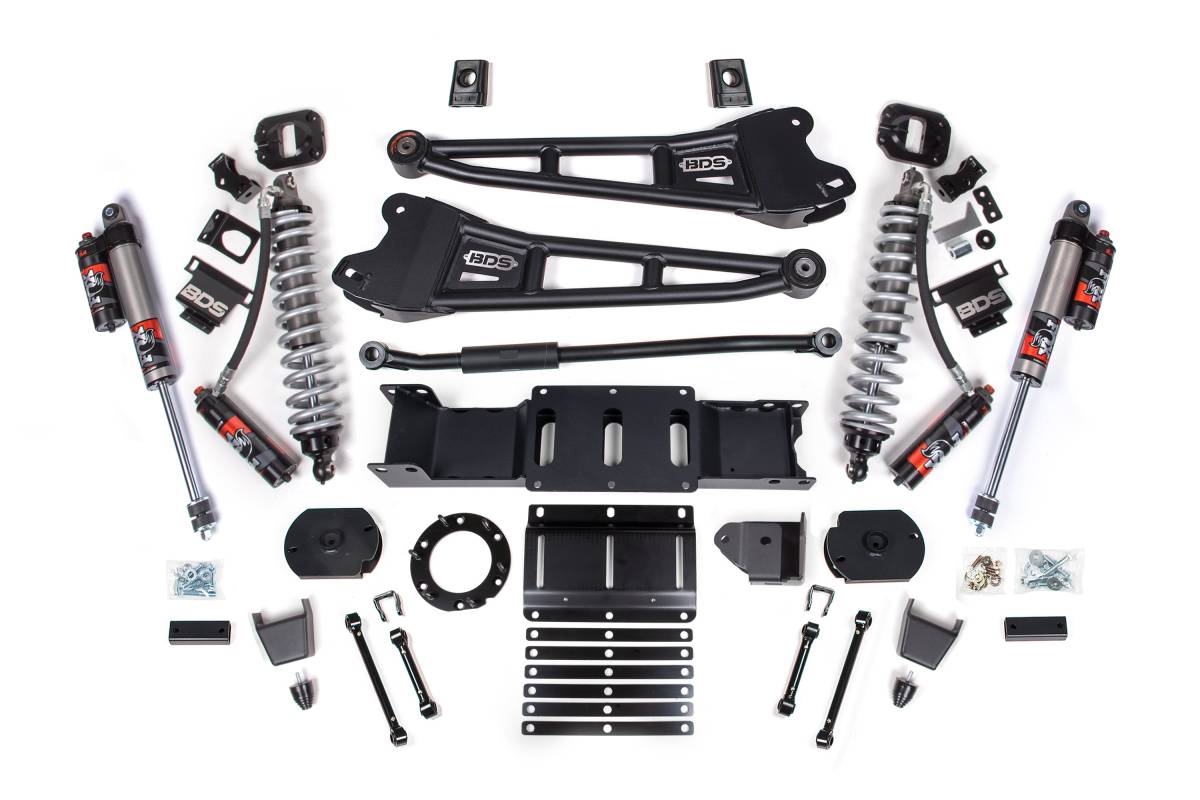

The BDS 3" Radius Arm Lift Kit for the RAM 2500 replaces the factory suspension with heavy-duty components designed for demanding trail and hauling use. Heavy-duty BDS radius arms improve articulation and strength, while the included BDS Coilover Conversion Kit mounts FOX 2.5 Performance Elite coilovers in the factory coil spring bucket for enhanced damping and ride quality on and off road. FOX 2.5 Performance Elite shocks are fitted at the rear. A front adjustable track bar allows the front axle to be re-centered after the lift, and front sway bar correction hardware maintains handling performance. An optional front auxiliary shock absorber (hydraulic bump stop) is available to manage large impacts at full suspension travel.

Features

• FOX 2.5 Performance Elite coil-overs mount in the factory coil spring bucket
• FOX 2.5 Performance Elite rear shocks
• Optional auxiliary front shock absorber (hydraulic bump stop)
• Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance
• Front adjustable track bar re-centers the front axle after lift
• Front sway bar correction maintains handling performance

Installation

• Estimated Time: 7–8 hours
• Difficulty: Difficult
• Tools Required: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment

Important Notes

• Will not fit air ride equipped models
• Diesel models only
• Not designed for Power Wagon models
• If experiencing driveline vibration, indexing rings are available for 6 and 8 bolt equipped models — available in the Customize menu
