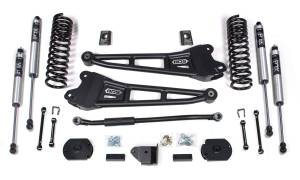

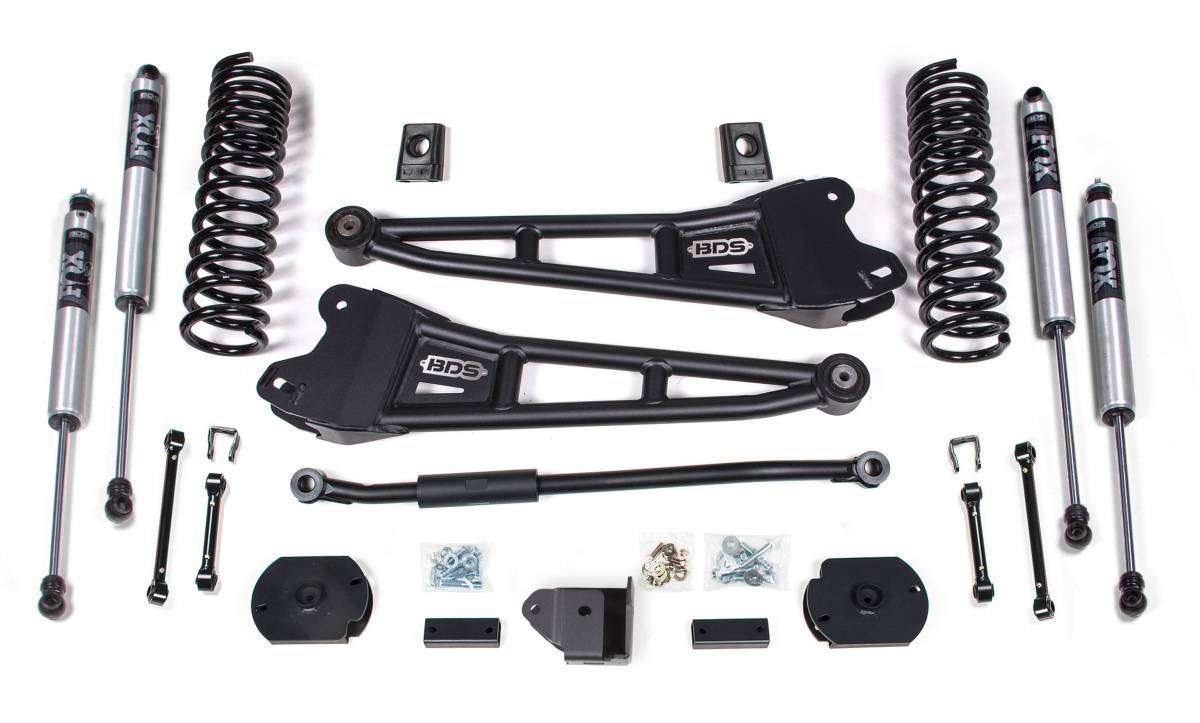

BDS 3 Inch Lift Kit w/ Radius Arms | Ram 2500 (2019-2024) 4WD Diesel | FOX 2.0 Performance Series Shocks

Configured with FOX 2.0 Performance Series shocks front and rear. Features a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving. Clear anodized finish.

Overview

This 3-inch radius arm lift kit from BDS Suspension is designed for diesel-powered Ram 2500 4WD trucks (2019–2024), improving stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, sway bar links, brake line brackets, and precision-tuned shocks. In the rear, the kit utilizes a high-strength fabricated coil spacer, track bar relocation bracket, bump stops, and a matching set of shocks.

Features

• Heavy duty tubular radius arms improve strength, handling, and caster control over factory stamped steel arms
• Diesel-specific progressive rate Pro-Ride coil springs provide correct lift height and smooth, predictable ride across various terrains
• High-strength 1-3/8-inch solid steel adjustable front track bar re-centers the front axle at a variety of lift heights
• Front sway bar correction links maintain handling performance
• Rear high-strength fabricated coil spacer, track bar relocation bracket, and bump stops included
• Brake line brackets included

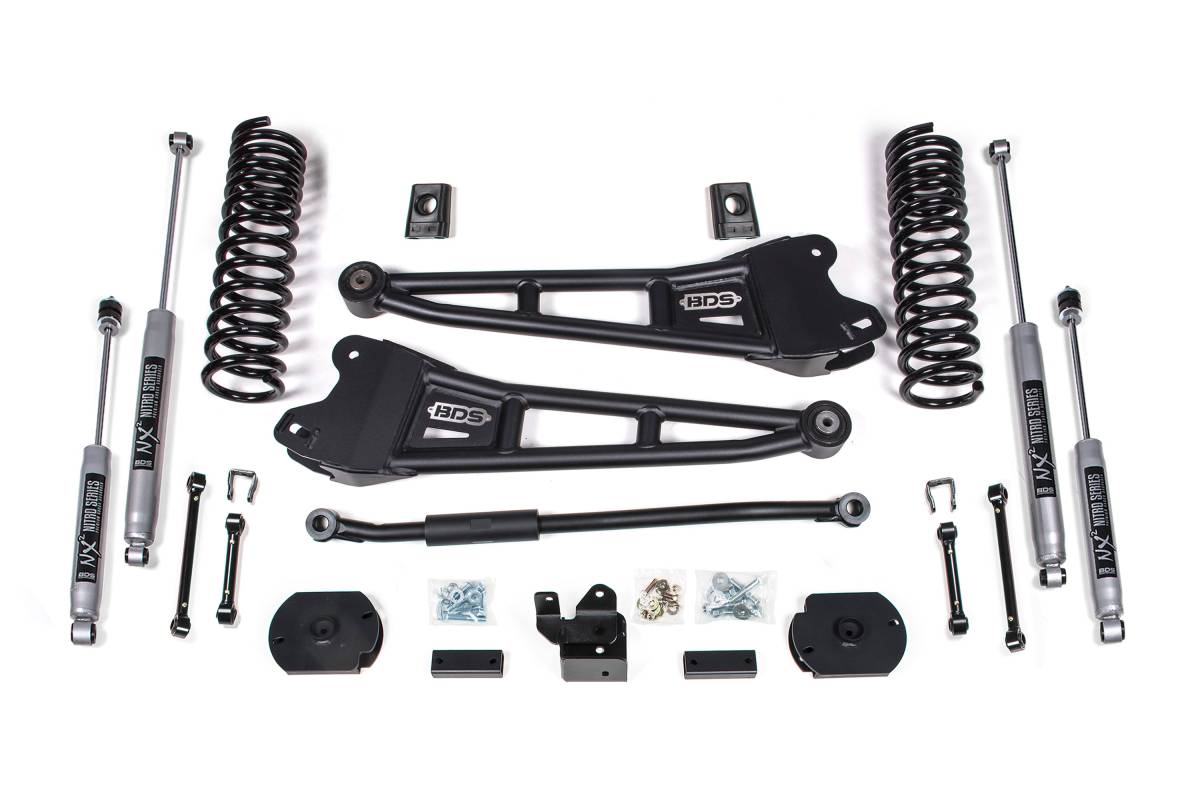

• Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks

Specifications

• Lift Height: 3 inches
• Tire Clearance: Up to 35 inches
• Radius Arms: High-strength tubular construction, factory mounting locations, caster adjustable, OE-style rubber bushing at frame mount
• Pro-Ride Coil Springs: Full-length, diesel-specific, progressive rate, high tensile steel, properly sized wire diameter for maximum reliability without premature coil bind
• Track Bar: 1-3/8-inch solid steel stock, pre-assembled with bushings, bolts into factory mounting points
• Application: 2019–2024 Ram 2500 4WD Diesel

Installation

• Estimated Time: 4–5 hours
• Difficulty: Moderately Easy

Important Notes

1. For use on diesel models only.
2. Not for use on Power Wagon models.
3. If you experience front driveline vibration, a T-case indexing ring is available for 6-bolt and 8-bolt equipped models. Be sure to select the correct one for your application.
