BDS 6 Inch Lift Kit | Ram 3500 w/ Rear Air Ride (2013-2018) 4WD Diesel | 6-Bolt Indexing Ring | NX2 Nitro Series

Includes the 6-Bolt T-case indexing ring kit, compatible with the standard Ram 3500 transfer case bolt pattern. Paired with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

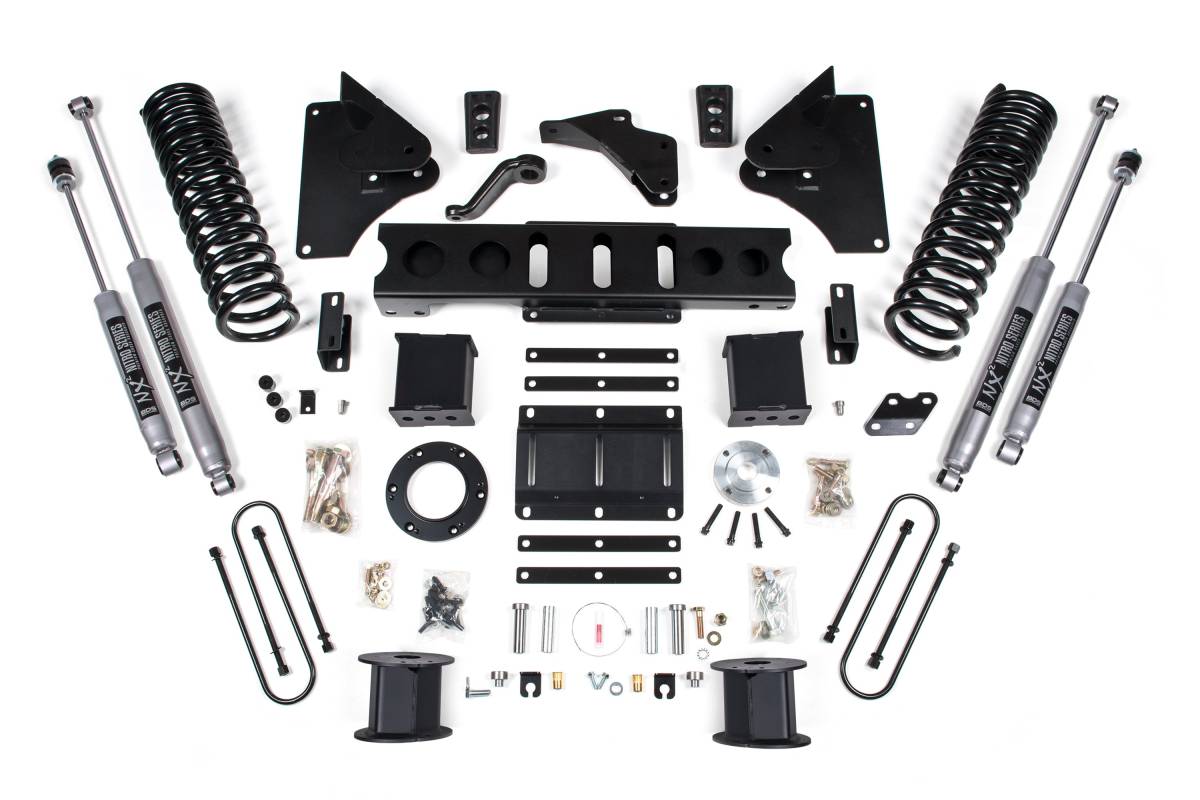

This 6-inch lift kit from BDS Suspension is designed for 2013–2018 RAM 3500 diesel-powered trucks equipped with factory rear air ride. The kit improves stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned shocks. In the rear, the kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer U-bolts, and a matched set of shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs provide the correct lift height and a smooth, predictable ride across various terrains.

Steering Correction

A forged drop pitman arm minimizes steering angle once the vehicle is lifted. Combined with a heavy duty track bar drop bracket, steering geometry is kept in phase through suspension travel while recentering the front axle.

Features

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Front track bar relocation bracket to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and T-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Choice of BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks for improved ride and off-road performance
• High-strength fabricated rear lift block with heavy duty air bag spacers and longer U-bolts
• Clearance for up to 37-inch tires

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

• The carrier bearing drop is necessary for models equipped with a two-piece rear drive shaft.
• Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
• DRW models: fit inner wheel clearance to the upper U-bolt plate on 6-inch kits.
• Fits OE equipped air ride systems only.
