BDS 3 Inch Lift Kit w/ Radius Arm | 2013-2018 Ram 3500 4WD Diesel | FOX 2.5 Performance Elite Shocks

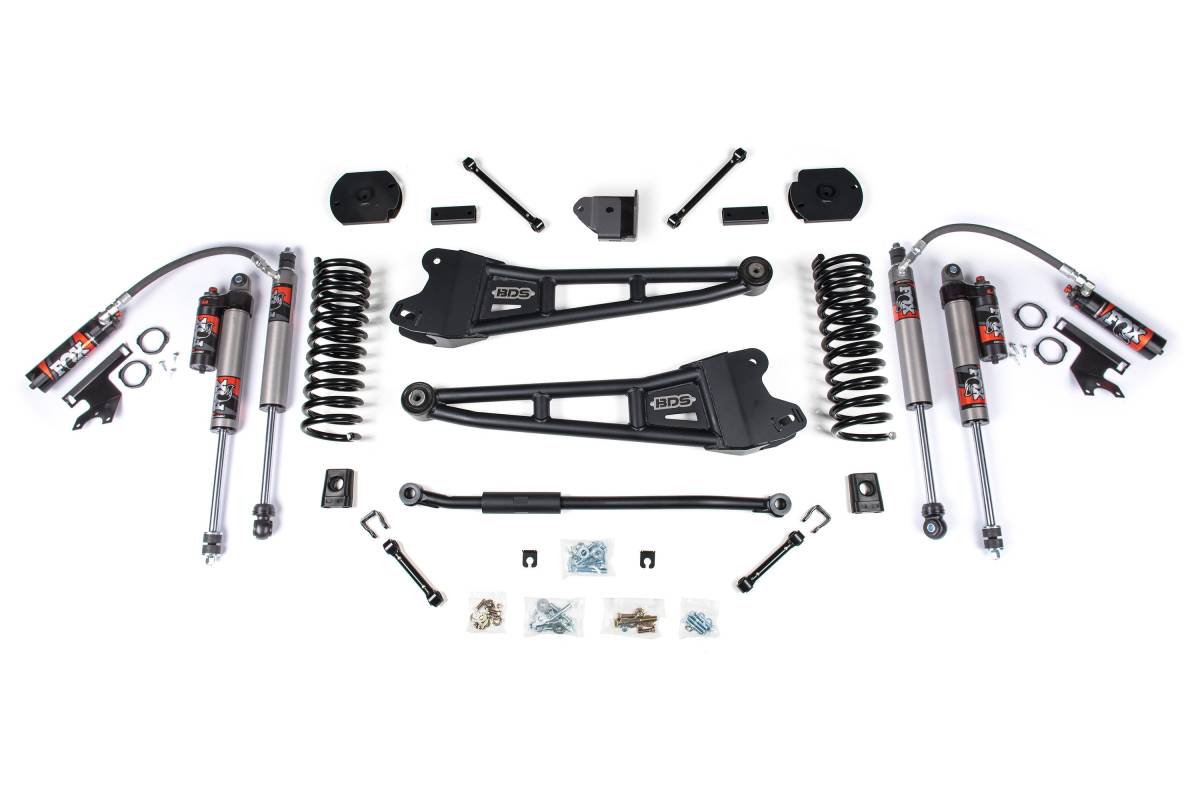

Configured with FOX 2.5 Performance Elite shocks front and rear. Features a 2.5-inch impact extruded aluminum body, massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design that separates shock oil from high-pressure nitrogen, and a DSC (Dual Speed Compression Adjuster) as standard. CNC machined 6061-T6 aluminum mounting ends and fully serviceable for a lifetime of use.

Overview

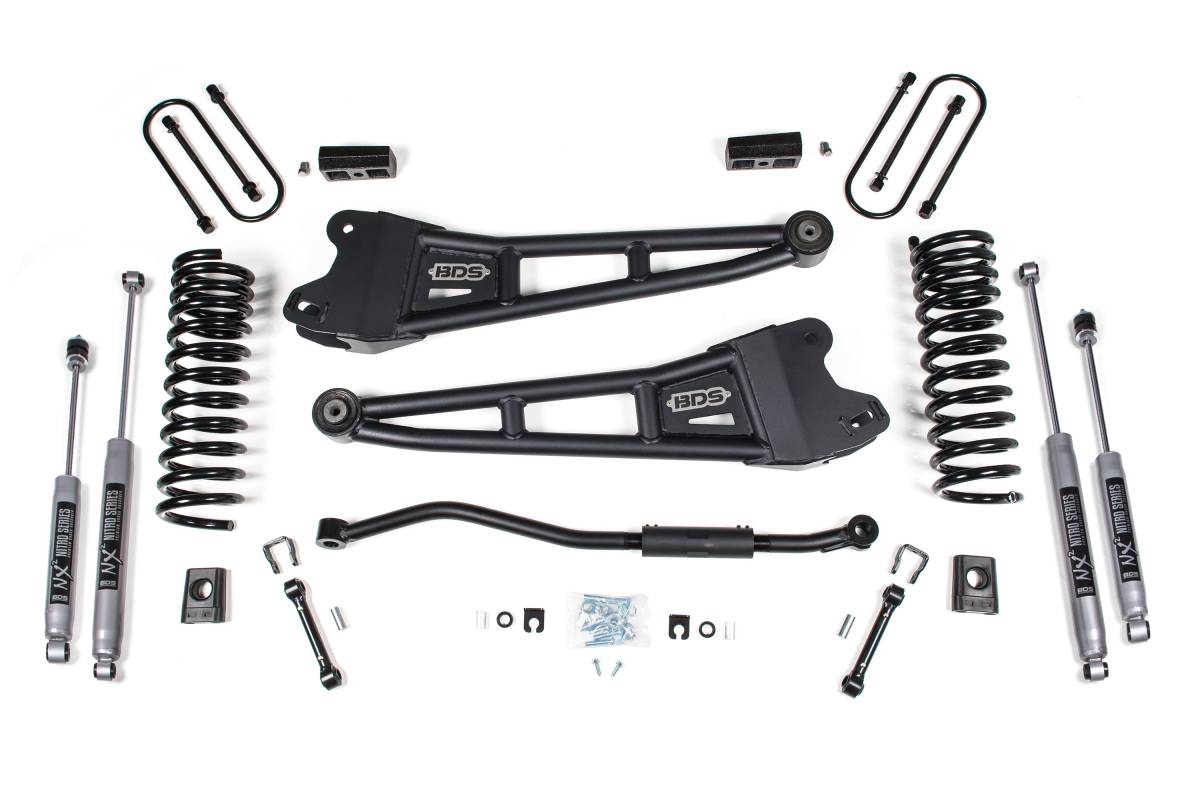

This 3-inch radius arm lift kit from BDS Suspension is designed for 2013–2018 RAM 3500 diesel-powered 4WD trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, sway bar links, and brake line brackets. In the rear, the kit utilizes a high-strength fabricated lift block and longer U-bolts. Shocks are included front and rear and are available in multiple configurations.

Features

• Heavy duty tubular radius arms improve strength, handling, and caster control
• Diesel-specific progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Front adjustable track bar allows re-centering of the front axle at lift height
• Front sway bar correction links to maintain handling performance
• Brake line brackets included
• High-strength fabricated rear lift block with longer U-bolts
• Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks

Specifications

• Lift Height: 3 inches
• Tire Clearance: Up to 35 inches
• Radius Arms: High-strength tubular steel, factory mounting locations, OE-style rubber bushing at frame mount, caster adjustable
• Coil Springs: Full-length, diesel-specific, progressive rate Pro-Ride design
• Track Bar: 1-3/8-inch solid steel, pre-assembled with bushings, adjustable
• Rear: Fabricated lift block with longer U-bolts
• Vehicle Fitment: 2013–2018 RAM 3500 4WD Diesel

Installation

• Estimated Time: 10 hours
• Difficulty: Difficult
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

Some trucks are equipped with rear dual overload springs. Order 4068 to retain top overload leafs. Not for use with factory rear airbag suspensions.
