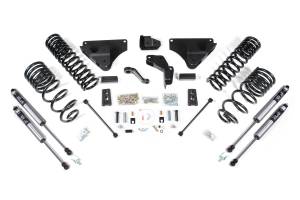

BDS 4 Inch Lift Kit | Ram 2500 (2014-2018) 4WD Gas | Rear Coil Springs | FOX 2.0 Performance Series Shocks

This configuration includes full replacement rear Pro-Ride coil springs and FOX 2.0 Performance Series shocks. The rear coil springs are progressive rate, built to handle heavy loads without sagging, shot peened to increase tensile strength, and finished with a polyester-based powder coat for flexibility and durability. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

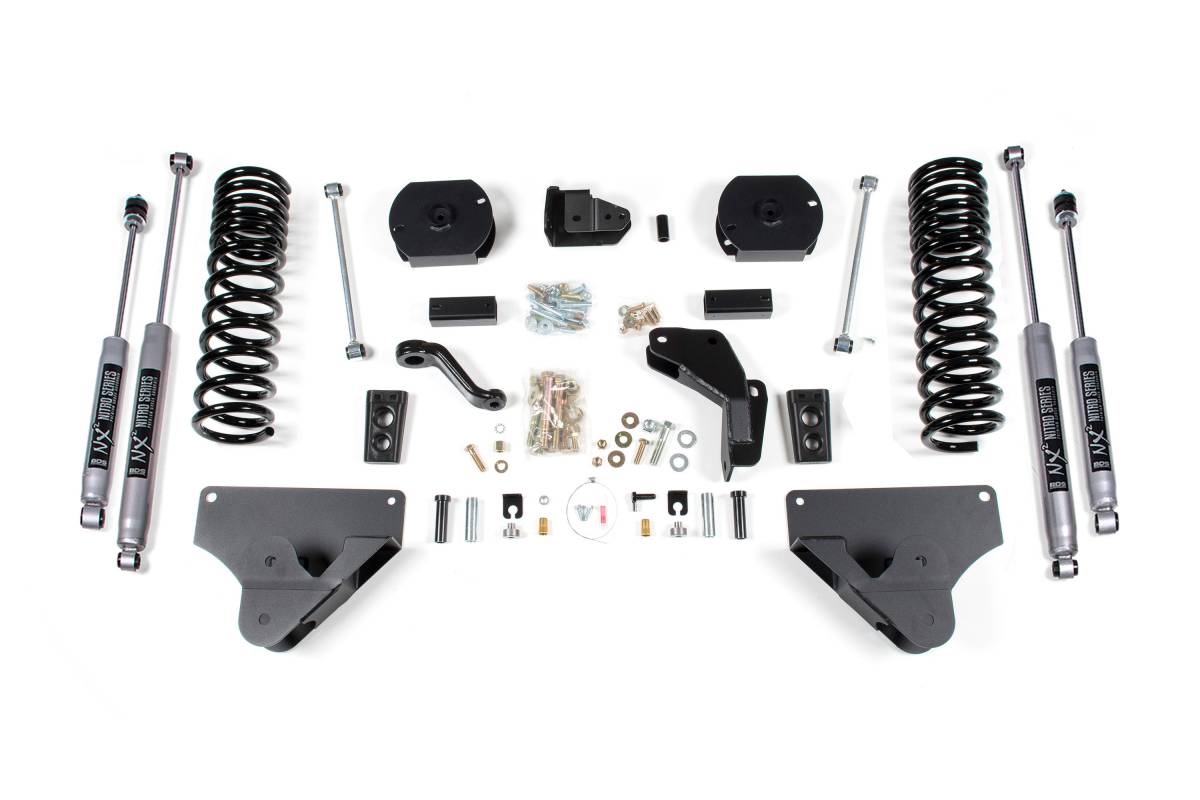

This 4-inch lift kit from BDS Suspension is designed for 2014–2018 RAM 2500 gas-powered 4WD trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, it includes gas-specific Pro-Ride coil springs, radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned shocks. In the rear, the kit utilizes progressive rate Pro-Ride coil springs or coil spacers (depending on configuration), a track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links, and a matching set of shocks.

Features

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Gas-specific front coil springs manufactured from high tensile steel with properly sized wire diameter for maximum reliability without premature coil bind
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Heavy duty track bar drop bracket keeps steering components in phase through suspension travel
• Front sway bar correction to maintain handling performance
• Progressive rate rear coil springs handle heavy loads without sagging
• Rear track bar relocation bracket to correct axle positioning
• Bump stop extensions and brake line brackets included
• Choice of BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks

Specifications

• Lift height: 4 inches
• Tire clearance: up to 35 inches
• Coil springs: full-length, gas-specific, progressive rate Pro-Ride construction
• Coil spring material: high tensile steel
• Coil spring finish: polyester-based powder coat for flexibility and durability; shot peened to increase tensile strength
• Structural finish: powder coat for long-lasting durability
• Fitment: 2014–2018 RAM 2500 4WD Gas

Installation

• Estimated Time: 6–8 hours
• Difficulty: Difficult
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
