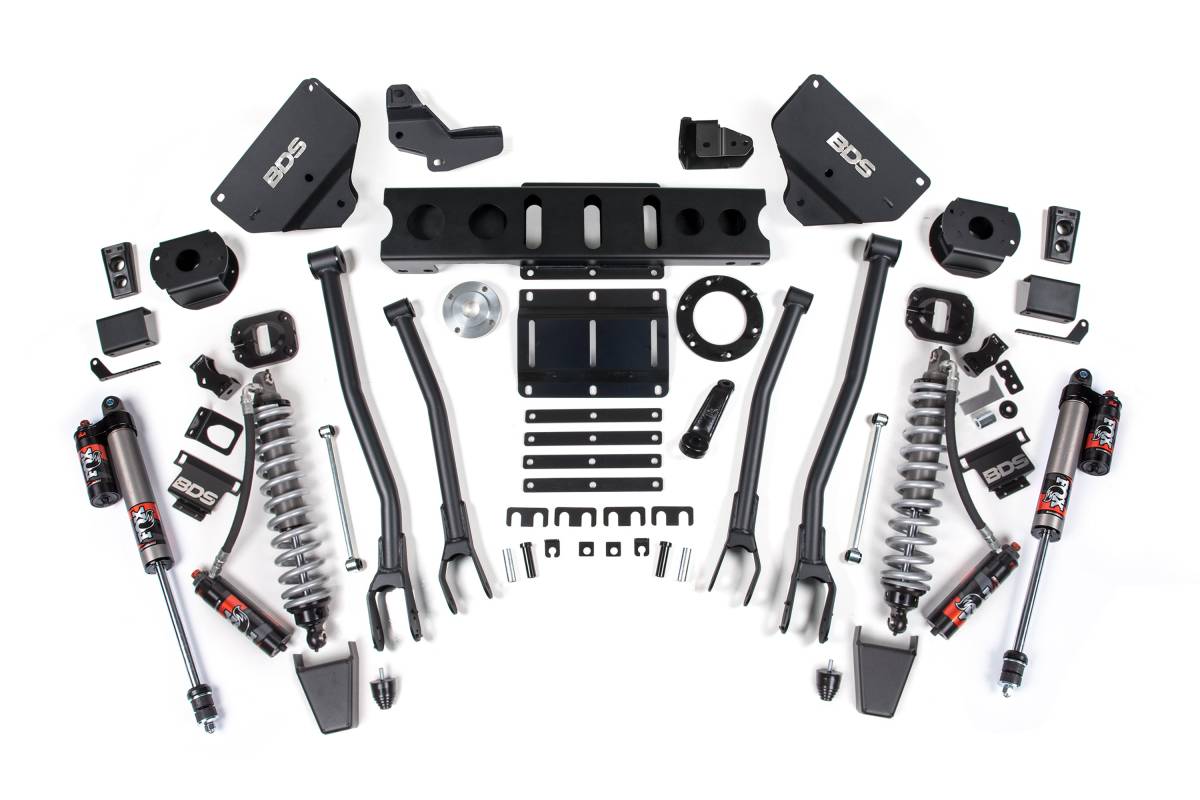

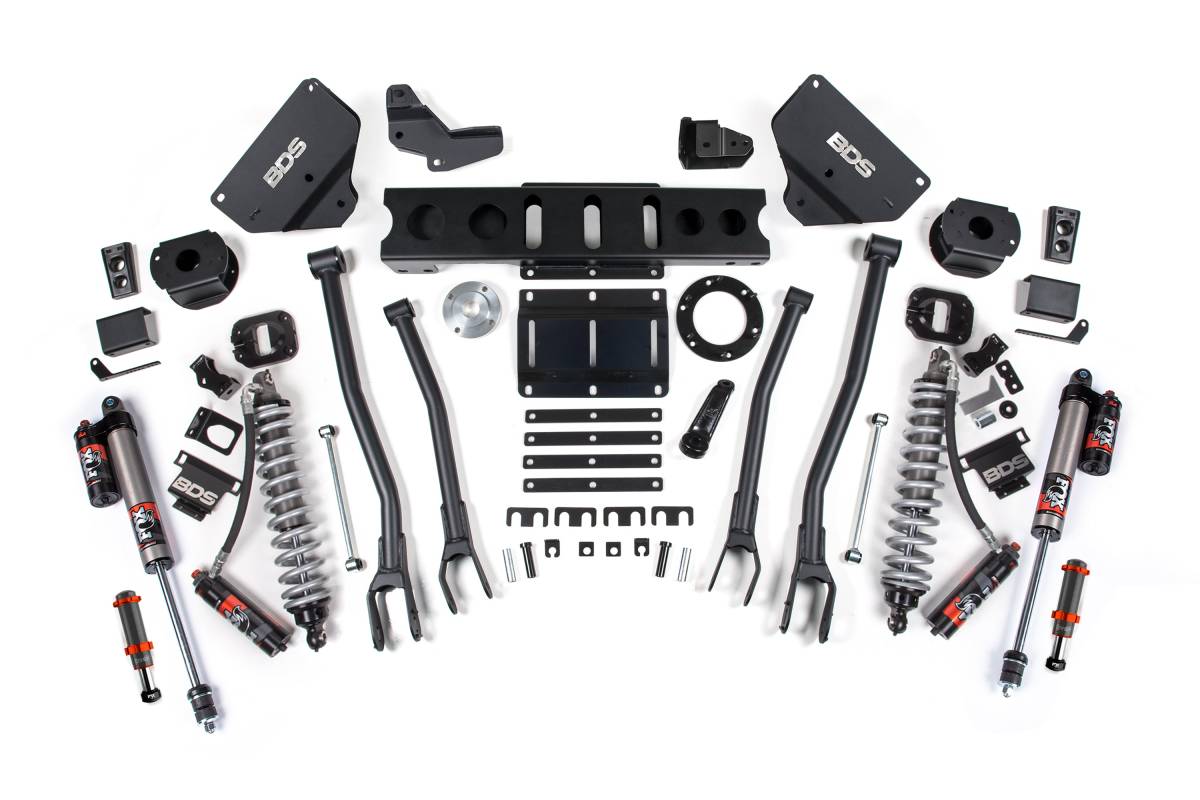

BDS 6 Inch 4-Link Lift Kit w/ FOX 2.5 Coil-Over Conversion Performance Elite | Ram 2500 2014-2018 4WD Diesel | FOX 2.0 Hydro Bump Stop

Configured with FOX 2.0 Hydraulic Bump Stops — engineered for the roughest terrain, these provide an additional layer of shock absorption when utilizing the full travel of your suspension. Ideal for avid off-roaders who hit large obstacles and traverse rough terrain at speed, maintaining comfort and control.

Overview

The BDS 6 Inch 4-Link Lift Kit for RAM 2500 trucks replaces the stock suspension setup with heavy-duty hardware designed for demanding off-road use. At the core of the kit are BDS 4-Link arms, engineered for improved articulation and rugged strength. Up front, the BDS Coilover Conversion Kit pairs with FOX Performance Elite coilovers for enhanced damping control and ride quality on and off the road. Out back, FOX Performance Elite shocks maintain control over varied terrain. An optional FOX 2.0 Hydraulic Bump Stop upgrade is available for the front to provide additional impact absorption under hard use.

Features

• Heavy-duty BDS 4-Link arms for improved articulation and strength
• BDS Coilover Conversion Kit with FOX Performance Elite coilovers up front
• FOX Performance Elite shocks in the rear
• Optional FOX 2.0 Hydraulic Bump Stops available for the front
• Diesel models only
• Will not fit air ride equipped models
• Not designed for PowerWagon models
• Must be used with an aftermarket drive shaft due to increased wheel travel

Installation

• Estimated Time: 7–8 hours
• Difficulty: Difficult
• Required Tools: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment

Important Notes

• Will not fit air ride equipped models.
• Diesel models only.
• Not designed for PowerWagon models.
• Must be used with an aftermarket drive shaft due to increased wheel travel.
• Indexing ring only fits 6-bolt transfer cases (most common).
• Some heavy-duty tow package vehicles may have 8-bolt transfer cases (with heavy-duty Aisin 6-speed transmissions) — order part #122813.
