BDS 6 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ford F150 (2015-2020) 4WD | w/ FOX 2.5 Performance Elite Rear Shocks

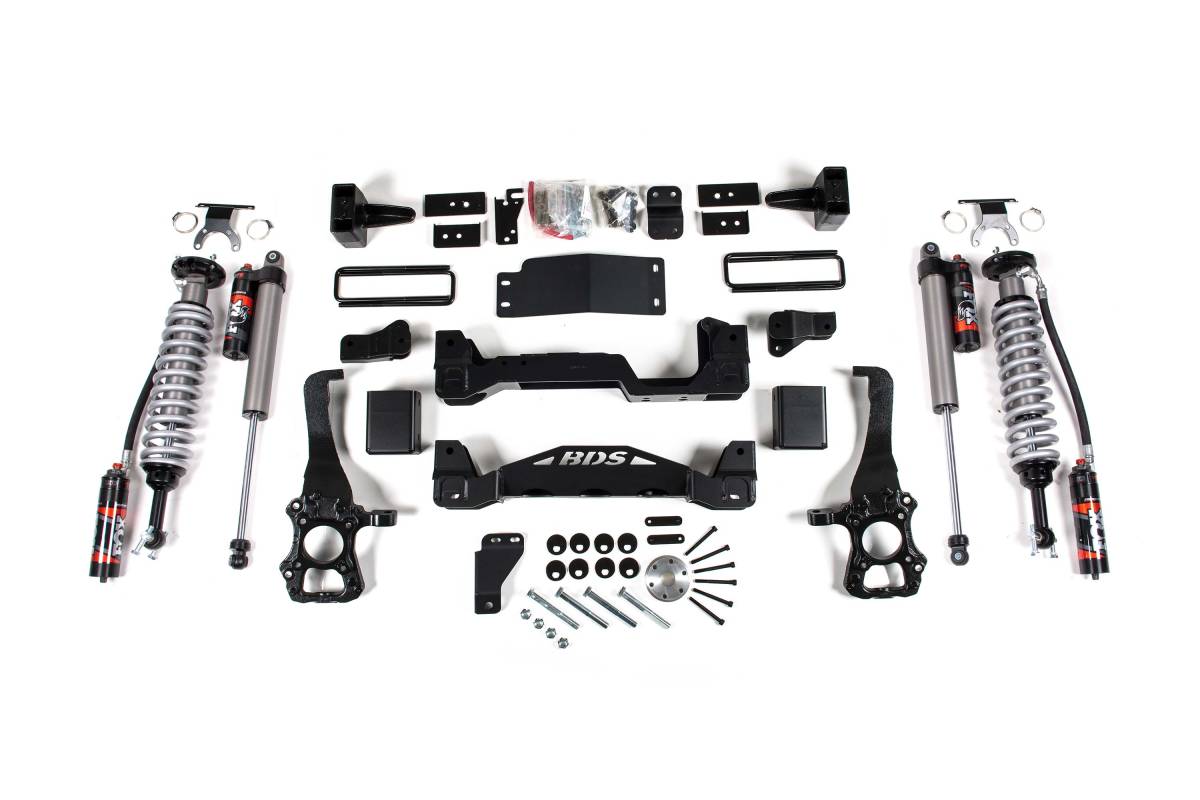

Rear shocks: FOX 2.5 Performance Elite — 2.5-inch impact extruded aluminum body, massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design separating shock oil from high-pressure nitrogen, Dual Speed Compression (DSC) adjuster standard, and fully serviceable for a lifetime of use.

Overview

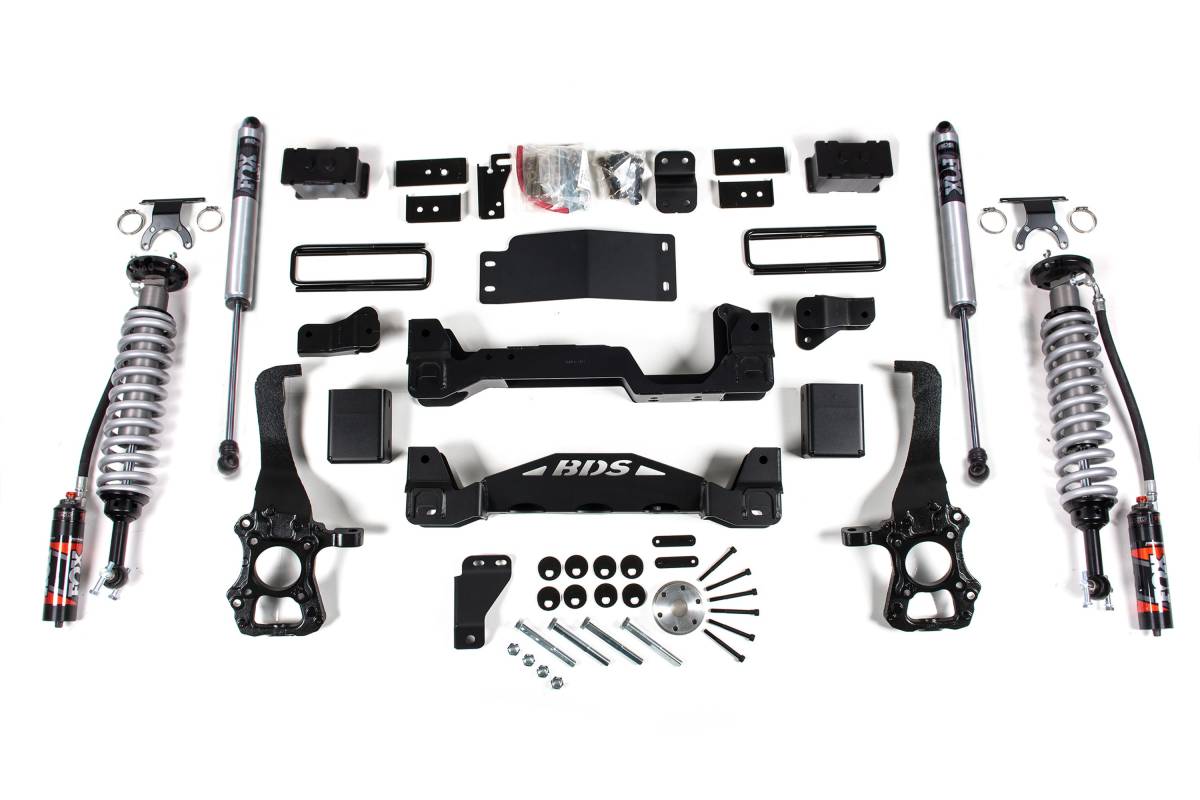

These 6-inch coil-over suspension lift kits are engineered for the 2015–2020 Ford F150 4WD. They feature proprietary FOX Performance Elite 2.5 coil-over shocks designed specifically to bolt on to the F150, providing increased travel and the ability to absorb rough terrain while maintaining smooth on-road comfort. The kit includes all components necessary to achieve clearance for up to 37-inch tires. BDS's high-clearance design improves ground clearance, strength, and off-road protection while correcting suspension and steering geometry for proper on-road handling.

Up front, the kit utilizes FOX 2.5 remote reservoir coil-over shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and a skidplate for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of CNC-machined ductile iron steering knuckles. Sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware are included. In the rear, high-strength fabricated lift blocks and longer U-bolts lift and level the stance.

Features

• FOX 2.5 coil-over shocks designed specifically for increased travel and the ability to absorb rough terrain
• DSC (Dual Speed Compression) adjuster provides precise tuning with 10 separate low-speed and 12 high-speed compression levels via two adjuster knobs
• Remote reservoir on front coil-overs provides additional fluid capacity to keep shocks running cool
• High-clearance 1/4-inch thick laser-cut steel crossmembers improve strength and off-road capability
• Front skid plate system bolts together to create a rigid subframe with added protection
• Heavy-duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and U-bolts lift and level the stance

Specifications

• Lift height: 6 inches
• Front shocks: FOX 2.5 Performance Elite coil-over with remote reservoir — 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, DSC adjuster, black anodized aluminum reservoir, fully serviceable
• Crossmember thickness: 1/4-inch laser-cut steel
• Steering knuckles: CNC-machined ductile cast iron
• Tire clearance: up to 37 inches
• FOX shocks: 1-year Manufacturer's Warranty

Installation

• Estimated Time: 10 hours
• Difficulty: Difficult
• Special Tools Required: Cut-off Tool, Reciprocating Saw

Important Notes

• Requires frame bracket modification.
• 18-inch wheels with 5–5.5 inches of total backspacing should be test-fitted before mounting to ensure proper clearance to BDS steering knuckle.
• 18-inch or larger diameter wheels are required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels can be used with up to 305/60-20 tires.
• The 4-inch blocks will net a level/tail LOW stance. The 5-inch blocks will net a level/tail HIGH stance.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
• This system WILL WORK on Diesel Models.
• Will not fit HD models (7 lug).
• This kit is FMVSS No. 126 Compliant.
