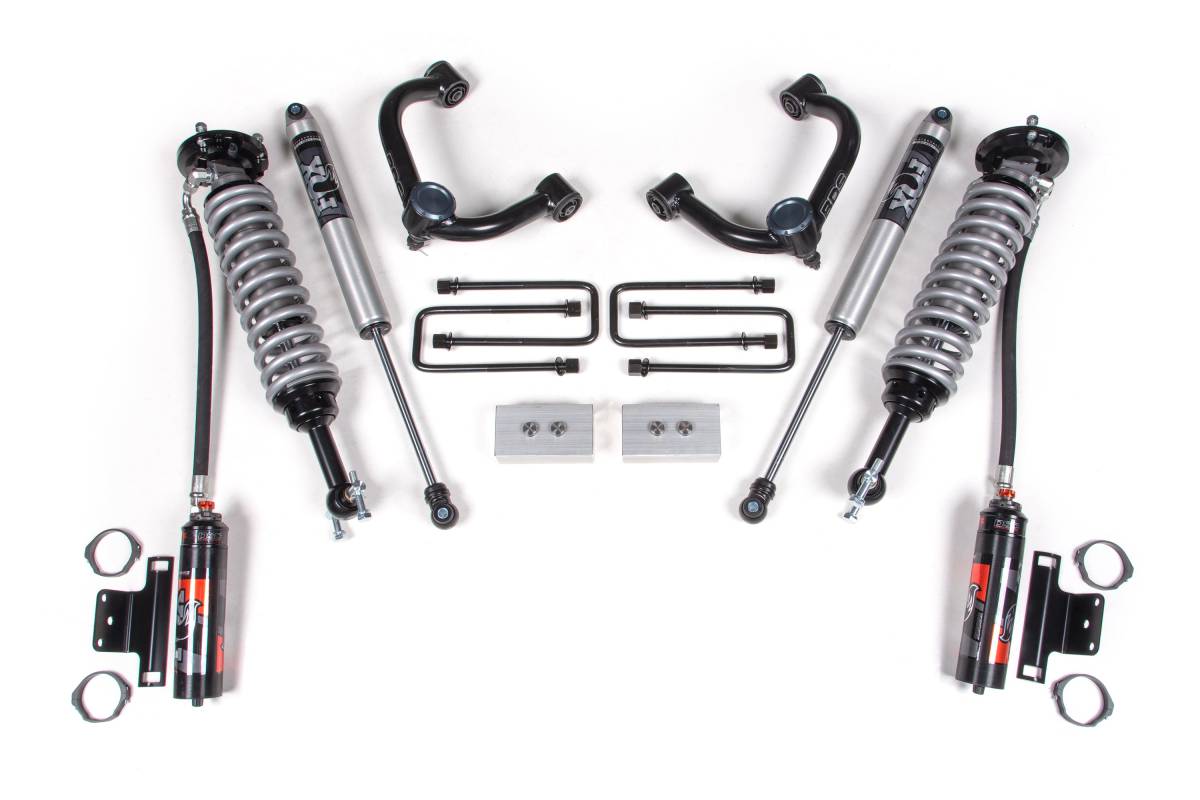

This configuration pairs the front FOX 2.5 Performance Elite coil-over shocks with FOX 2.5 Performance Elite rear shocks, featuring a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir design that separates shock oil from high-pressure nitrogen, a standard DSC Dual Speed Compression Adjuster, and full serviceability for a lifetime of use.
Overview

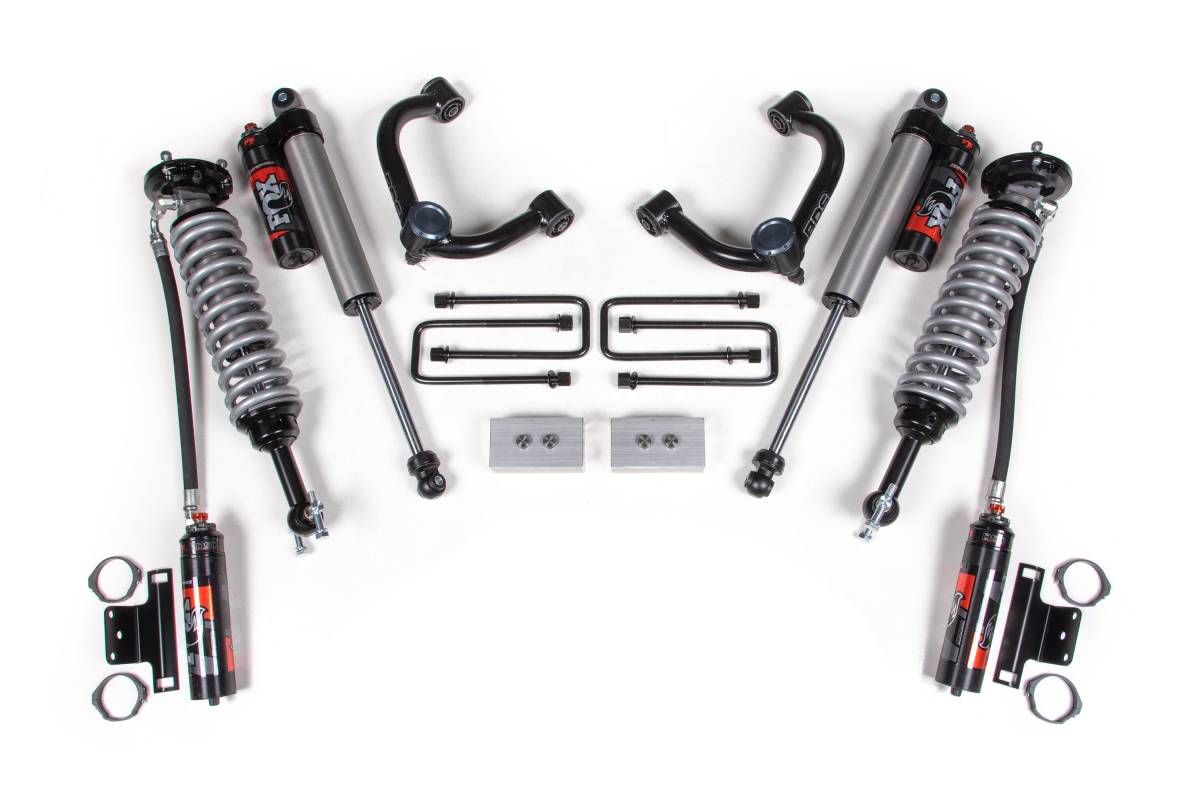

This 3-inch lift kit from BDS Suspension is designed for 2014–2020 Ford F150 4WD trucks, improving stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. The rear of the kit uses a complementary set of FOX shocks (see variant options) for a smooth ride.
Features
- FOX 2.5 Performance Elite coil-over shocks designed specifically for increased travel and the ability to soak up rough terrain
- DSC (Dual Speed Compression) adjuster provides 10 separate low-speed and 12 high-speed compression levels with a simple twist of either two adjuster knobs
- Black anodized aluminum reservoir increases cooling efficiency and provides additional fluid capacity
- Heavy duty upper control arms (UCAs) increase strength and allow for more suspension travel
- UCAs use 1.5-inch OD x .120-wall tubular construction with an indexed ball joint cup to correct ball joint positioning for additional down travel and camber adjustment
- Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
- Greaseable ball joints at the outer end for smooth, quiet operation and superior durability
- UCAs finished in durable black powder coat with a billet aluminum dust cap
- Rear lift blocks and U-bolts to lift and level the stance
- Provides clearance for up to 35-inch tires
Specifications
- Lift Height: 3 inches
- Front shocks: FOX 2.5 Performance Elite Series remote reservoir coil-over, 2.5-inch impact extruded aluminum body
- Front shock shaft: 7/8-inch hard chrome plated heat-treated alloy steel
- UCA construction: 1.5-inch OD x .120-wall tubular steel
- UCA finish: Black powder coat with billet aluminum dust cap
- FOX 2.5 shocks are fully serviceable
- FOX shocks include a 1-year Manufacturer's Warranty
Installation
- Estimated Installation Time: 3 hours
- Difficulty: Moderate
- Tools Required: Cut-off Tool, Reciprocating Saw
Important Notes
Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009–13 model kits. Will not fit HD models (7 lug).
