BDS 6 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (2017-2019) 4WD Diesel | 5" Block 3-Leaf Main | FOX 2.0 Performance Series

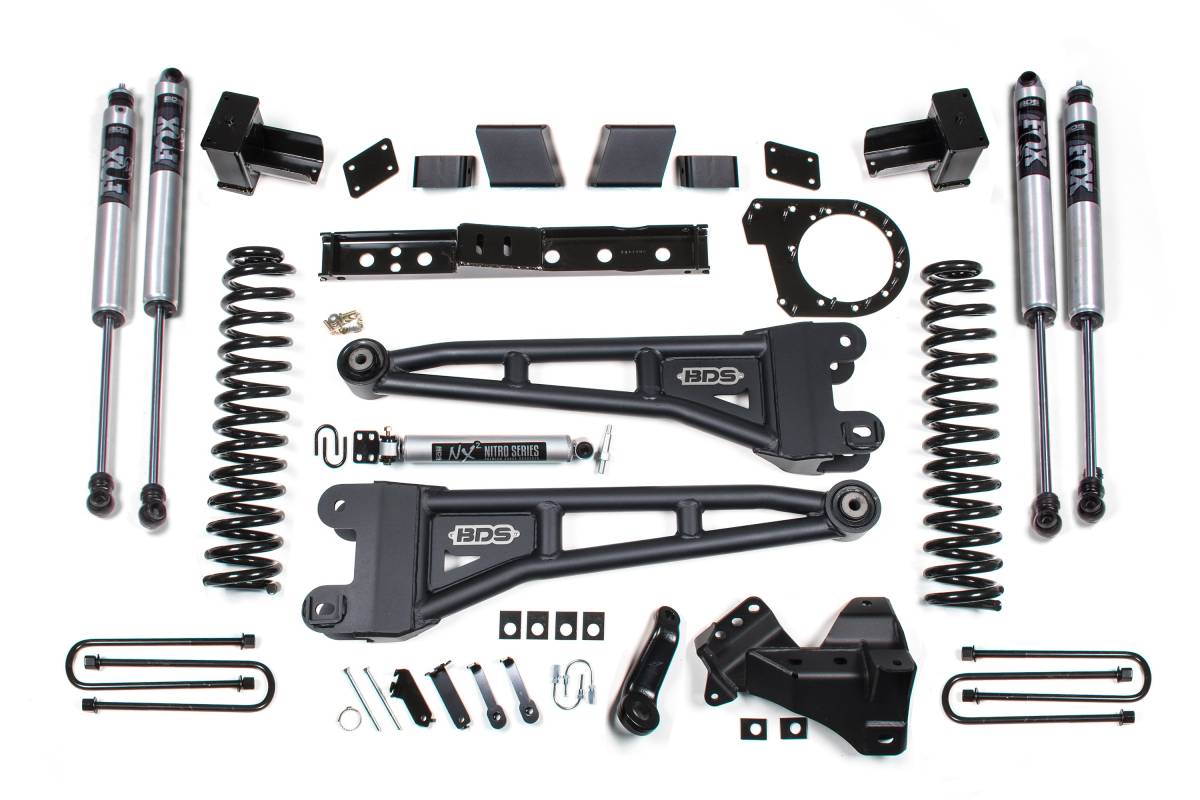

Configured for trucks with a 3-leaf main rear leaf spring pack and upgraded with FOX 2.0 Performance Series shocks. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

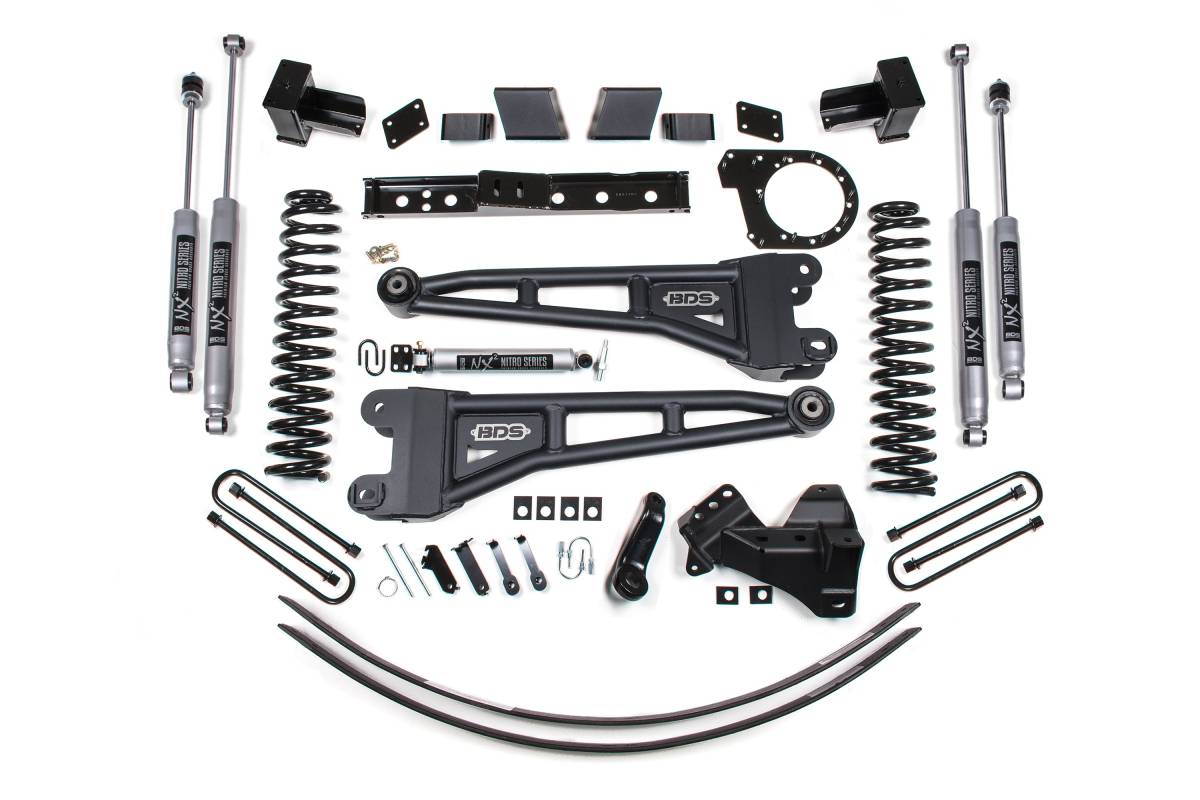

This 6-inch radius arm lift kit from BDS Suspension is designed for 2017–2019 Ford Super Duty F250 and F350 diesel trucks. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 38-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and custom-tuned nitrogen-charged shocks. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses a high-strength fabricated lift block, longer U-bolts, brake line brackets, and a matched set of shocks.

Features

• 100% bolt-on installation
• Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
• Heavy-duty tubular steel radius arms that correct caster and maximize ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide a level stance from front to rear
• Precision-built transfer case indexing ring featuring ARP studs to clock the transfer case and improve front driveline operating angle
• High-clearance transmission crossmember included for sufficient driveline clearance
• Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks with vehicle-specific valving

Specifications

• Lift Height: 6 inches
• Rear Lift: 5-inch fabricated steel lift block
• Coil Springs: Full-length diesel-specific Pro-Ride dual-rate design
• Radius Arms: High-strength tubular steel with caster adjustment and OE-style rubber frame-mount bushing
• Transfer Case Indexing Ring: Precision-built with ARP studs
• Tire Clearance: Up to 38 inches
• Fitment: SRW (Single Rear Wheel) models only

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Tools Required: 30mm Socket, 40mm Socket, Basic Hand Tools, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller

Important Notes

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (pn# 123402).
• 38 x 13.50 tires may require minor trimming.
• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• If your truck is equipped with a factory rear sway bar, add rear sway bar links (pn# 123808).
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
• Fits SRW models only.
