Configured with NX2 Nitro Series shocks. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.
Overview

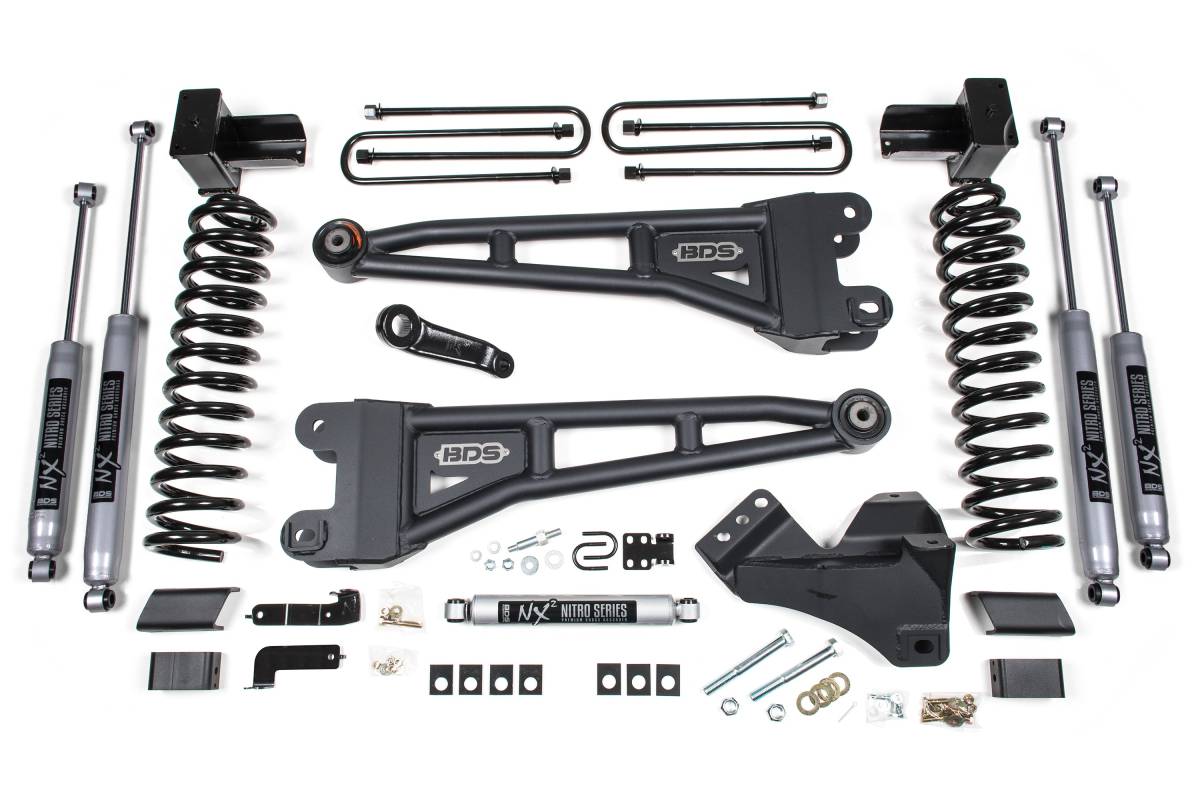

This 4-inch radius arm lift kit from BDS Suspension is designed for 2017–2019 Ford F350 Dually (DRW) Super Duty gas trucks with 4WD. The kit improves stance, performance, and capability, providing clearance for up to 37-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and nitrogen-charged shocks. In the rear, the kit uses a high-strength fabricated lift block, longer U-bolts, brake line brackets, and a matching set of shocks.
The heavy-duty tubular radius arms mount into the factory location, offer caster adjustment across a range of lift heights, and use an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. The full-length, gas-specific Pro-Ride coil springs provide the correct lift height and a smooth, predictable ride across varied terrain. Steering geometry is corrected via a forged drop pitman arm paired with a heavy-duty track bar drop bracket to keep the steering components in phase through suspension travel and recenter the front axle.
Features
- 100% bolt-on installation
- Pro-Ride dual-rate coil springs for improved ride across various terrains
- Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and drop pitman arm maintain proper steering angles for improved handling
- Fabricated steel rear lift blocks provide a level stance from front to rear
- Provides clearance for up to 37-inch tires
- Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks with vehicle-specific valving
Specifications
- Lift Height: 4 inches
- Vehicle Fitment: 2017–2019 Ford F350 Super Duty DRW (Dually) 4WD Gas
- Front Lift: Gas-specific Pro-Ride dual-rate coil springs
- Radius Arms: High-strength tubular steel with OE-style rubber frame bushing and caster adjustment
- Steering Correction: Forged drop pitman arm and heavy-duty track bar drop bracket
- Rear Lift: High-strength fabricated steel lift block with longer U-bolts
- Tire Clearance: Up to 37 inches
- Includes: Sway bar relocation hardware, brake line brackets (front and rear)
Installation
- Estimated Time: 8 hours
- Difficulty: Difficult
- Tools Required: Basic hand tools, drill and bit set, jack and jack stands, pitman arm puller, reciprocating saw, torque wrench capable of 405 ft-lbs
Important Notes
- Removal of the factory leaf spring block is required. Net rear lift will vary depending on the height of the factory block but will result in a level stance.
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
- Front exhaust modification may be required to clear the front drive shaft (Gas Only).
- A torque wrench capable of 405 ft-lbs is required.
- 37 x 12.50 tires may require minor trimming.
