BDS 7 Inch Radius Arm Lift Kit | Ford F250/F350 Super Duty Diesel (2020-2022) 4WD | 6 Inch Block Kit | NX2 Nitro Series

This configuration pairs a 6 Inch Block Kit rear lift with NX2 Nitro Series shocks. The NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish with vehicle-specific valving for improved control.

Overview

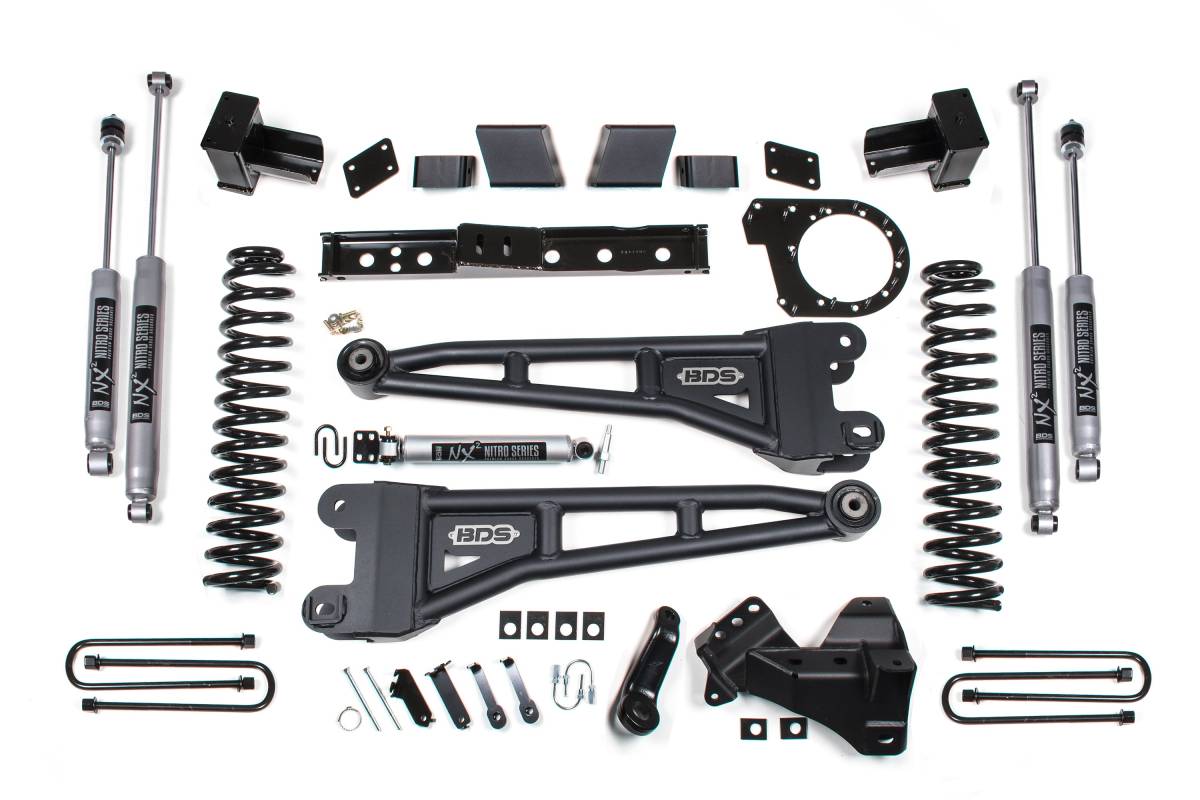

This 7-inch radius arm lift kit from BDS Suspension is designed for 2020–2022 Ford F-250/F-350 Super Duty diesel trucks (4WD, SRW). The kit provides clearance for up to 38-inch tires and includes everything needed for a complete front and rear lift. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and custom-tuned nitrogen-charged shocks. A transfer case indexing ring featuring ARP studs and a new high-clearance transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. The rear of the truck is lifted using either a fabricated steel block kit or replacement leaf springs, depending on the configuration selected, along with longer U-bolts, brake line brackets, and a matched set of rear shocks.

Features

• 100% bolt-on installation
• Diesel-specific Pro-Ride dual-rate coil springs for front lift and ride quality across various terrains
• Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and forged drop pitman arm maintain proper steering angles
• Sway bar relocation hardware and brake line brackets included
• Transfer case indexing ring with ARP studs to clock the transfer case and improve front driveline operating angle
• High-clearance transmission crossmember for sufficient driveline clearance
• Rear lift available as a fabricated steel block kit or replacement leaf springs (depending on variant selected)
• Compatible with up to 38-inch tires
• Shock options available: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite

Specifications

• Lift Height: 7 inches (front); rear lift height matched via block kit or leaf springs
• Rear Block Kit: High-strength fabricated steel lift block with longer U-bolts
• Rear Leaf Springs: Cast iron construction; multi-leaf progressive design; maintains factory payload weight ratings; corrects pinion angles; reduces axle wrap
• Radius Arms: High-strength tubular steel; mounts in factory location; caster adjustable; OE-style rubber bushing at frame mount
• Transfer Case Indexing Ring: Precision-built; ARP studs; compatible with 10-speed transmission trucks only
• Fitment: 2020–2022 Ford F-250/F-350 Super Duty 4WD Diesel, SRW models only
• Maximum Tire Size: 38 inches

Installation

• Estimated Time: 6–8 hours
• Difficulty: Difficult
• Tools Required: 30mm Socket, Basic Hand Tools, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller, Torque Wrench capable of 405 ft-lbs

Important Notes

• Ford recommends replacement of the pitman arm nut after each time it has been removed. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a factory rear sway bar, add: BDS123808.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not achieve the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on the stock wheels are not recommended due to brake line clearance requirements. Use the recommended specs listed in the wheel and tire fitment section.
• The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing.
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• The indexing ring has not been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). BDS recommends having this recall performed prior to installing the lift.
• Fits SRW models only.
