BDS 7 Inch Lift Kit w/ Radius Arm | FOX 2.5 PE Coil-Over Conversion | Ford F250/F350 Super Duty (2020-2022) 4WD Diesel | Block Kit & FOX 2.0 Performance Series Rear

This configuration pairs a Block Kit rear lift with FOX 2.0 Performance Series rear shocks. The FOX 2.0 rear shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving. The fabricated steel lift block provides a level stance from front to rear.

Overview

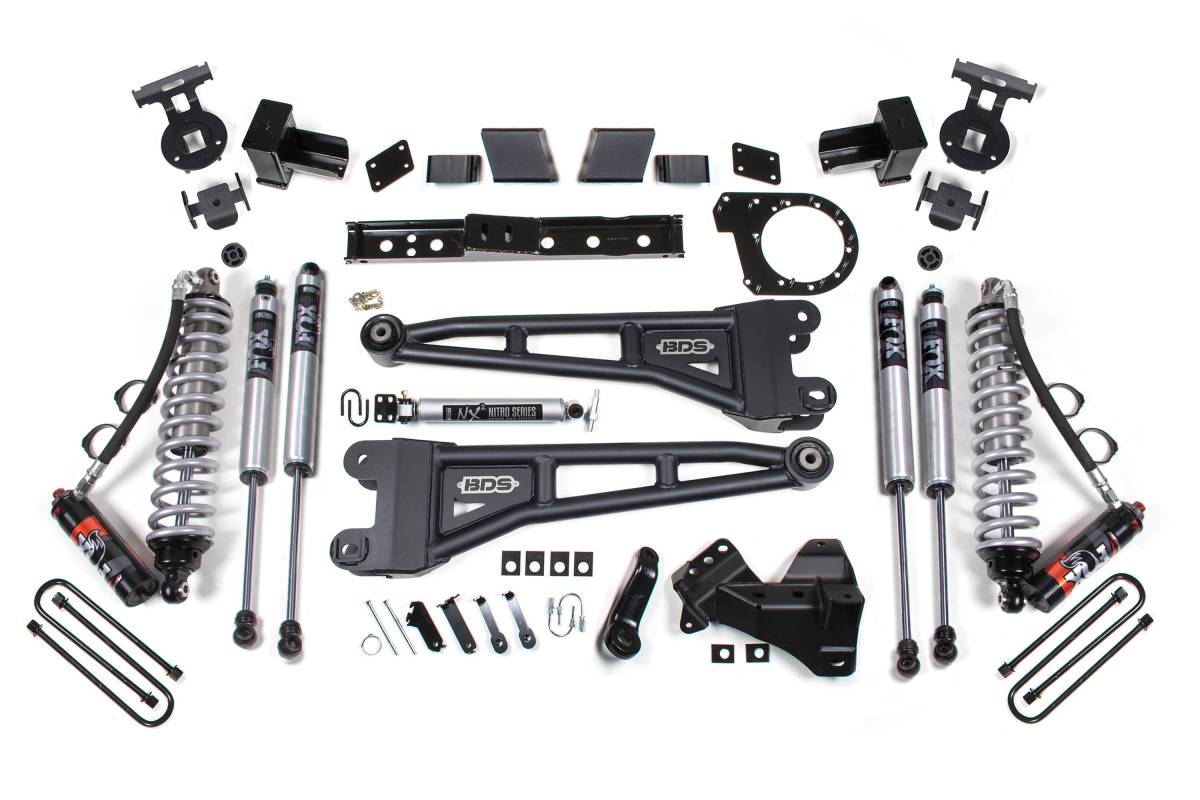

This 7-inch radius arm lift kit with FOX 2.5 Performance Elite coil-over conversion is designed to improve the stance, performance, and capability of Ford F250/F350 Super Duty diesel trucks (2020–2022, 4WD), providing clearance for up to 38-inch tires. Up front, the kit includes FOX 2.5 coil-over shocks mounted in the factory coil bucket location, a secondary FOX 2.0 shock for maximum performance, heavy-duty tubular steel replacement radius arms, forged drop pitman arm, track bar relocation bracket for steering correction, sway bar relocation, and brake line brackets. A transfer case indexing ring featuring ARP studs and a new high clearance transmission crossmember are included to allow use of the factory front driveshaft at this lift height. Rear lift options include either a fabricated steel block kit or multi-leaf progressive leaf springs, paired with either FOX 2.0 Performance Series or FOX 2.5 Performance Elite rear shocks, along with longer U-bolts and brake line brackets.

The FOX 2.5 Performance Elite coil-over shocks are tuned and ready to install out of the box. These 2.5-inch diameter shocks include an external remote reservoir for additional fluid capacity and a black anodized aluminum reservoir to increase cooling efficiency. The DSC (Dual Speed Compression) adjuster provides 10 separate low-speed and 12 high-speed compression levels for precise tuning.

The heavy-duty tubular radius arms mount into the factory location, offer caster adjustment across a wide range of lift heights, and use an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. The precision-built transfer case indexing ring clocks the transfer case to improve the front driveline operating angle.

Features

• FOX 2.5 coil-over mounts in factory coil bucket location
• Adds secondary FOX 2.0 shock for maximum performance
• Eibach coil springs for a smooth ride through rough terrain
• Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear (Block Kit option)
• Multi-leaf progressive rear leaf springs — smooth ride, factory payload rating maintained (Leaf Spring option)
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments
• Transfer case indexing ring with ARP studs for improved front driveline operating angle
• High clearance transmission crossmember for sufficient driveline clearance
• Clearance for up to 38-inch tires

Specifications

• Lift Height: 7 inches
• Front: FOX 2.5 Performance Elite coil-over shocks with remote reservoir and DSC adjuster
• Front secondary: FOX 2.0 Performance Series shocks
• FOX 2.5 body: 2.5-inch impact extruded aluminum, 7/8-inch hard chrome plated heat-treated alloy steel shaft
• FOX 2.0 body: 2-inch impact extruded aluminum, 5/8-inch hard chrome plated heat-treated alloy steel shaft, IFP monotube design, CNC machined 6061-T6 aluminum mounting ends
• DSC Dual Speed Compression Adjuster: 10 low-speed levels, 12 high-speed compression levels
• Radius arms: High-strength tubular steel with OE-style rubber frame bushing
• Pitman arm: Forged drop design
• Transfer case indexing ring: Precision-built with ARP studs
• Fits SRW (Single Rear Wheel) models only
• Compatible with 10-speed transmission trucks only (indexing ring)
• FOX shocks: 1-year Manufacturer's Warranty

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Special Tools Required: Pitman arm puller; torque wrench capable of 405 ft-lbs

Important Notes

• Ford recommends replacement of the pitman arm nut after each removal. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a factory rear sway bar, add: BDS123808.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on the stock wheels are not recommended due to brake line clearance requirements. Use recommended specs listed in the wheel and tire fitment section.
• The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing.
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• The indexing ring has NOT been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). BDS recommends having this recall performed prior to installing the lift.
• Fits SRW models only.
