BDS 4 Inch Lift Kit | 4-Link Conversion | 2017-2019 Ford F250/F350 Super Duty 4WD Gas | Leaf Springs w/ NX2 Nitro Series

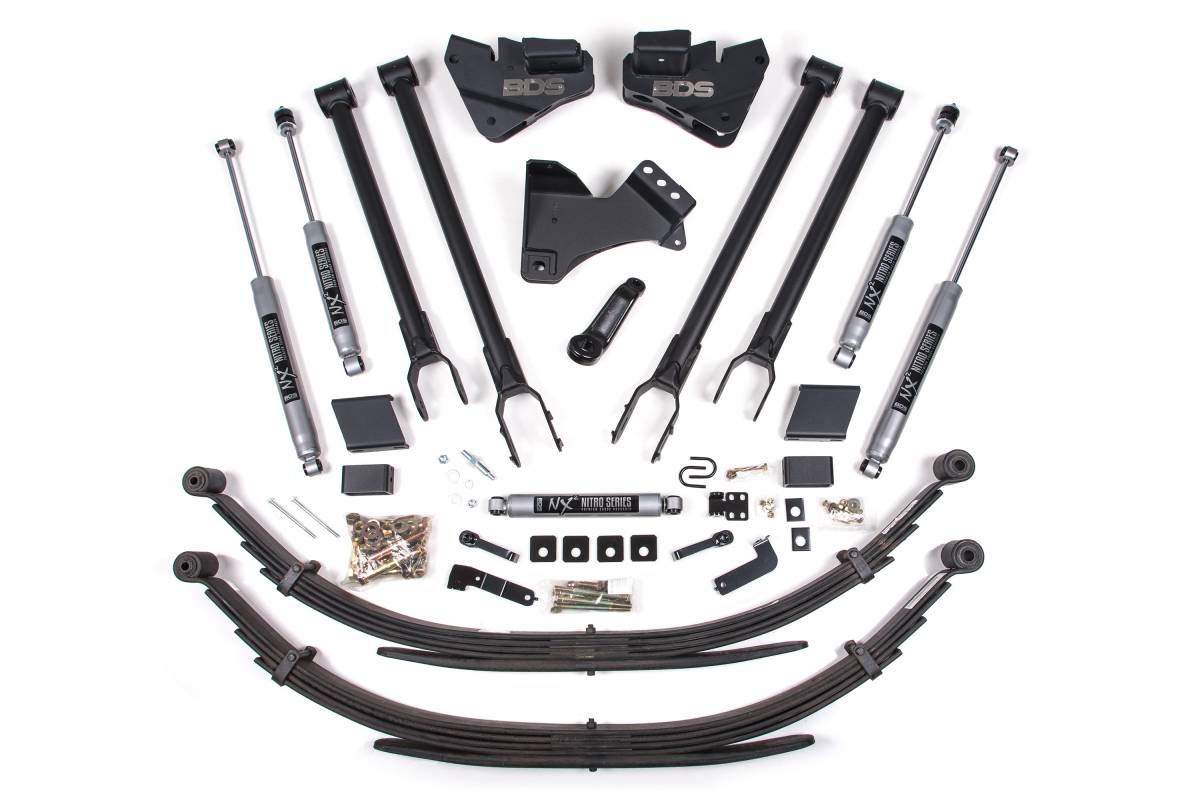

Rear lift provided by a full replacement GlideRide leaf spring pack — multi-leaf progressive design, maintains factory payload ratings, reduces axle wrap, and features anti-friction pads for a smooth, quiet ride. Shocks: NX2 Nitro Series — nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, and silver powder coat finish.

Overview

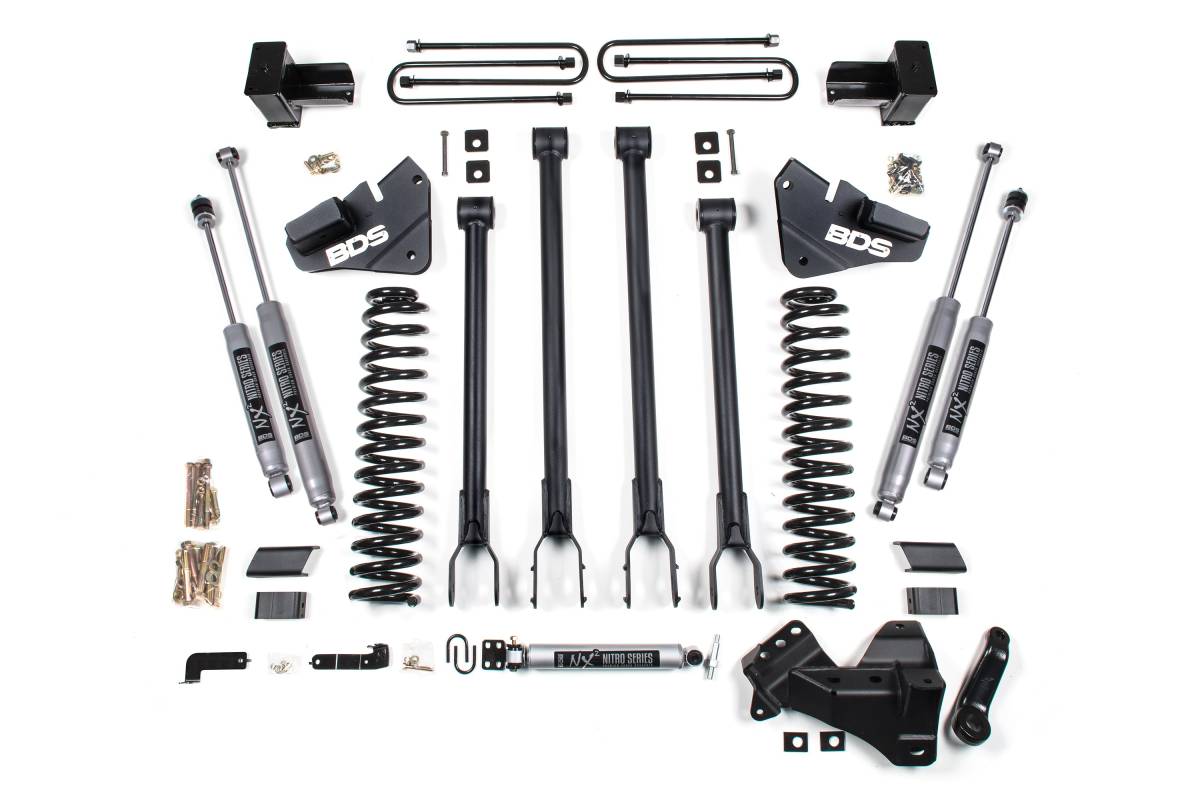

This 4 inch lift kit for the 2017–2019 Ford F250/F350 Super Duty 4WD (Gas, SRW) includes a 4-Link front conversion along with your choice of rear lift option and shock upgrade. The front 4-Link conversion provides additional strength and caster control during wheel travel. Rear lift is available either as a high-strength replacement lift block (retaining original spring rates) or as a full GlideRide replacement leaf spring pack designed for improved on/off-road performance and increased load capacity with a built-in overload leaf.

Features

• ProRide front dual-rate coil springs to achieve front lift height
• 4-Link conversion for additional strength and caster control during wheel travel
• Forged pitman arm and HD track bar bracket to correct steering angle and axle positioning
• Rear lift block or GlideRide rear leaf spring options to level stance and retain load capacity
• NX2 gas, FOX 2.0 IFP, or FOX 2.5 Performance Elite shock options to improve ride and off-road performance

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Special Tools Required: Pitman Arm Puller

Important Notes

Block kit option will fit both 2 and 3 leaf main trucks. Fits SRW models only.
