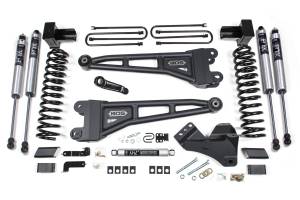

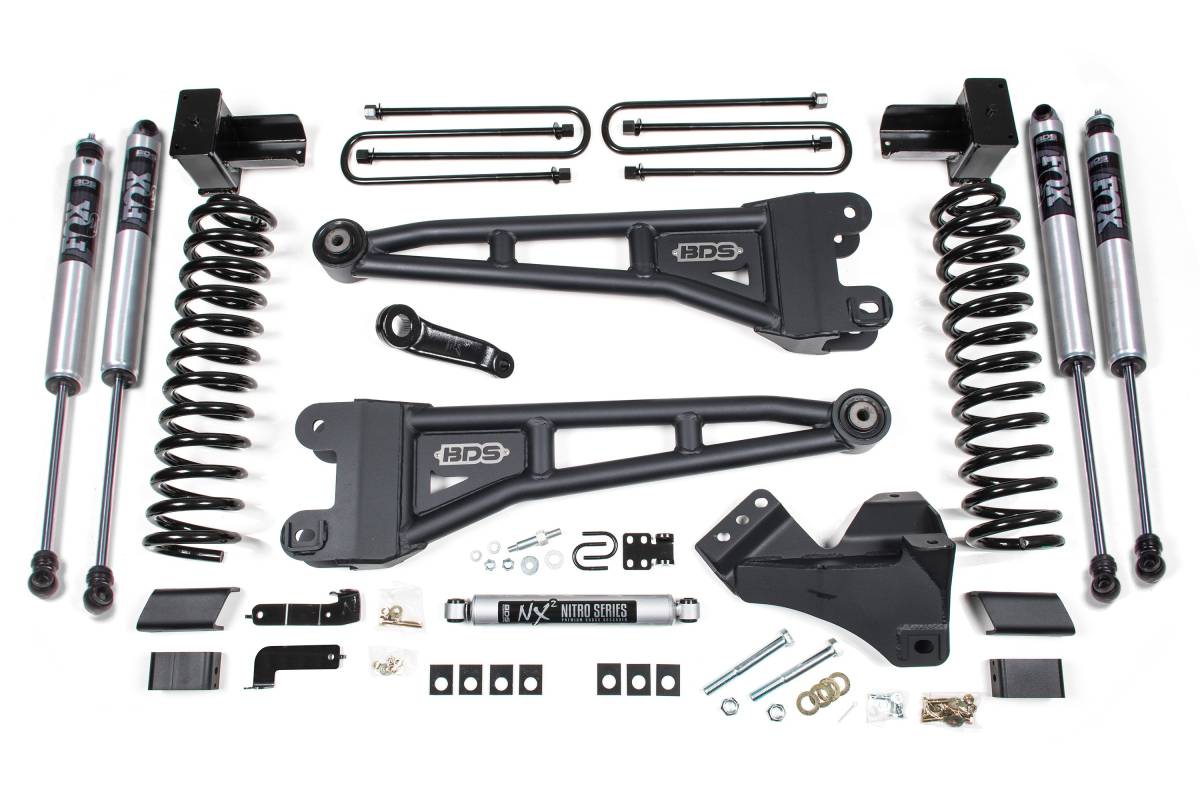

Configured with FOX 2.0 Performance Series shocks front and rear. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview
This 5-inch radius arm lift kit from BDS Suspension is designed for 2020–2022 Ford F-250/F-350 Super Duty diesel trucks (4WD, SRW models). The kit improves stance, performance, and capability, providing clearance for up to 37-inch tires. Up front, it includes diesel-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block, longer U-bolts, brake line brackets, and a matched set of shocks.
Features
- 100% bolt-on installation
- Pro-Ride dual-rate, diesel-specific coil springs for correct lift height and smooth, predictable ride across various terrains
- Heavy-duty tubular steel radius arms mount in factory locations with caster adjustment and OE-style rubber frame-mount bushings for smooth, quiet, service-free operation
- Track bar relocation bracket and forged drop pitman arm maintain proper steering geometry through suspension travel and re-center the front axle
- Fabricated steel rear lift blocks provide a level stance from front to rear
- Includes vehicle-specific shock valving for better ride and control
- Shock upgrade options available: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite
- Brake line brackets and sway bar relocation hardware included
Specifications
- Lift Height: 5 inches
- Maximum Tire Size: Up to 37 inches
- Radius Arms: High-strength tubular steel, factory mounting location, caster adjustable
- Coil Springs: Full-length, dual-rate, diesel-specific Pro-Ride design
- Rear Lift Method: Fabricated steel lift block with longer U-bolts
- Fitment: 2020–2022 Ford F-250/F-350 Super Duty, 4WD, Diesel, SRW only
Installation
- Estimated Time: 6–8 hours
- Difficulty: Difficult
- Tools Required: Basic hand tools, die grinder, jack / jack stands, pitman arm puller, torque wrench capable of 405 ft-lbs
Important Notes
- Ford recommends replacement of the pitman arm nut each time it has been removed.
- If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8" — UBT4027 (Qty: 4) — is required.
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If the truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
- Larger tires on stock wheels are not recommended due to brake line clearance requirements. Use recommended specs listed in the wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Some trucks with rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). BDS recommends having this recall performed prior to installing the lift.
- Fits SRW (Single Rear Wheel) models only.
