Overview

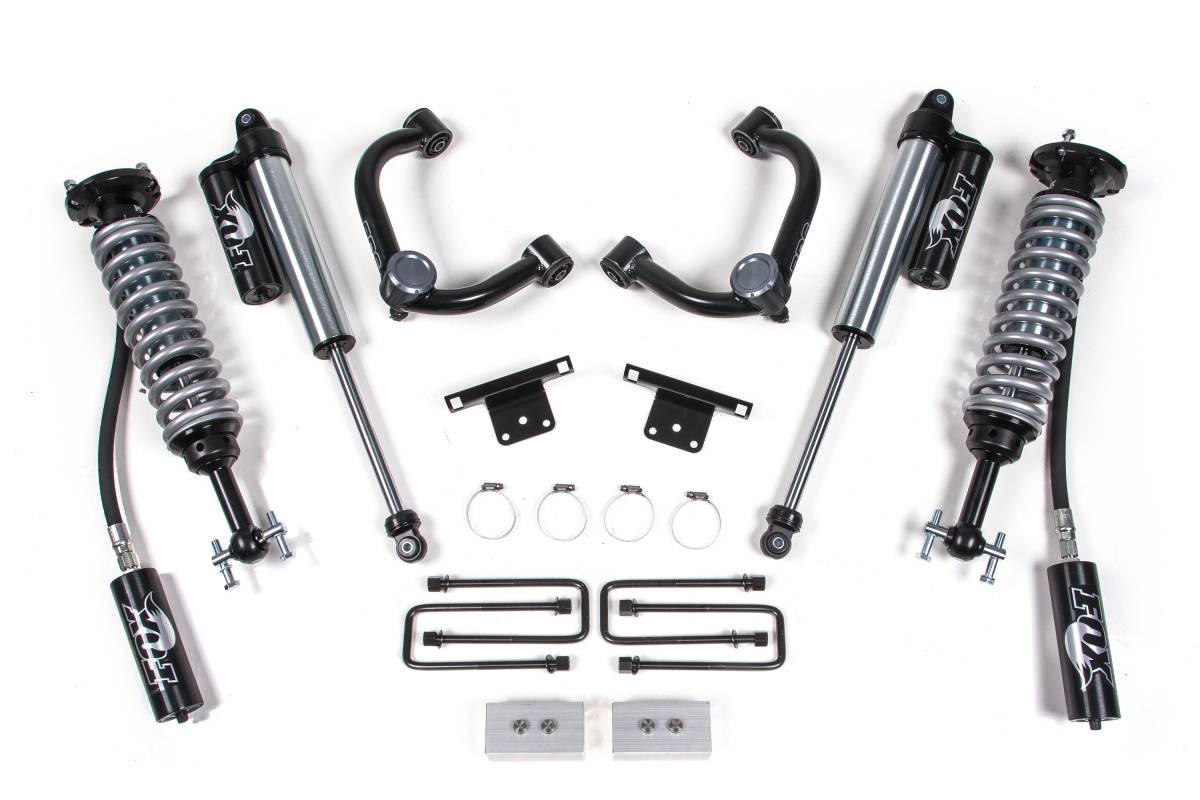

This 2-inch lift kit for the 2014–2020 Ford F150 4WD combines FOX Factory Series 2.5 coil-over shocks with heavy-duty tubular upper control arms to improve stance, performance, and off-road capability. The kit includes everything needed to lift your truck and provides clearance for up to 35-inch tires. Up front, FOX 2.5 Factory Series remote reservoir coil-over shocks and HD upper control arms handle the lift. In the rear, a complementary set of FOX 2.0 Performance shocks delivers a smooth ride.
Features
- FOX 2.5 Factory Series coil-over shocks designed for increased travel and the ability to soak up rough terrain
- DSC adjuster provides precise tuning with 10 separate low-speed and 12 high-speed compression levels via two adjuster knobs
- Remote reservoir increases fluid capacity and cooling efficiency with a black anodized aluminum housing
- HD upper control arms provide superior strength and proper alignment
- 1.5" OD x .120-wall tubular UCA construction with indexed ball joint cup for correct positioning, additional down travel, and camber adjustment
- Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
- Greaseable ball joints for smooth, quiet operation and superior durability
- UCAs finished in durable black powder coat with billet aluminum dust cap
- Adjustable height to fine-tune lift level and achieve a level stance front to rear
- 100% bolt-on installation
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments
Specifications
- Lift Height: 2–3.5"
- Front Lift Method: Coil-Over
- Front Lift Height: 2"
- Rear Lift Method: Block
- Rear Lift Height: 2"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 3 hours
- Installation Difficulty: Moderate
- Tools Required: Cut-off Tool, Reciprocating Saw
Important Notes
Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009–13 model kits. Will not fit HD models (7 Lug).
