BDS 2 Inch Leveling Kit | 2019-2023 Ford Ranger 4WD | w/ NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks featuring vehicle-specific valving for better control and a factory-like ride quality. NX2 shocks include a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

This 2-inch leveling kit from BDS Suspension is specially designed for the 2019-2023 Ford Ranger 4WD. It levels the front of the truck while engineering for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To prevent maxing out ball joints or CV damage, BDS uses a 2-piece design combining a smaller top-mounted steel strut spacer with a preload spacer. The kit includes steel top mount strut spacers, a pre-load spacer, and custom-tuned shocks available in NX2 Nitro or FOX 2.0 Performance Series configurations.

Features

• Easy, 100% bolt-on installation
• Maintains factory-like ride quality
• 2-piece strut spacer design prevents ball joint overextension and CV damage

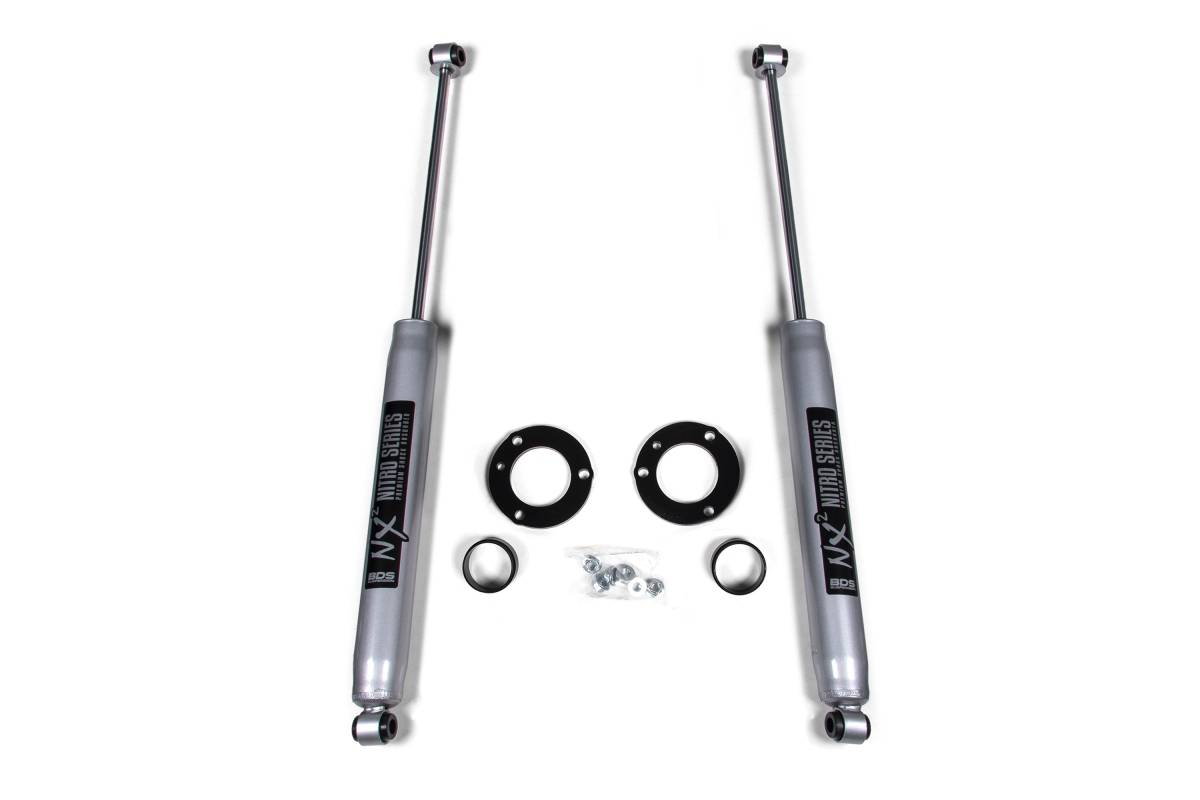

• Includes steel top mount strut spacers and pre-load spacer
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Installation

• Estimated Time: 3 hours
• Difficulty: Moderate
• Tools Required: 35mm Axle Nut Socket, Strut Compressor

Important Notes

Aftermarket wheels must have a minimum of 93.1mm center hub bore.
