BDS 8 Inch 4-Link Lift Kit w/ FOX 2.5 Performance Elite Coil-Over Conversion | 2017-2019 Ford F250/F350 Super Duty 4WD Diesel

Overview

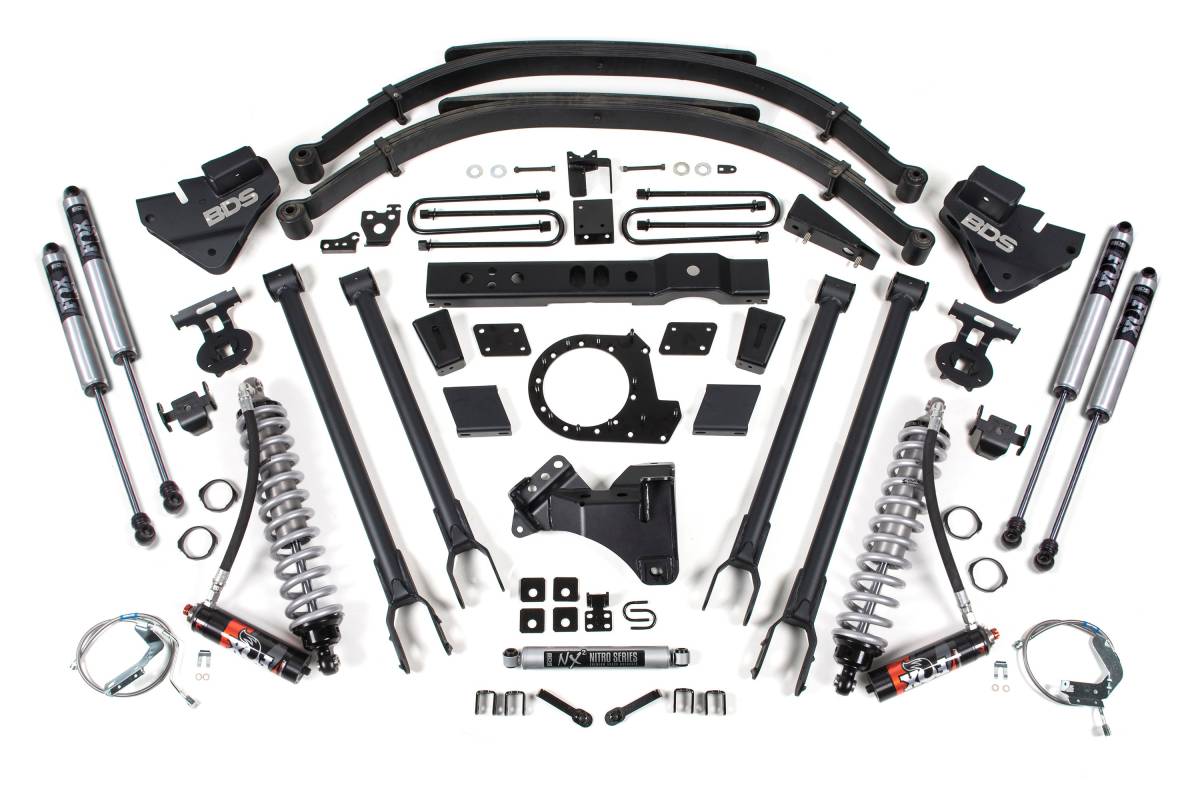

This 8-inch 4-Link lift kit with FOX 2.5 Performance Elite coil-over shocks is engineered for 2017–2019 Ford F250 and F350 Super Duty diesel trucks. Designed to improve stance, performance, and capability, the kit includes everything needed to accommodate up to 40-inch tires. Up front, the kit features diesel-specific FOX 2.5 coil-overs, a 4-Link control arm conversion, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned FOX nitrogen-charged secondary shocks. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses full-replacement BDS Glideride leaf springs, u-bolts, brake line brackets, and a matching set of FOX Performance shocks.

4-Link Conversion

The BDS 4-Link system converts the factory stamped steel radius arms to optimize suspension geometry for improved handling characteristics while adding strength and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets to mount HD upper and lower control arms, correcting axle positioning and limiting caster change throughout wheel travel.

FOX 2.5 Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks deliver on-road comfort and off-road capability. Tuned and ready to install out of the box, these 2.5-inch diameter shocks include a remote reservoir for additional fluid capacity to maintain consistent performance in rough terrain. The DSC adjuster provides 10 separate low-speed and 12 high-speed compression levels via two adjuster knobs, with a black anodized aluminum reservoir for increased cooling efficiency.

T-Case Indexing

A precision-built transfer case indexing ring featuring ARP studs clocks the transfer case to improve the front driveline operating angle and allow use of the factory driveshafts at this lift height. A high-clearance transmission crossmember is also supplied for sufficient clearance.

Features

• FOX 2.5 Coil-Over mounts in the factory coil bucket location
• Adds an additional secondary FOX 2.0 shock for maximum performance
• Eibach coil springs for smooth ride through rough terrain
• Heavy-duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs provide full lift height and increased capacity with a built-in overload spring
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specifications

• Front Lift Method: Coil-Over
• Front Lift Height: 8"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 7"
• Lift Height Range: 8–10"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 12 hours
• Installation Difficulty: Difficult

Important Notes

• The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
• If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402).
• 40x13.50 tires WILL require trimming.
• If your truck is equipped with a factory rear sway bar, add BDS123808.
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
• Fits SRW models only.
