BDS 4 Inch Lift Kit | FOX 2.0 Performance Series | Ford F150 (2015-2020) 4WD

Configured with FOX 2.0 Performance Series rear shocks. The FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, and a large 5/8-inch hard chrome plated heat-treated alloy steel shaft with race-developed high-flow piston design and application-specific valving.

• 2-inch impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving
• Clear anodized finish

Overview

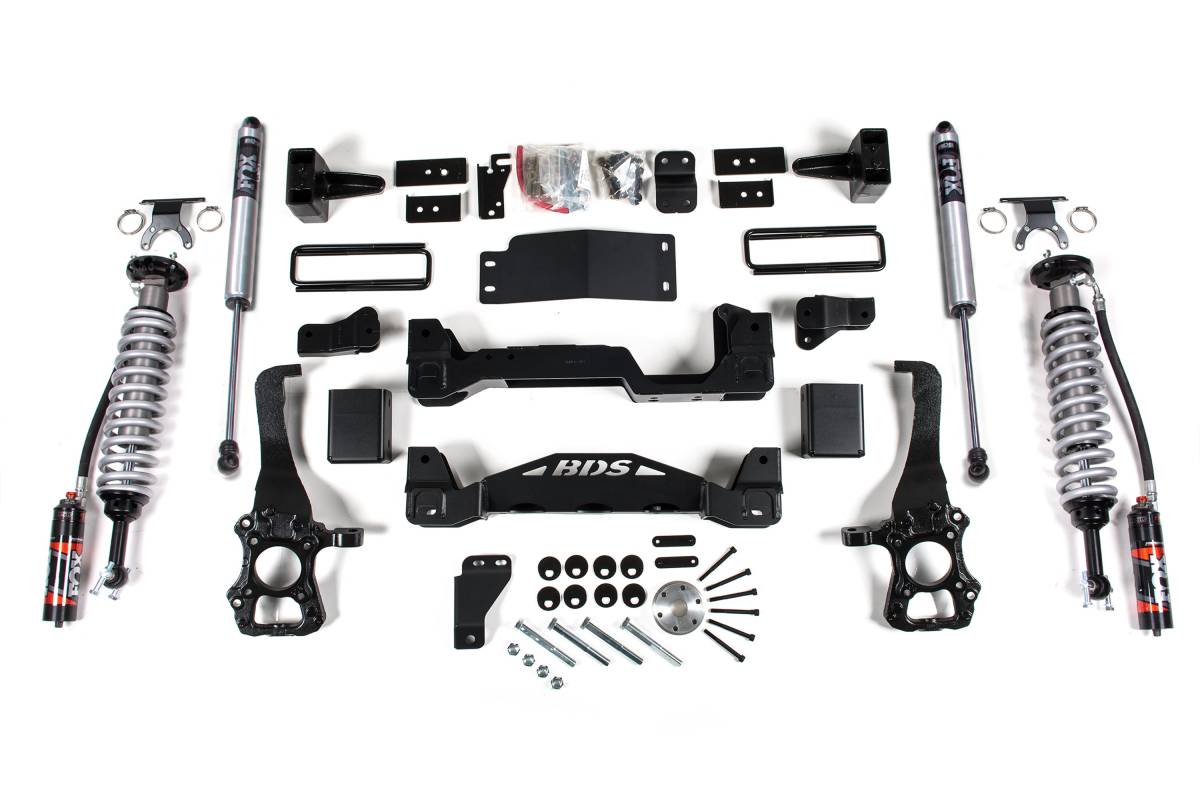

These 4-inch coil-over suspension lift kits are engineered for the 2015–2020 Ford F150 4WD and provide clearance for up to 35-inch tires. The kit takes advantage of BDS's high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for on-road handling. Up front, the kit utilizes FOX 2.5 remote reservoir coil-over shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and a skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of CNC-machined ductile iron steering knuckles, sway bar relocation brackets, brake line brackets, and alignment cam bolts. In the rear, high-strength fabricated lift blocks and longer U-bolts lift and level the stance, paired with FOX rear shocks.

Features

• FOX 2.5 coil-over shocks designed specifically for increased travel and the ability to soak up rough terrain while maintaining on-road comfort
• DSC (Dual Speed Compression) adjuster with 10 separate low-speed and 12 high-speed compression levels for precise tuning
• High-clearance 1/4-inch thick laser-cut steel crossmembers for improved strength and off-road capability
• Heavy-duty CNC-machined ductile cast iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers for lift and easy installation
• Differential skid plate for improved off-road protection
• Rear lift blocks and U-bolts to lift and level the stance

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Crossmember Thickness: 1/4-inch thick laser-cut steel
• Steering Knuckles: CNC-machined ductile cast iron
• FOX 2.5 shock body diameter: 2.5 inches
• FOX 2.5 shaft: 7/8-inch hard chrome plated heat-treated alloy steel
• FOX 2.0 shock body diameter: 2-inch impact extruded aluminum
• FOX 2.0 shaft: 5/8-inch hard chrome plated heat-treated alloy steel

Installation

• Estimated Time: 10 hours
• Difficulty: Difficult
• Tools Required: Cut-off Tool, Reciprocating Saw

Important Notes

• Requires frame bracket modification.
• 18-inch wheels with 5–5.5 inches total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle.
• 18-inch or larger diameter wheels are required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels can be used with up to 305/60-20 tires.
• The 4-inch blocks will net a level/tail LOW stance. The 5-inch blocks will net a level/tail HIGH stance.
• Will not fit HD models (7 lug).
